LIBERTY PDC-115 Indoor Duplex Pump Control System

Product Description

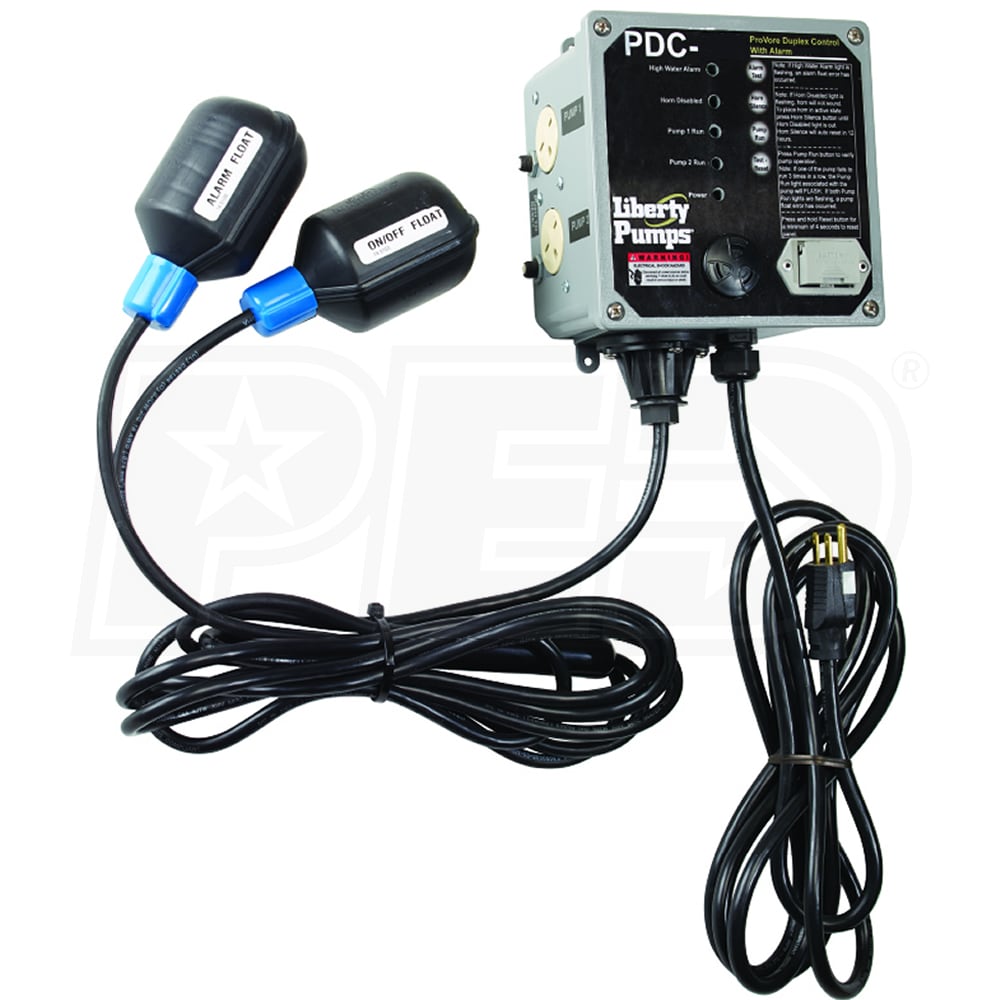

The LIBERTY PDC-115 is a control system for indoor use designed for duplex pump setups. It operates with 115V pumps up to 1 HP, ensuring balanced wear across pumps to enhance lifespan. This system includes both audible and visual alarms with a backup from a 9V battery. Equipped with two pre-wired float switches, it manages pump operation and alarms effectively.

• Handles duplex sump, sewage, effluent, or grinder systems.
• Provides alternating pump operation and comes with a six-hour run limiter.
• Features built-in alarm horn and external LED light for alerts.

Product Highlights

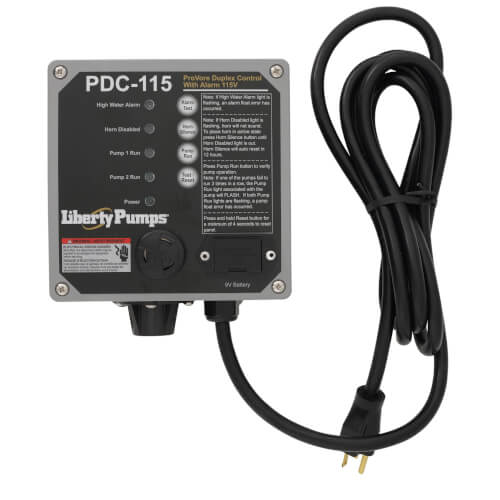

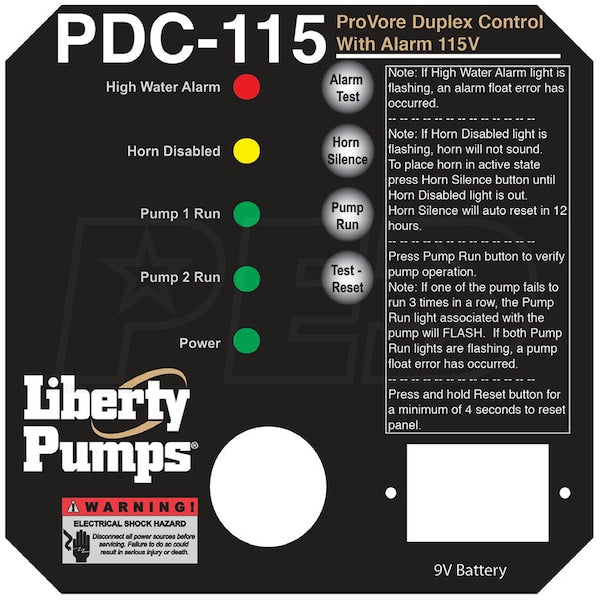

The control panel is user-friendly with LED indicators showing power and pump running status. Alarm testing and reset buttons are integrated into the design.

Product Information

Standard Information

• Brand: LIBERTY
• MPN: PDC-115

Technical Specifications

• Control Type: Duplex, alternating, non-simultaneous
• Input Voltage: 115V
• Operating Voltage: 120 Volt
• Maximum Current: 12 A
• Phase: 1
• Float Type: Tether Switch
• Number of Floats: 2 (On/Off & Alarm)
• Float Cord Length: 10 Feet
• Enclosure: Indoor NEMA 1
• Alarm: Built-in horn and external LED light, 9V battery backup
• Cord Length: 10 feet
• Product Length: 4.5 Inches
• Product Width: 6 Inches
• Product Height: 8 Inches
• Dimensions (Depth x Width x Height): 4.5 x 6 x 6
• Weight: 7 Pounds
• Consumer Warranty: 3 Years
• Commercial Warranty: 3 Years
