Liberty MUW Ascent II Macerator Unit

Product Description

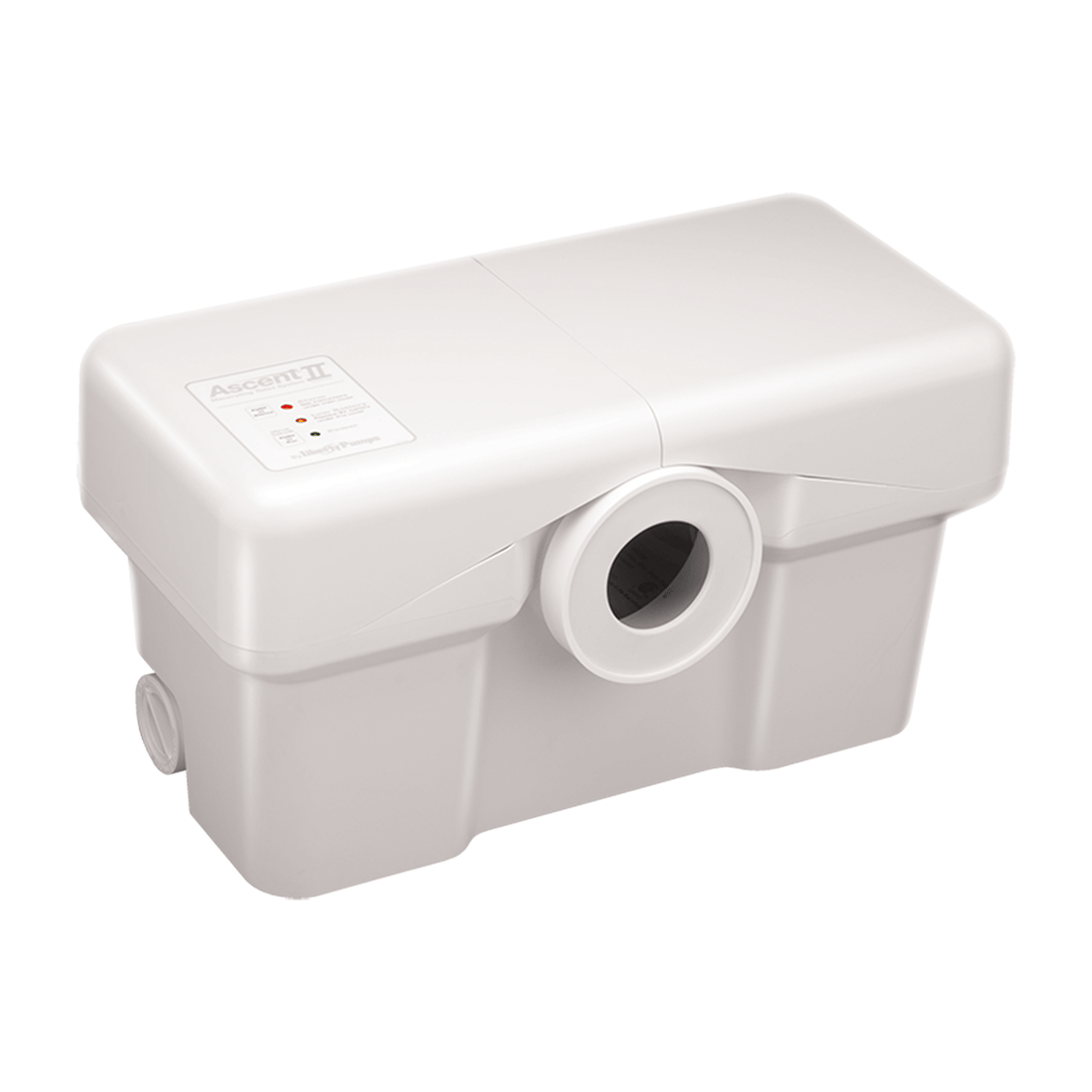

The Liberty Ascent II Macerator Unit MUW is designed for easy installation in bathrooms. This unit effectively pumps wastewater up to twenty-five feet vertically and one hundred fifty feet horizontally. It allows connections for a toilet, sink, shower, or tub.

• Equipped with stainless steel cutter blades.
• Features a built-in alarm with 9V battery backup.
• Includes auxiliary inlets for connecting additional fixtures.

Product Highlights

The Ascent II MUW is ideal for remodeling or adding bathrooms in locations where gravity drainage is not feasible.

Product Information

Standard Information

• Brand: Liberty
• MPN: MUW

Technical Specifications

• Product Category: Sump Pump
• Horsepower: 0.5 HP
• Input Voltage: 115/120 V
• Amperage: 7.9 A
• Frequency: 60 Hz
• Max Head: 36 Feet
• Max Flow: 42 GPM
• Discharge Port Size: 1 Inch
• Thermal Protection: Yes, with automatic reset
• Tank Material: ABS
• Power Cord Length: 8 Feet
• Dimensions: 20 Inches x 10 Inches x 10.875 Inches
• Weight: 22 Pounds
• Installation Type: Floor Mounted
• Requires Rear Discharging Toilet: Yes
• Vertical Pump Capability: 25 Feet
• Horizontal Pump Capability: 150 Feet with 1 Inch Pipe
