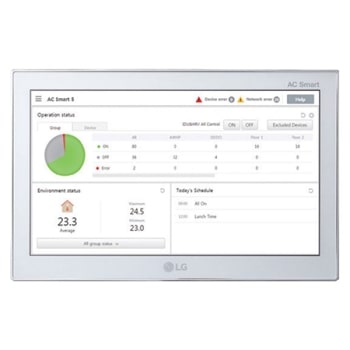

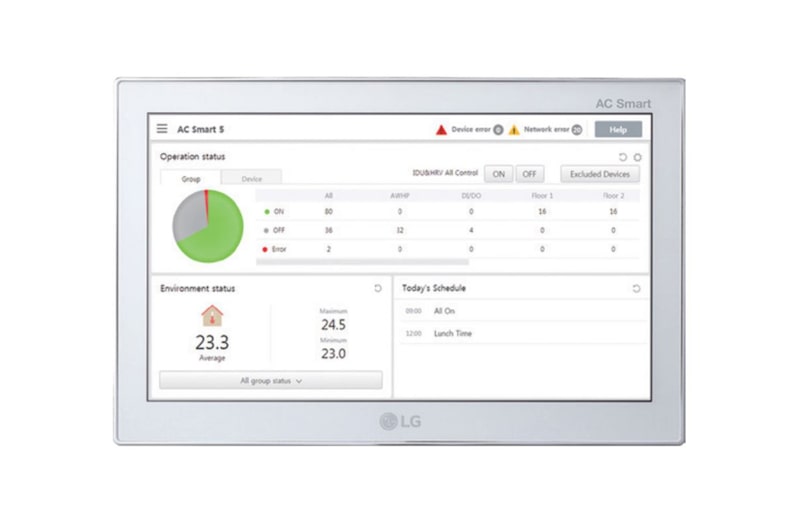

Lg PACS5A000 AC Smart 5 Central Control

Product Description

The LG PACS5A000 AC Smart 5 Central Control features a 10-inch touch screen with HTML5 GUI for user-friendly control. It manages up to 128 units, including IDUs, ERVs, Hydro Kits, AHU Kits, and commercial air purifiers. Energy consumption analysis helps avoid overconsumption and reduce operating costs. Visual navigation enables intuitive device control and monitoring on the floor plan view.

• 10-inch touch screen with HTML5 GUI for easy control
• Max. 128 IDU control
• Energy Management

Product Highlights

Provides centralized control and monitoring of HVAC systems, optimizing energy usage and offering intuitive management through a visual interface.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: PACS5A000
• Country of Origin: KR

Technical Specifications

• EAN: 0048231387538
• UPC: 048231387538
• Brand: LG
• Width: 12.6
• Height: 6.3
• Length: 5.31
• Prop 65: No
• Air Purify Control: O
• Advanced Function Setting and Display: Comfort Cooling / ODU Low Noise / ODU Defrost Mode / Comfort Level display / CO2 Level display (for ERV / ERV DX) / Night Time Free Cooling (for ERV / ERV DX)
• Air Quality Level: O
• Auto Changeover / Setback: O
• BMS Integration: BACnet IP / Modbus TCP
• Daylight Saving Time: O
• Emergency Stop & Alarm Display: O
• Energy Navigation (with PDI): O
• Error Check: O
• External IO Port: DI 2 / DO 2
• Individual Controller Lock: Temperature / Mode / Fan speed / All
• Individual / Group Control: On & Off / Mode / Temperature / Fan speed
• Interfaceable Products: MULTI V / ERV / ERV DX / Hydro kit / THERMA V / AHU Kit / LG Chiller / Commercial Air Purifier
• Interlock Control: O
• IPv6 Support: O
• Maximum number of units: 128
• ODU Capacity Control: O
• Operation Time Limit: O
• Operation Trend: O
• Power Consumption Monitoring (with PDI): O
• Schedule: Weekly / Monthly / Yearly / Exception day
• Size (W x H x D, mm): 253.2 x 167.7 x 28.9
• Slave Mode (Interlocking with higher level controller): O
• Temperature Limit: O
• Virtual Group Control: O
• Visual Navigation: O
• Web Access: O
