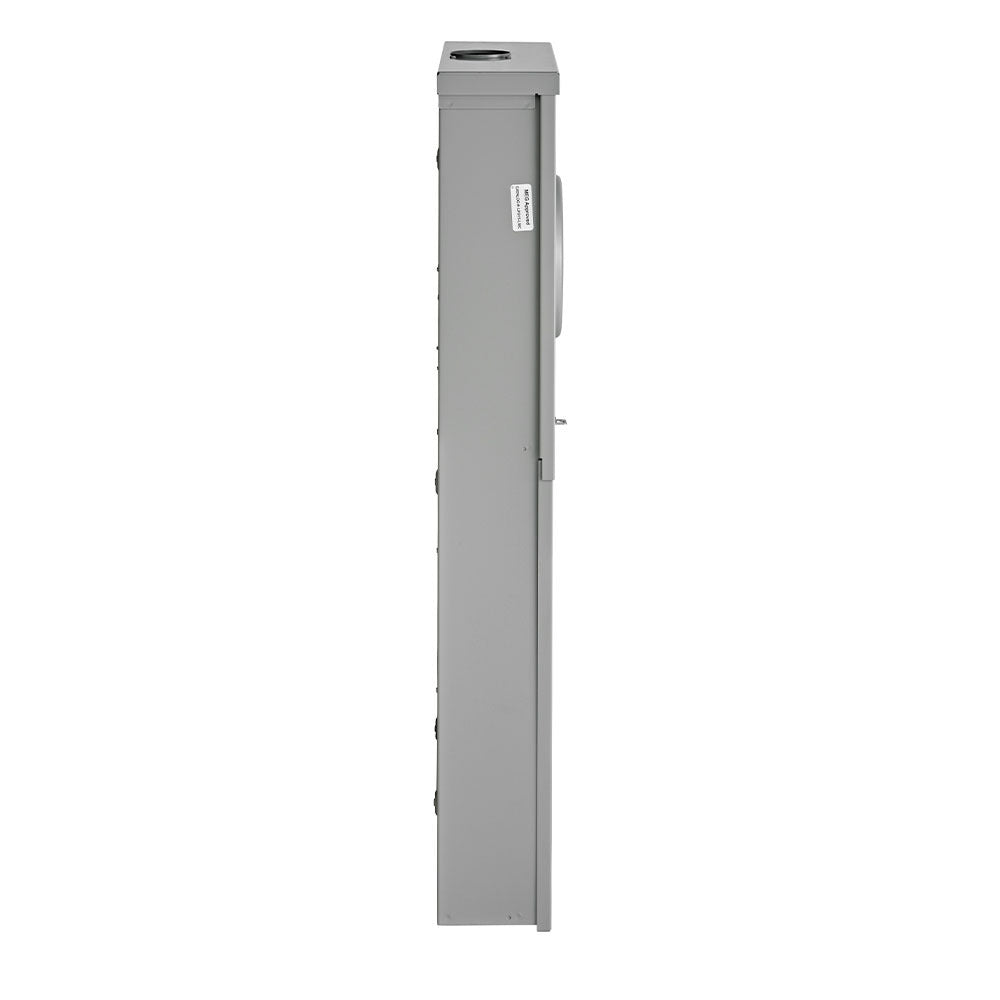

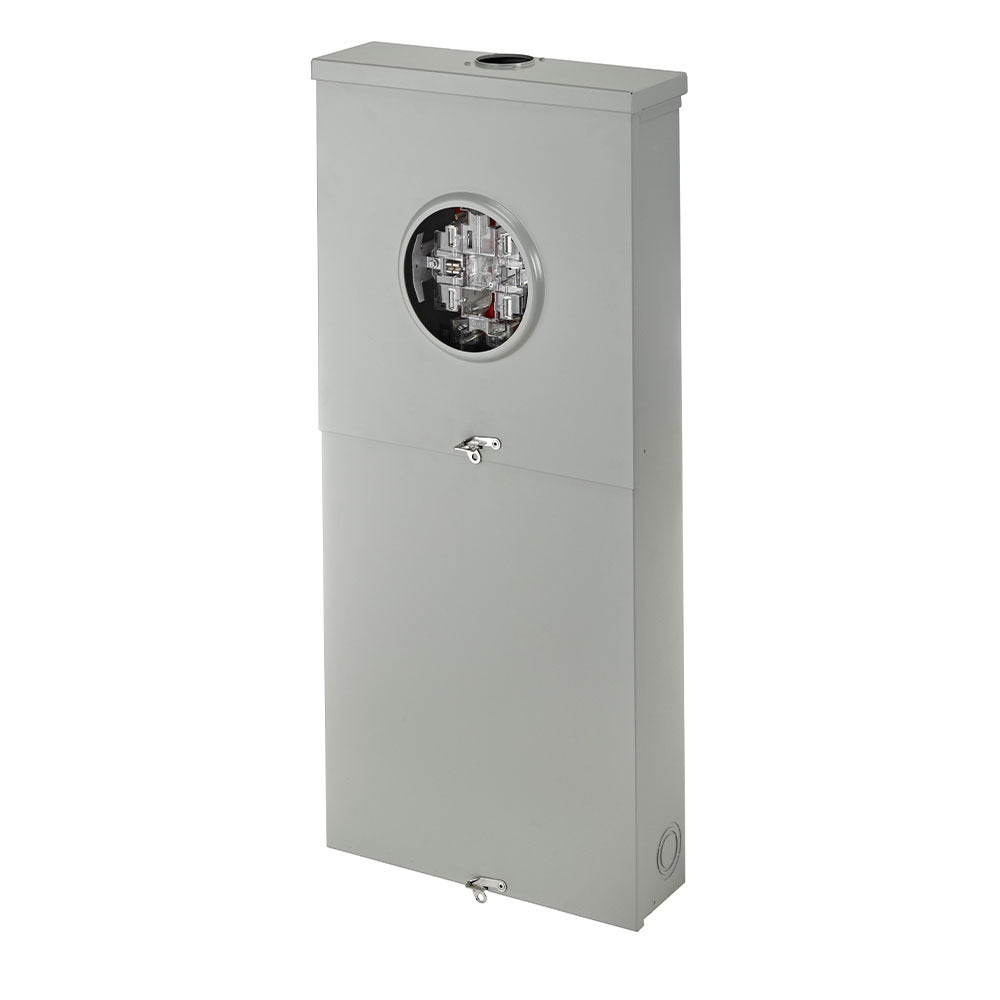

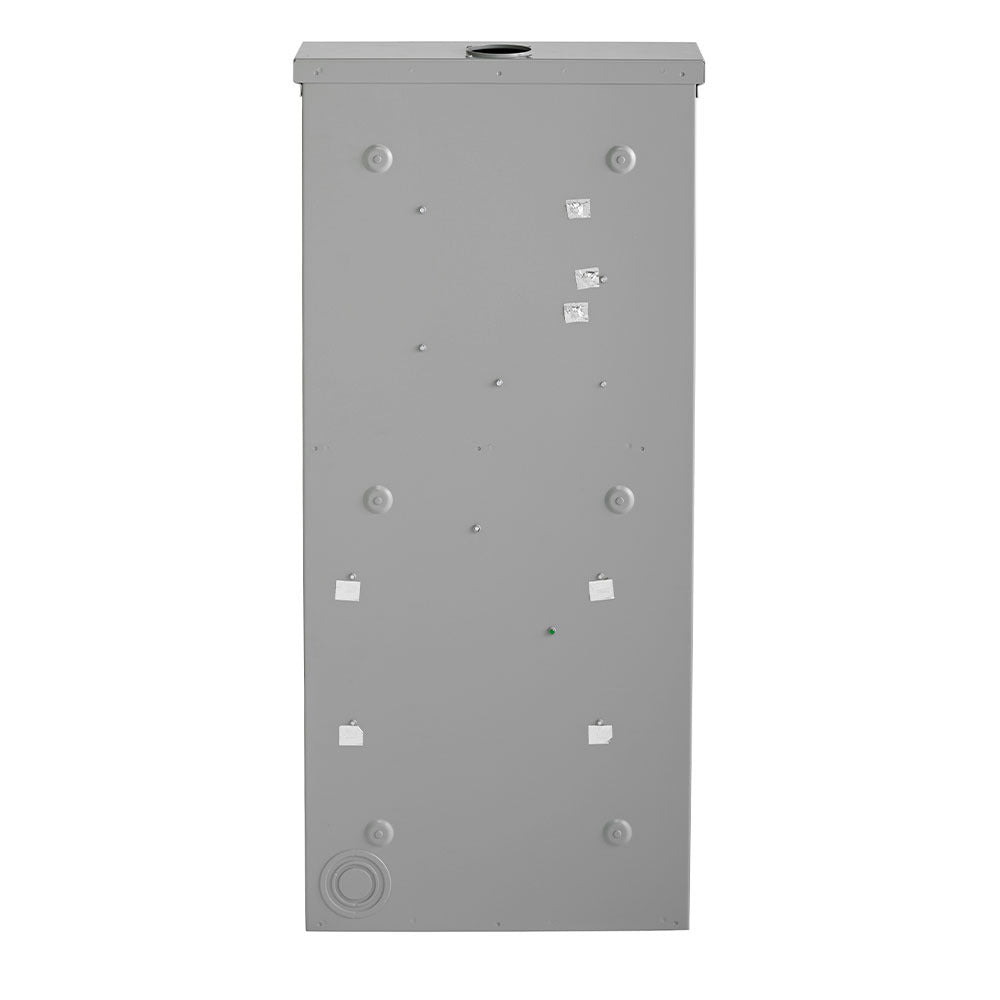

Leviton LS815-B5D MM Ringless Lever 5th Jaw 8SP 150A

Product Description

Leviton LS815-B5D is a meter main combo designed for outdoor applications. It comes with a 150A main circuit breaker and includes eight spaces for circuits. The unit is NEMA 3R rated, making it suitable for various environmental conditions.

• 150-Amp main circuit breaker
• Eight available circuit spaces
• NEMA 3R rated for outdoor use

Product Highlights

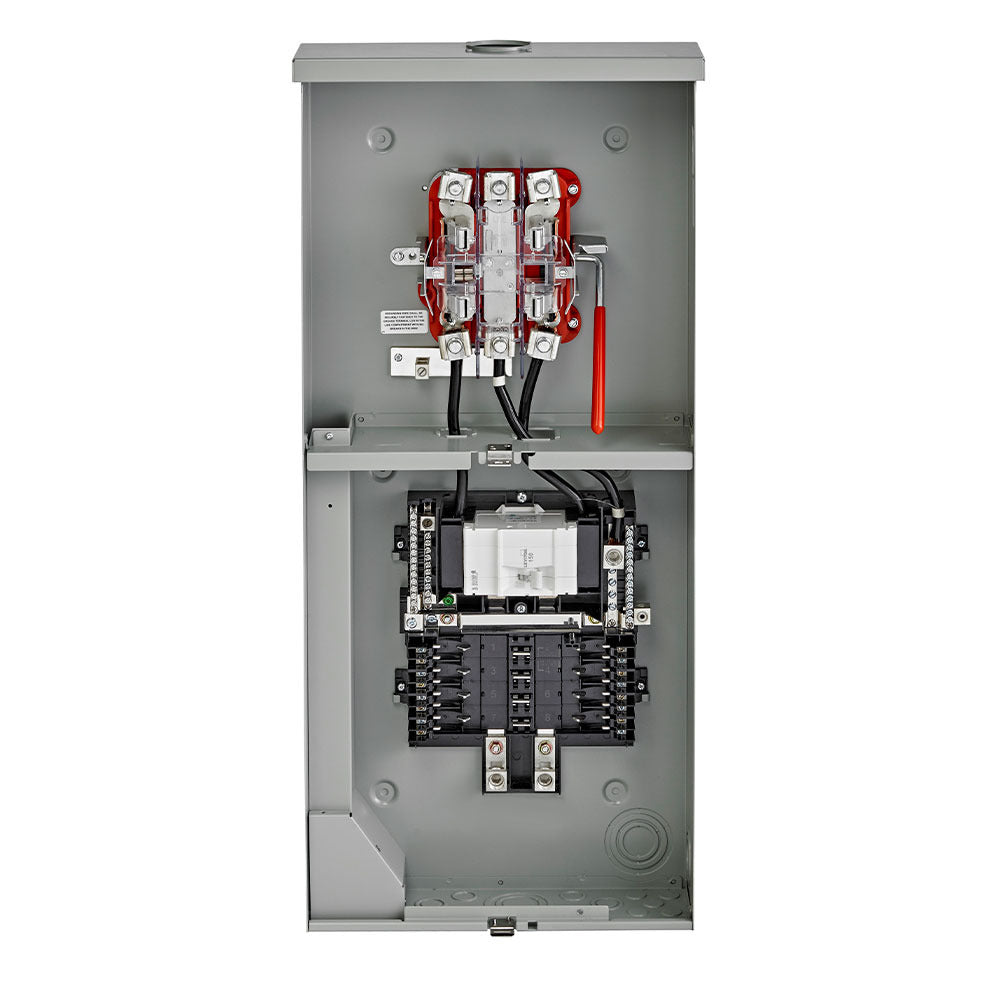

The Leviton LS815-B5D features a factory-installed main circuit breaker, a ringless door, and feed-thru lugs. Its design supports easy and organized wiring, making installations straightforward.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: LS815-B5D
• Manufacturer: Leviton
• Country of Origin: Mexico
• UPC: 078477217283

Technical Specifications

• Amperage: 150
• Short Circuit Current Rating: 22 kA
• Spaces: 8
• Voltage: 120/240V
• Enclosure Material: Galvanized Steel
• Dimensions: 36 inches H x 16.6 inches W x 5.2 inches D
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• NEMA Enclosure Type: NEMA 3R Outdoor
