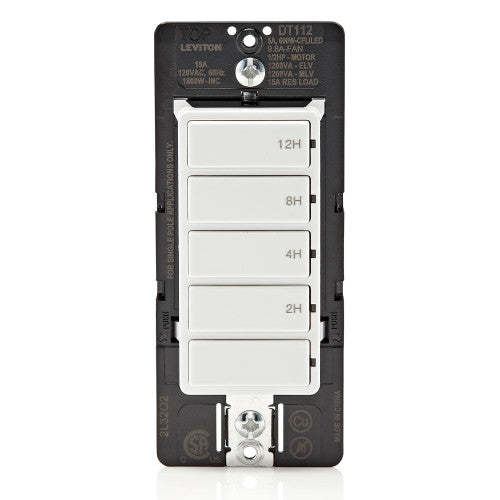

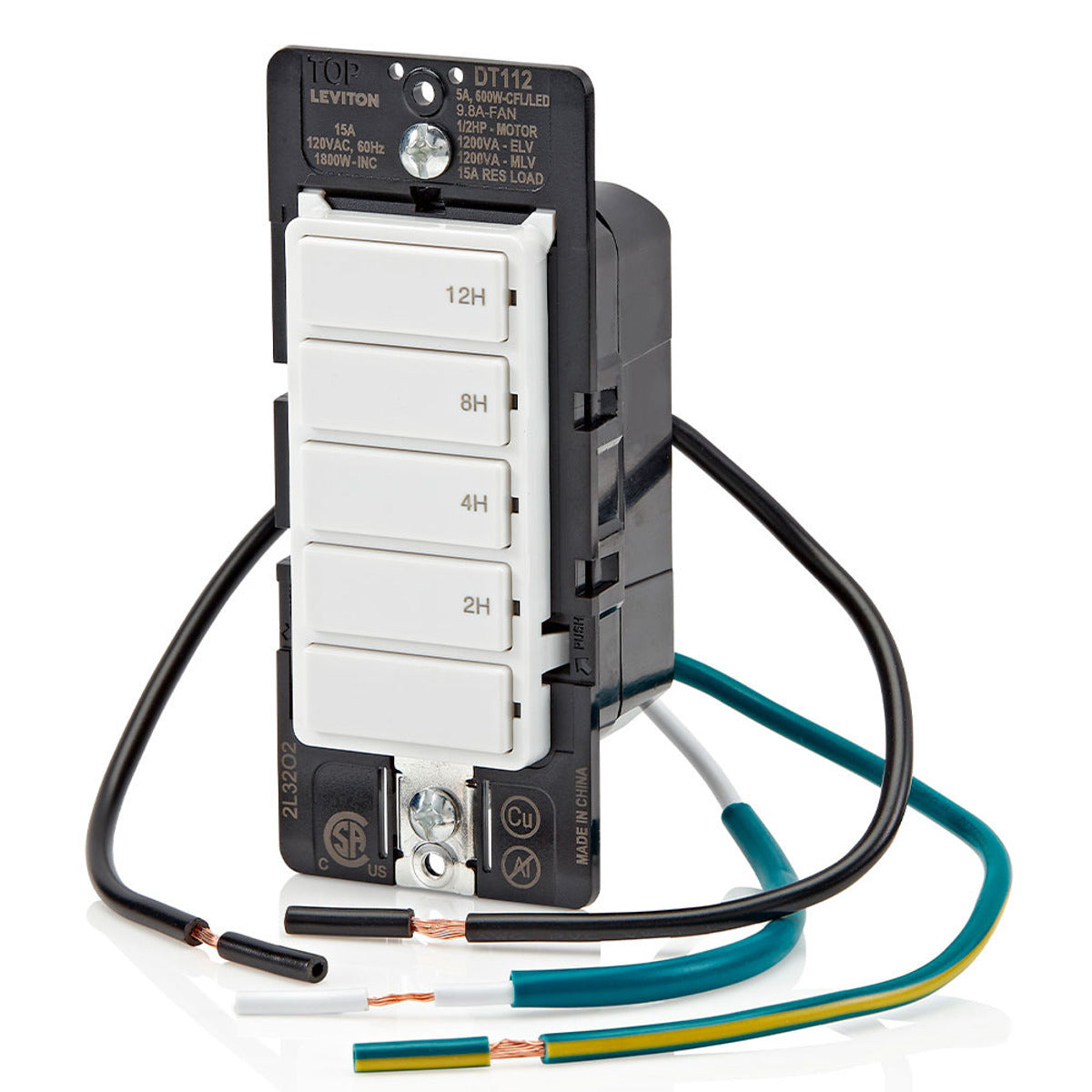

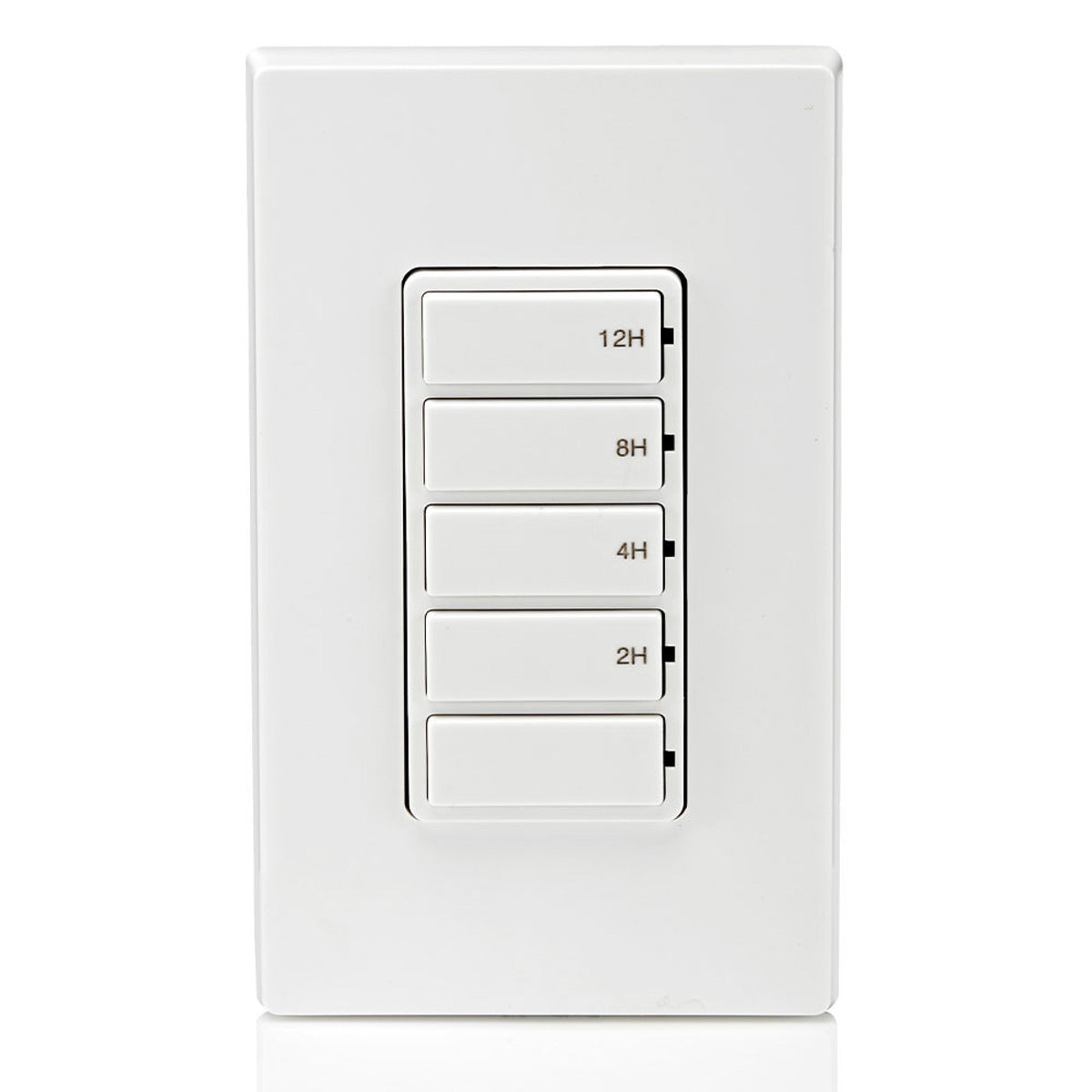

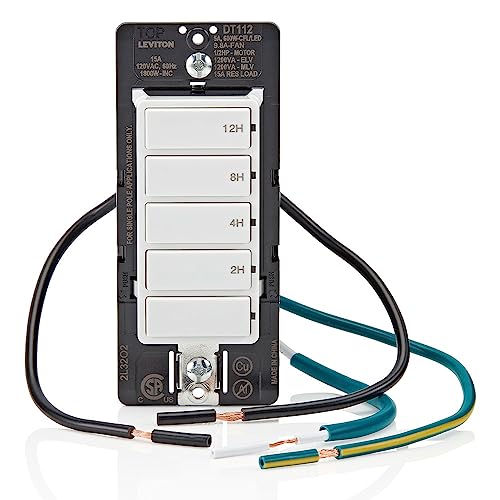

Leviton DT112-1LW Dec Timer 5-Key 15A (Single-Pole) DT112-1LW

Brand: LEVITON
SKU: DT112-1LW
Availability: In Stock

Ships same day if ordered by 12 pm
$88.71
$88.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton DT112-1LW is an in-wall countdown timer switch that provides preset timed control for lighting, fans, heaters, and other loads. The device offers 2, 4, 8 and 12 hour preset countdown options, operates as a single-pole 15 A switch and supports motor loads up to 1/2 HP (9.8 A). It installs in a standard wallbox and can be wired without a neutral where required.

  • Single-pole 15 A countdown timer with five push-button positions: 2, 4, 8, 12 hours and OFF
  • Rated 15 A resistive; supports 1/2 HP (9.8 A) fan/motor loads; wattage ratings: 600W LED/CFL, 1800W incandescent/halogen, 1200 VA MLV/ELV/fluorescent
  • No neutral required installation option (uses Green Flex Sleeve to ground when neutral is not present); leaded terminals and shallow design fit standard wallboxes

Product Highlights

In-wall Decora-style 15 A countdown timer; 2/4/8/12 hour presets; supports multiple lighting and motor load types; no neutral required option; zero cross turn-on technology.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: DT112-1LW
  • Country of Origin: China
Technical Specifications
Brand
Leviton
Model / MPN
DT112-1LW
Product Type
In-wall countdown timer switch
Pole
Single pole
Amp Rating
15 A
Load Rating
15 A resistive; 1/2 HP / 9.8 A fan/motor
Timer Options
2, 4, 8, 12 hours (preset countdown)
Neutral Required
No (Green Flex Sleeve connects to ground when neutral not present)
Compatible Loads
LED, CFL, incandescent, halogen, magnetic low-voltage, electronic low-voltage, fluorescent, motor loads
Special Technology
Zero cross turn-on technology
Terminal Type
Leaded terminals; wire lead connectors / screw terminal
Operating Voltage
120 V AC
Wattage Ratings
600W LED/CFL; 1800W incandescent/halogen; 1200 VA MLV/ELV/fluorescent
Mounting Type
Wall mount, fits standard wallbox
Dimensions
4.13 x 1.73 x 1.34 inches
Contact Type
Normally Open
Number of Buttons
5 (2h, 4h, 8h, 12h, OFF)
Certifications
CSA, FCC, IC
IP Rating
IP00
Country of Origin
China
UPC
078477264317
GTIN
00078477264317
