Product Description

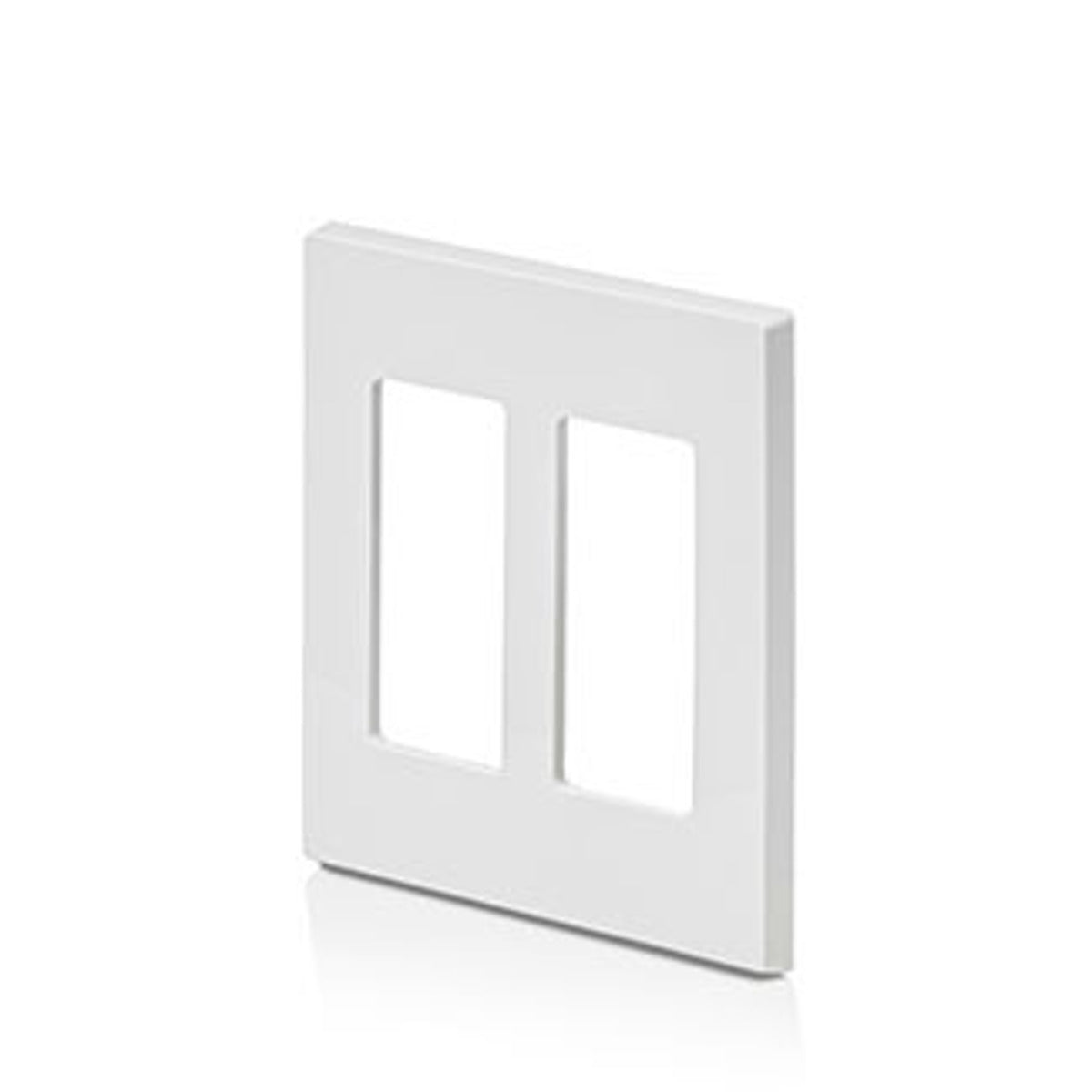

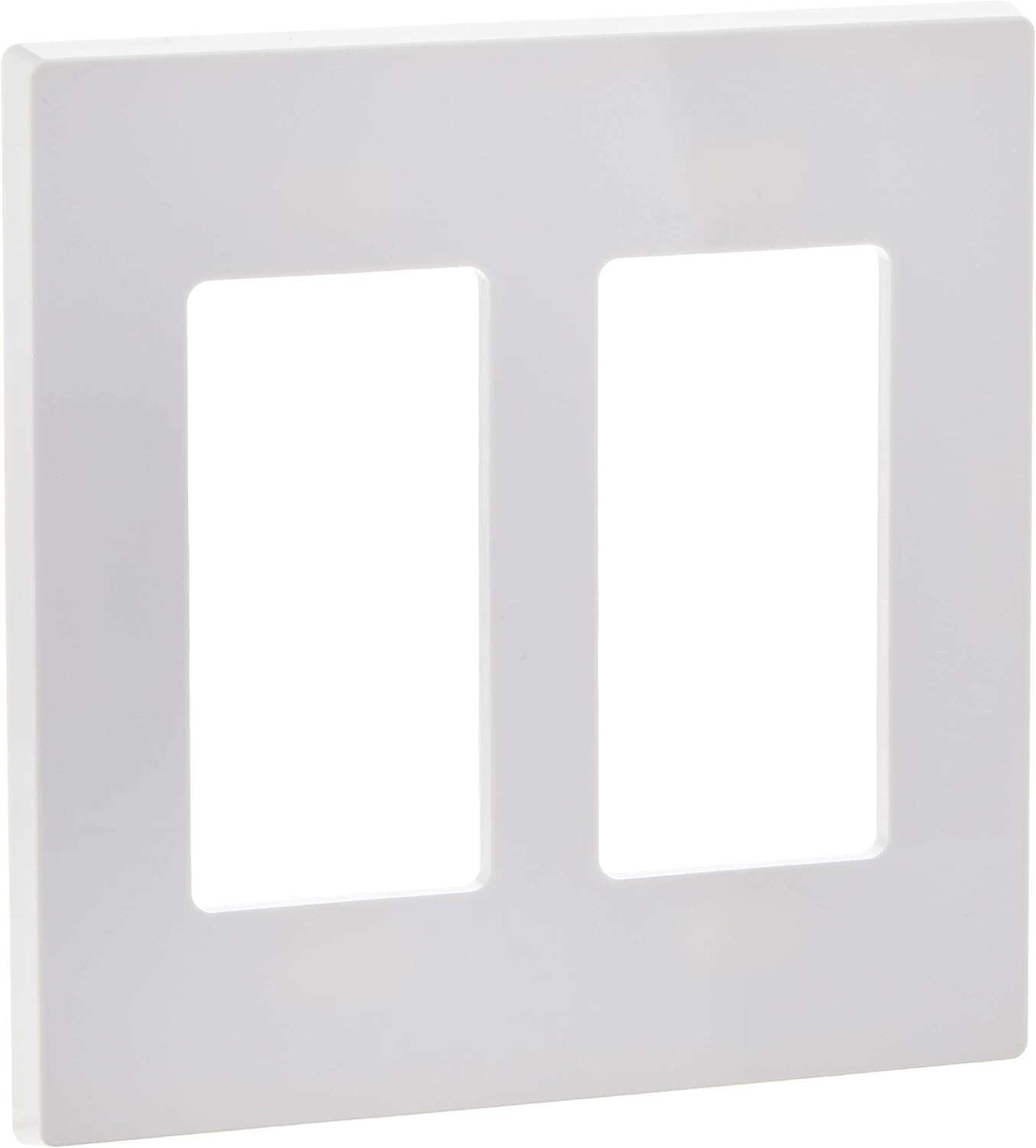

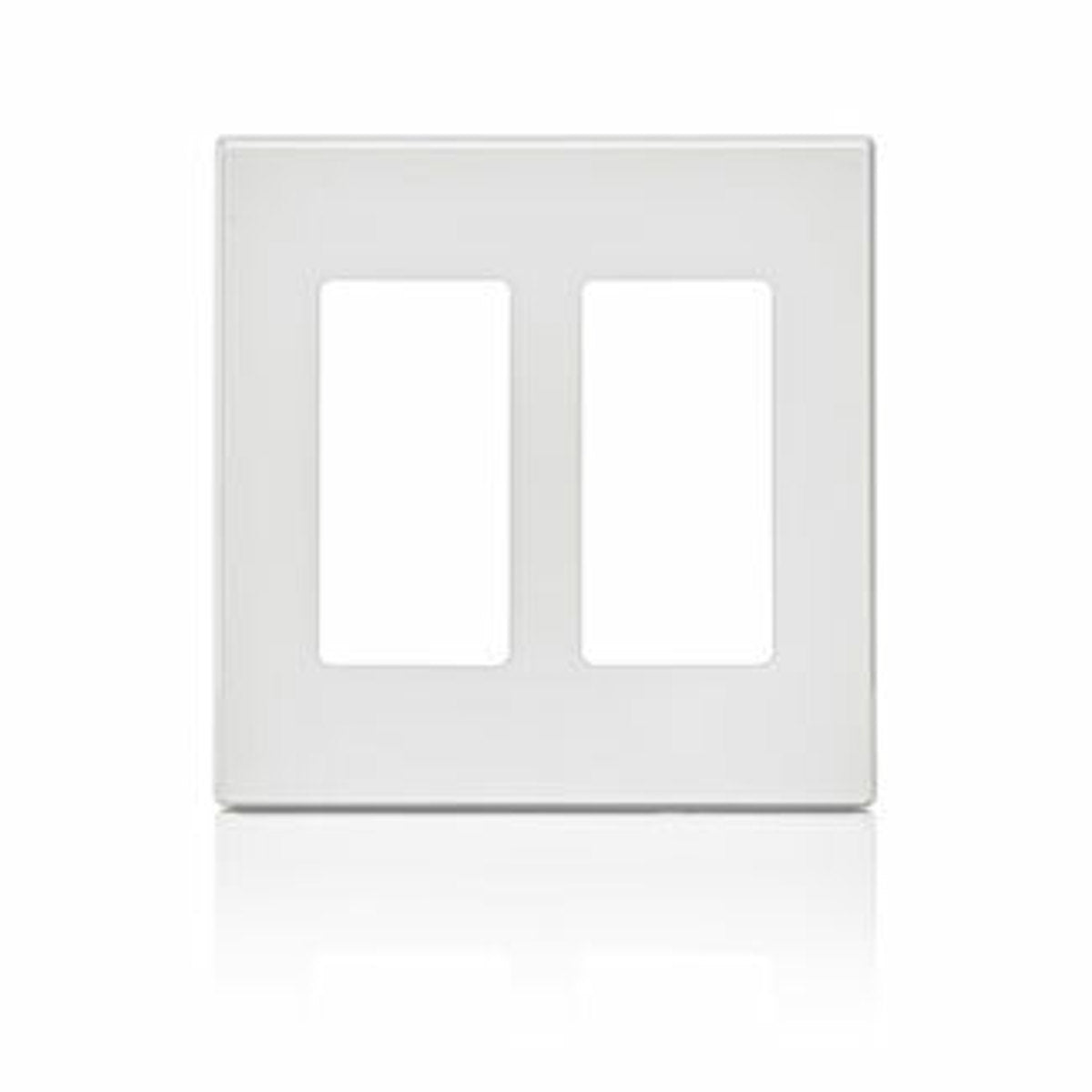

The Leviton 80309-SW is a 2-gang Decora Plus screwless wall plate. This wall plate enhances the design and appearance of your device. Made with polycarbonate, the wall plate features a screwless, snap-on design for contemporary architectural styling. It is UL listed and CSA certified.
- Enhances the design and appearance of your device
- Features 2 gangs for a reliable input connection
- Made with thermoplastic nylon which enhances the design and general presentation style of faceplate
Product Highlights
The Leviton 80309-SW wall plate provides a modern, screwless design and is constructed from durable polycarbonate.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 80309-SW
-
Country of Origin: China
Technical Specifications
-
Color: White
-
Material: Polycarbonate
-
Brand Name: Leviton
-
Product Name: Wall Plate
-
Product Type: Faceplate
-
Number of Gangs: 2
-
Manufacturer Part Number: 80309SW
-
Gang: 2 Gang
-
Loaded: NO
-
Mounting: Snap-On
-
Size: 4.56 in W x 4.61 in H
-
Cutout: 0.942 in H x 0.406 in W Decorator
-
Finish: Smooth
-
Application: Commercial and Residential Applications
-
Standards/Approvals: UL 514|CSA Certified|ANSI Specified|NFPA Certified|OSHA Approved|NEMA WD1/WD6|W-P-544 Standard|NOM Certified|ETL Listed|UL94 V-2 Flammability Rating
-
Thickness: 0.26 in
-
Type: Screwless Standard Size
-
Height: 4.61 in
-
Width: 4.56 in
-
Standard: ANSI;CSA Certified/UL Listed;NEMA WD-1;UL 514;W-P-544
-
Description: LEV 80309-SW WHT SCREWLESS WALL PLT
-
Special Features: Snap-On Design for Contemporary Architectural Styling, Complete Kit Includes Screwless Snap-On Wallplate and Mounting Bracket, Constructed of Durable Polycarbonate to Withstand Abuse, Subplate Offers Ease of Installation - Exclusive "Hook N\' Snap\" Feature
-
Stripped Catalog Number: 80309SW
-
Catalog Description (MFR): 2-Gang Decora Plus Wallplate Screwless Snap-On Mount, White
-
Invoice Description (MFR): WH SCRLWP DEC NEW DESIGN 2G STD SIZE
-
Safety Data Sheet (SDS) Flag: Y
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
UPC: 078477159880
-
GTIN: 00078477159880
-
Alternative Part Number: 7355042
-
Country Of Origin: CN
-
Thickness UOM: in
-
IGCC: 5048
-
Configuration: (2) Decora
-
Designated Size: Standard
-
Product UPC: 07847715988
-
Item Type: Screwless;Standard
-
Width UOM: Inch
-
Height UOM: Inch
-
RoHS Compliant: Yes
-
Product Dimensions: 4.61"W x 4.56"H
-
Finish Type: White
-
Installation Type: Snap-On
-
Switch Type: Decorator
-
Package Quantity: 1
-
Gangs: 2
-
Plate Type: Screwless Wallplate
