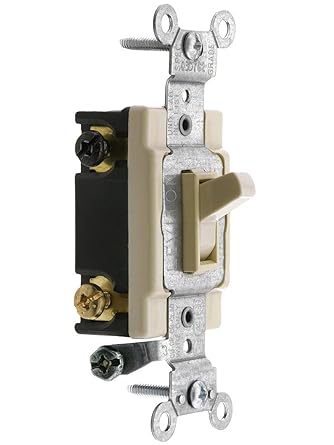

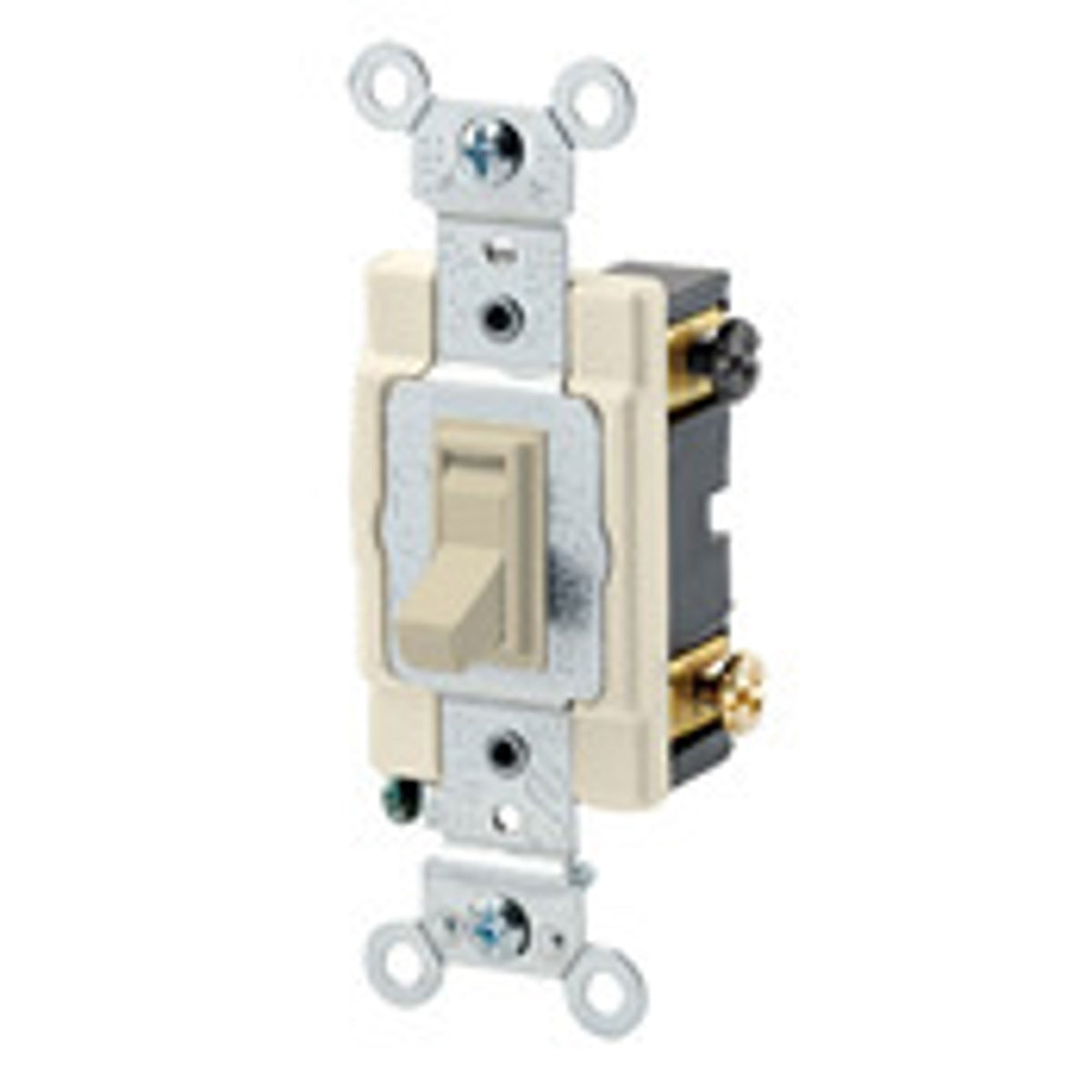

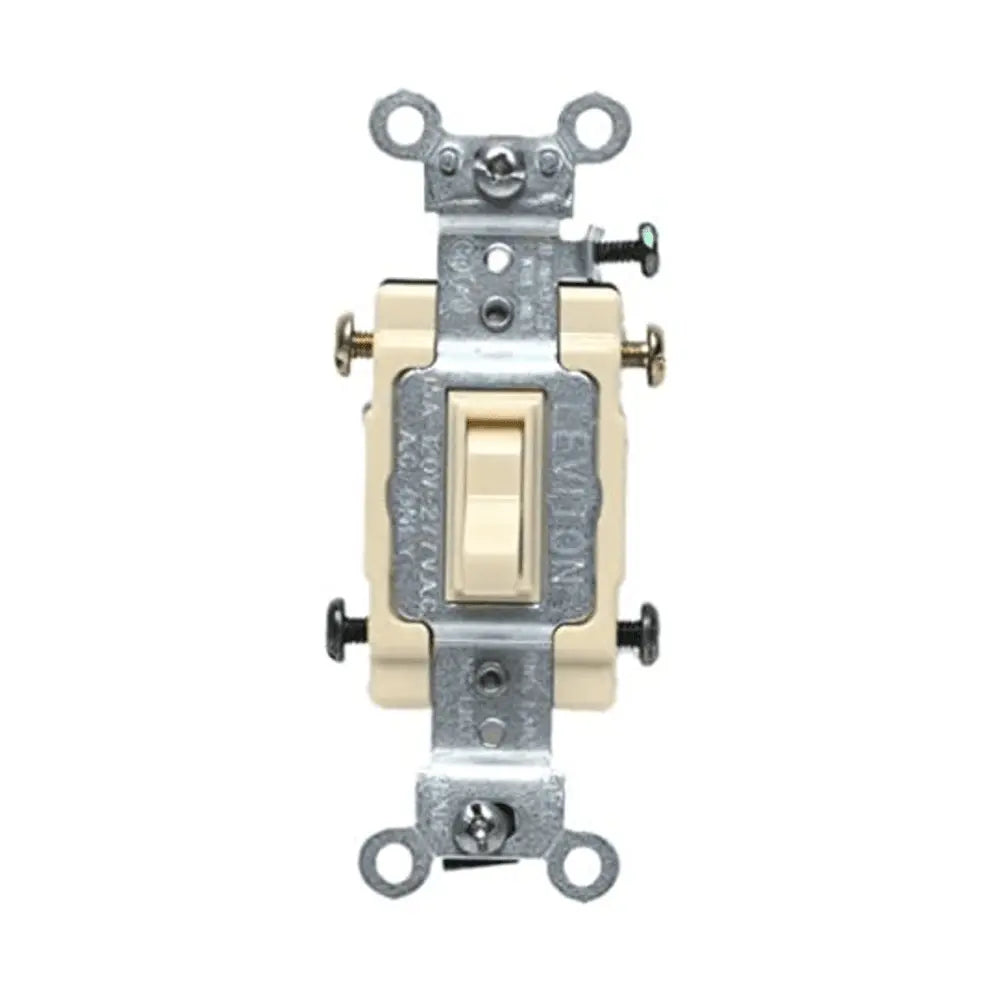

Leviton 54504-2I Toggle Framed AC Quiet Switch 120/277-Volt 15-Amp 4-Way

Brand: LEVITON
SKU: 54504-2I
Availability: In Stock

Ships same day if ordered by 12 pm
$36.18
$36.18
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 54504-2I is a 4-way toggle framed AC quiet switch rated at 120/277-Volt AC and 15-Amps. This commercial specification grade switch features a thermoplastic body and polycarbonate actuator. It is suitable for commercial applications. It offers faster installation with side-wiring and Quickwire push-in wiring.

  • Faster installation with combination of side-wiring and Quickwire push-in wiring
  • Quickwire push-in terminals accept solid copper wire of size 14-AWG
  • Features thermoplastic housing and polycarbonate toggle

Product Highlights

The Leviton 54504-2I is a reliable and efficient switch designed for commercial settings, ensuring top performance and easy installation.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 54504-2I
  • Country of Origin: MX
Technical Specifications
Manufacturer Part Number
54504-2I
UPC
078477326503
Manufacturer Name
Leviton
Country Of Origin
Mexico
GTIN
00078477326503
UNSPSC
39122211
Energy Star Flag
No
RoHS Flag
Contact manufacturer
Type
4-Way Framed
Mounting
Surface
Maximum Load Capacity
1/2 hp at 120 Volt, 2 hp at 240 Volt
Material
Thermoplastic
Item Name
Toggle Framed AC Quiet Switch
Grounding
Grounding
Environmental Conditions
-40 to 65 deg C Operating Temperature
Dielectric Strength
Withstands 1500V for 1 minute
Brand Name
Leviton
Amperage Rating
15 A
Actuator
Toggle
Voltage Rating
120/277 VAC
Terminal Accommodations
14-12 AWG
Terminal Connection
Side Wired
Standards
UL 20 Listed, CSA C22.2 No.111, 152105 Certified, Federal Specification: WS896E, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6
Current Rating
15 Amps
Power Rating
1/2 hp at 120 V, 2 hp at 240 V
Operation Type
4-Way
Application
Commercial, Specification Grade
Approval
UL 20, CSA C22.2, NOM 057
Strap Material
Steel
Contact Material
Silver-Cadmium
Wire Size
14 to 12 AWG (Side)
Wall Plate Included
No
Wiring
Side
Switch Type
Toggle
Switch Function
4 Way
Width
1.31 Inches
Height
46 IN
Insulated
No
Connection
Side Wired
Number Of Poles
4 Way
Operating Temperature
-40 to +120 DEG C
Grade
Commercial Specification Grade
Function
4-Way
Feature 3
Framed
Device Type
Toggle Switch
Actuator Material
Polycarbonate
Base Material
PBT
Body Material
Thermoplastic
Contacts
Silver-Cadmium .031 Thick
Cover Material
Nylon
Terminal Screws
Steel 8-32
Toggle
Polycarbonate
Dielectric Voltage
Withstands 1500V for 1 minute
Max. Amperage
12 Amp
Temperature Rise
Maximum 30 degrees C rise
Voltage
120 Volts
Product ID
Stamped on Strap
Screw Terminal Torque
14-18 in-lbs
Terminal Accom.
14-12 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Side Wire
HP Rating
1/2HP-120V 2HP-240V
NOM
057
Flammability
Rated V-2 per UL 94
ANSI
C-73
NEMA
WD-1 & WD-6
UL Standard
UL 20
CSA C22.2 No. 111
File #152105
UL Fed Spec WS896E
File #E7458
RoHS Compliant
False
Size
46 H x 1.31 W x 0.92 D
Alternative Part Number
7316369
Power Rating UOM
hp
Voltage Rating UOM
VAC
Manufacturer Item Status
Active
Country
USA|Canada
IDEA Index ID
7316369
Amperage Rating UOM
A
Depth
.92
Depth UOM
Inch
Cross Reference Products
RS415I
ECCN
EAR99
Rated Voltage
120/277V AC
Switch Style
Toggle
Contact Rating
1/2 hp at 120 VAC/2 hp at 240 VAC
Catalog ID
LEV54504-2I
Operation Method
On/Off
Port Type
Light Switch
Bulb Compatibility
Incandescent, Halogen, CFL, Dimmable CFL/LED, LED, Xenon
Decorative Style
Traditional
Room
Any Room, Basement, Bathroom, Bedroom, Conservatory, Dining Room, Foyer, Garage, Guestroom, Hallway, Home Office/Study, Kid's Bedroom, Kitchen, Living Room, Lounge, Patio, Porch, Terrace, Utility/Laundry Room
Electrical Connection
Screw Terminal
Item Height
2.000
Item Length
4.250
Item Width
2.000
Condition Description
New (Old Stock)
Ground
Grounding Screw
Lot Quantity
1
Switch Configuration
4-Way
Switch Horsepower Rating
1/2HP@120V, 2HP@240V, 2HP@277V
Terminal Type(s)
Side Wired
Suitable For
Interior, Wall
Non-Domestic Product
No
Plate Design
Toggle Switch
Style
Traditional
Quantity
1
Recommended Environment
Indoor
Contact Configuration
Double Pole Double Throw (DPDT)/4-Way
Mounting Type
Wall Mount
Maximum Current
15 Amps
Insulation Resistance
15 Megaohms
Operating Voltage
120 Volts
Operation Mode
ON-OFF
Smart Home Compatibility
Not Smart Home Compatible
Compatible Devices
Lights, fans, outlets
Control Type
On-Off
Number of Positions
4
Circuit Type
4-way
Contact Type
Normally Open
Connector Type
Quick Connect
Specification Met
ABS
International Protection Rating
IP00
