Product Description

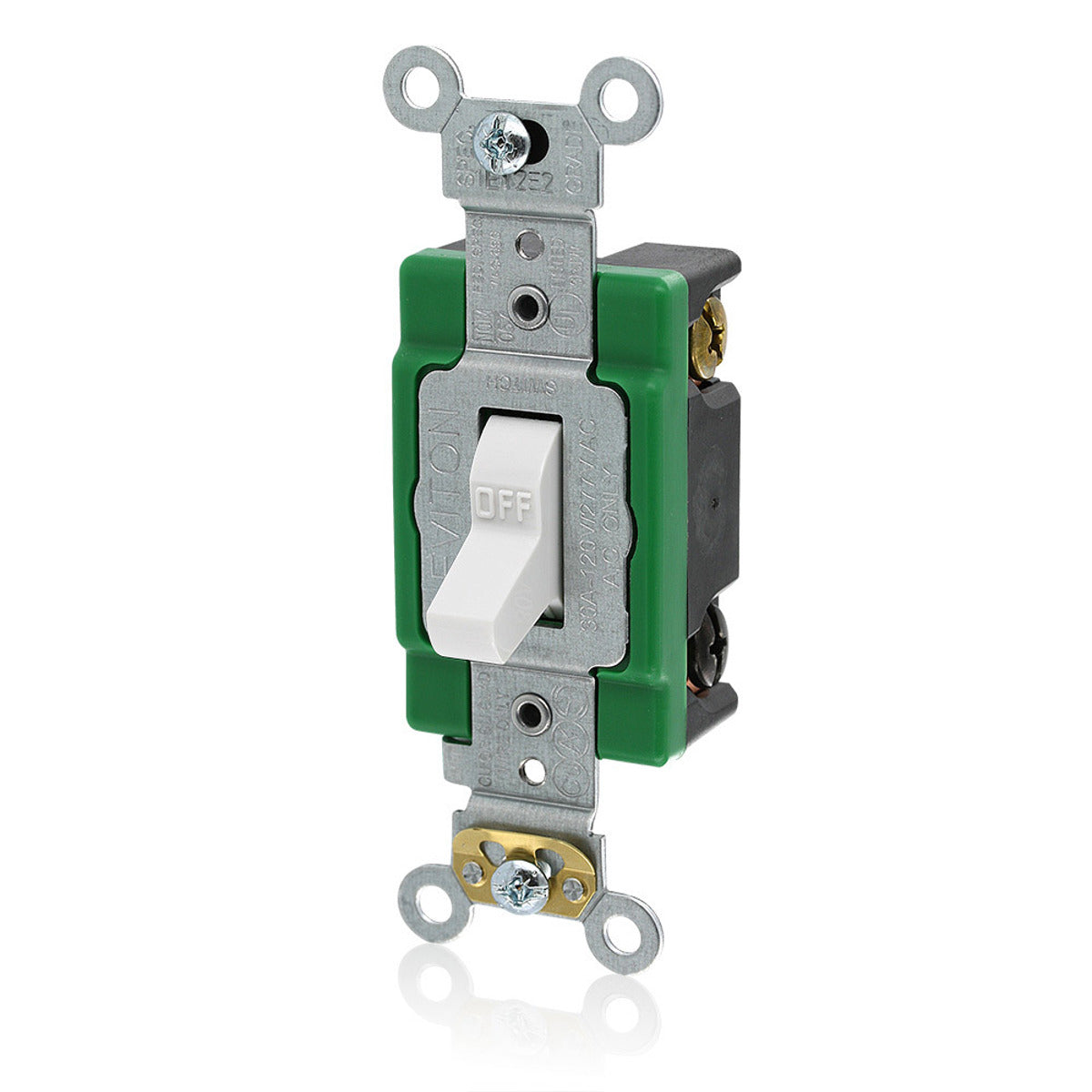

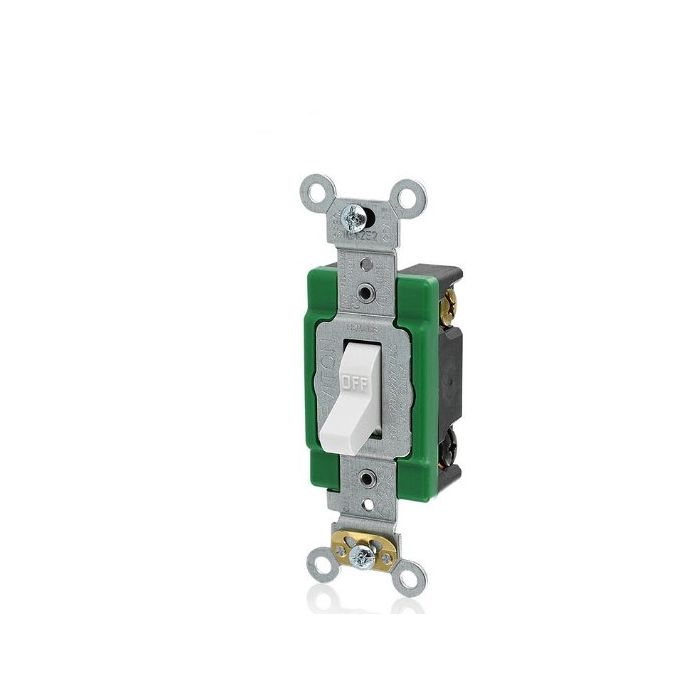

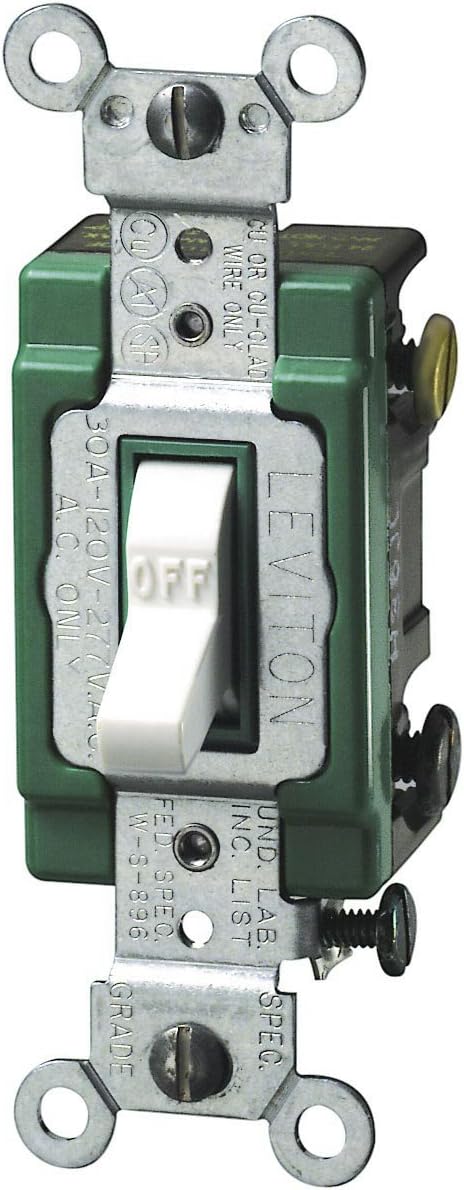

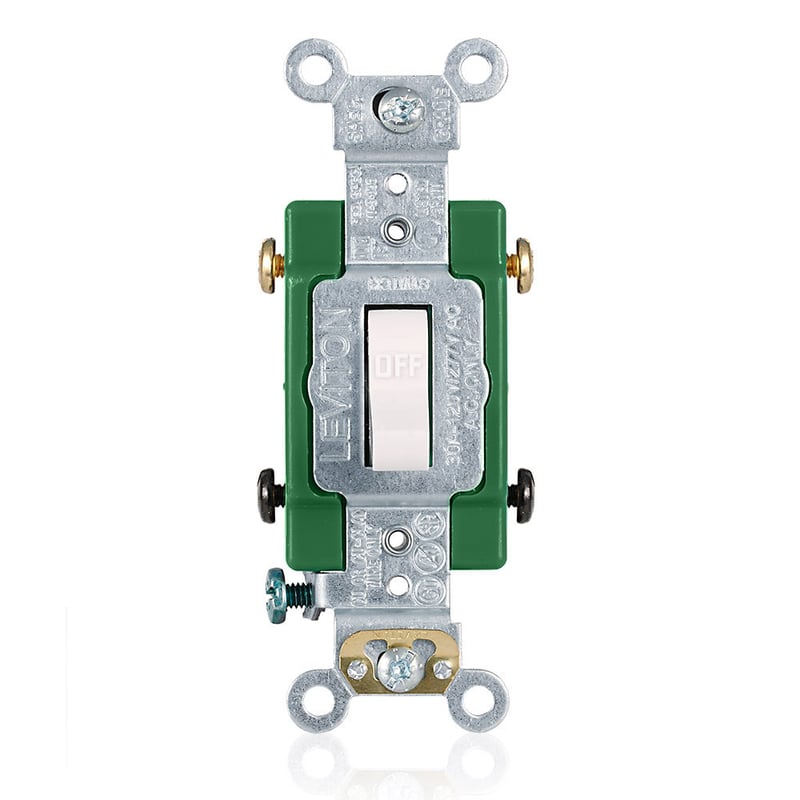

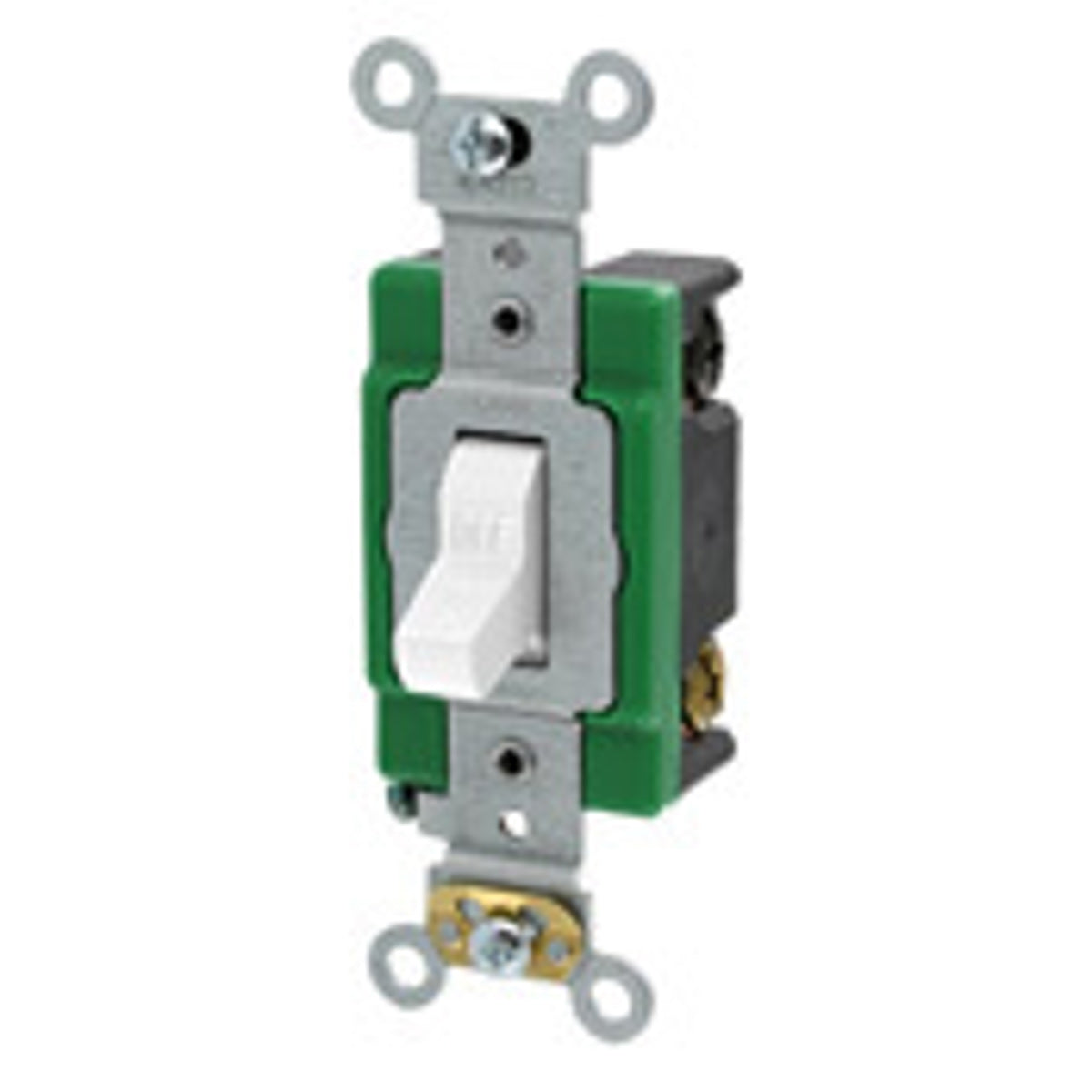

The LEVITON 3032-2W is a 30 Amp, 120/277 Volt, toggle double-pole AC quiet switch. This extra heavy-duty spec grade, self-grounding switch is back and side wired. It is suitable for commercial applications and provides top-of-the-line quality and peak performance. Ideal for switching power to boilers, dehumidifiers, and portable heaters.
- 30 Amp, 120/277 Volt
- Extra Heavy Duty Spec Grade
- Self Grounding, Back and Side Wired
Product Highlights
Industrial grade AC toggle switch with heavy gauge copper alloy, large silver alloy contacts, and a fully enclosed switch mechanism.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 3032-2W
-
Country of Origin: Mexico
Technical Specifications
-
Color: White
-
Finish: White
-
Voltage: 120/277 Volt
-
Material: Plastic
-
Switch Type: Double_pole
-
Power Source: Wired Electric
-
Switch Style: Toggle
-
Mounting Type: Panel Mount
-
Connector Type: Quick Connect
-
Current Rating: 30 Amps
-
Operation Mode: ON-OFF
-
Contact Material: Silver alloy
-
Operating Voltage: 120 Volts
-
Amperage: 30 Amp
-
Grade: Extra Heavy-Duty Industrial Specification Grade
-
Grounding: Self Grounding
-
Wiring: Back and Side Wired
-
Actuator: Toggle
-
Amperage Rating: 30 A
-
Application: Commercial Applications
-
Contact Configuration: DP
-
Contact Rating: 2 hp at 120 to 277 VAC
-
Enclosure: NEMA WD-1/WD-6
-
Environmental Conditions: -40 to 65 deg C Operating Temperature
-
Manufacturer Part Number: 3032-2W
-
Terminal Type: Back/Side Wire
-
Type: Self-Grounding
-
Voltage Rating: 120/277 VAC
-
Number of Poles: 2
-
Power Rating: 2 hp
-
Standards/Approvals: RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
-
Manufacturer: LEVITON
-
Brand Name: Leviton
-
Action: Double pole
-
Mounting: Box
-
Standard: ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WS896E (File E7458);UL Standard (UL 20)
-
Operating Temperature: -40 to +65 DEG C
-
Connection: Back Wired;Side Wired
-
Product Name: AC Quiet Switch
-
Poles: 2
-
Terminal Wire Size: 14 - 10-AWG and 14 - 12-AWG
-
Strap Thickness: 0.48-Inch
-
Strap Material: Galvanized steel
-
Dielectric Strength: 1500-Volts
-
AC Horsepower Rating: 2 hp @ 120 V, 2 hp @ 240 V
-
Max Amperage: 24 A
-
Flammability Rating: V-2 per UL 94
-
Storage Temperature: -40 00b0C to 65 00b0C
-
Product ID: Ratings are marked on device
-
Wire Accomodation: #14-#10 AWG Back Wired; #14-#12 AWG Side Wired
-
Termination: Back and Side Wire
-
Screw Terminal Torque: 14-18 in-lbs
-
Device Type: Toggle Switch
-
NEMA: WD-1 and WD-6
-
Applicable Standards & Certifications: UL 20
-
ANSI: C-73
-
Terminal: Screw
-
Maximum Current: 30 Amps
-
Smart Home Compatibility: Not Smart Home Compatible
-
Control Type: Manual
-
Circuit Type: double_pole
-
Actuator Type: Push Button
-
Contact Type: Normally Open
-
Material Type: Plastic
-
Specification Met: CCC
-
International Protection Rating: IP67
-
Series: Commercial & Industrial Grade Switches
-
Endurance: 50,000 cycles minimum
-
Overload (UL20): 100 cycles of overload at 4.8 times rated current
-
Function: Double-Pole (DP)
-
Dielectric Voltage: 1500 V
-
Temperature Rise: Max 30 00b0C at full rated current
