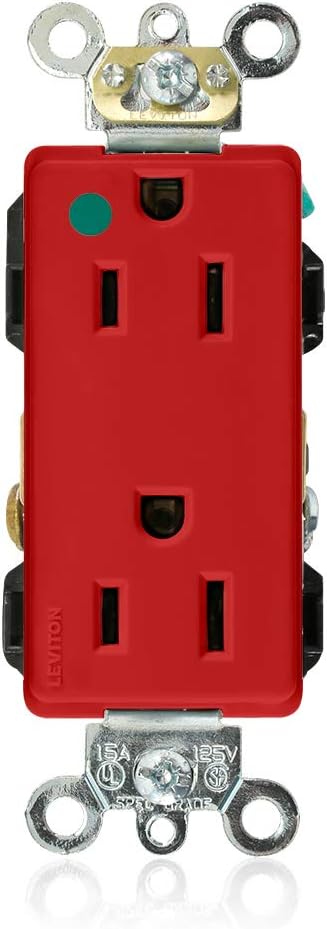

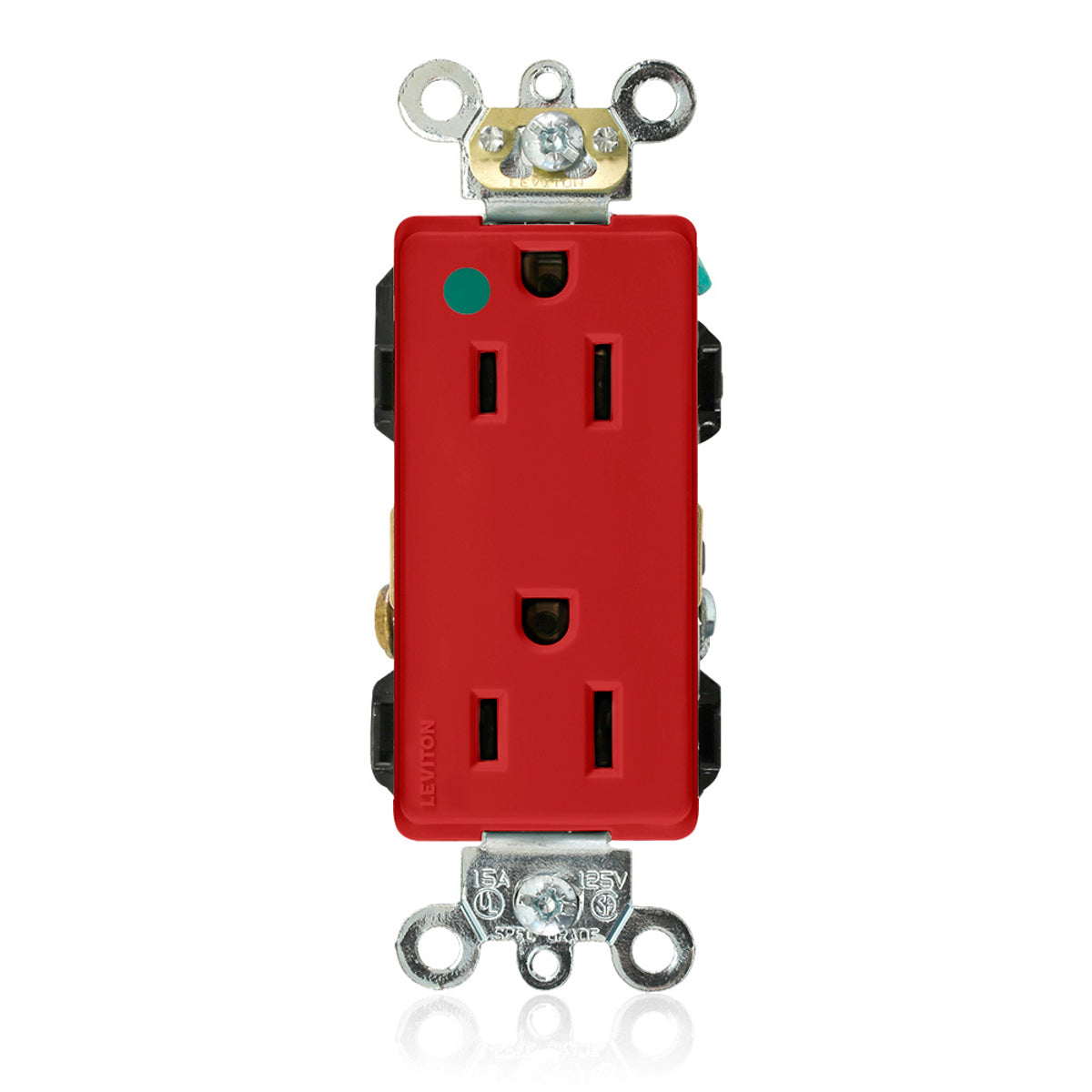

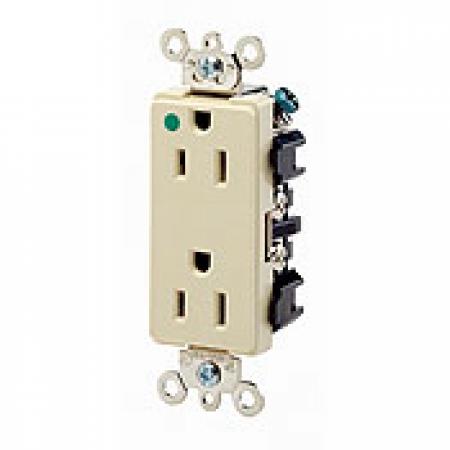

Leviton 16262-HGR Decora Plus Duplex Receptacle 15 Amp, 125 Volt

Product Description

The Leviton 16262-HGR is a 15 Amp, 125 Volt Decora Plus duplex receptacle. This hospital-grade receptacle is self-grounding and features back and side wiring. It is suitable for commercial applications and is constructed from durable nylon material.

• Hospital Grade
• Self Grounding
• Back and Side Wired

Product Highlights

This Leviton receptacle is ideal for health care facilities, manufacturing plants, and schools, ensuring safe and reliable operation.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16262-HGR
• Country of Origin: Mexico

Technical Specifications

• Current Rating: 15 Amps
• Operating Voltage: 125 Volts
• Special Features: Smooth Face
• Catalog Number: 16262-HGR
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Decora Plus
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 15 A
• Application: Commercial
• Color: Red
• Connection: Back and Side Wired
• Material: Nylon
• Mounting: Wall
• NEMA Rating: NEMA 5-15R
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498HG (File E13399)
• UPC: 078477818749
• GTIN: 00078477818749
• Item Type: Straight Blade;Duplex Outlet
• Width: 1.52 Inch
• Depth: 1.14 Inch
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Temperature Rating: -40 to +60 DEG C
• Voltage Rating: 125 VAC
• Wire Size: 14-10 AWG
• Horsepower: 1/2 hp
• Grade: Commercial
• Terminal Type: Back/Side Wire
• Type: 1-Phase Duplex
