Product Description

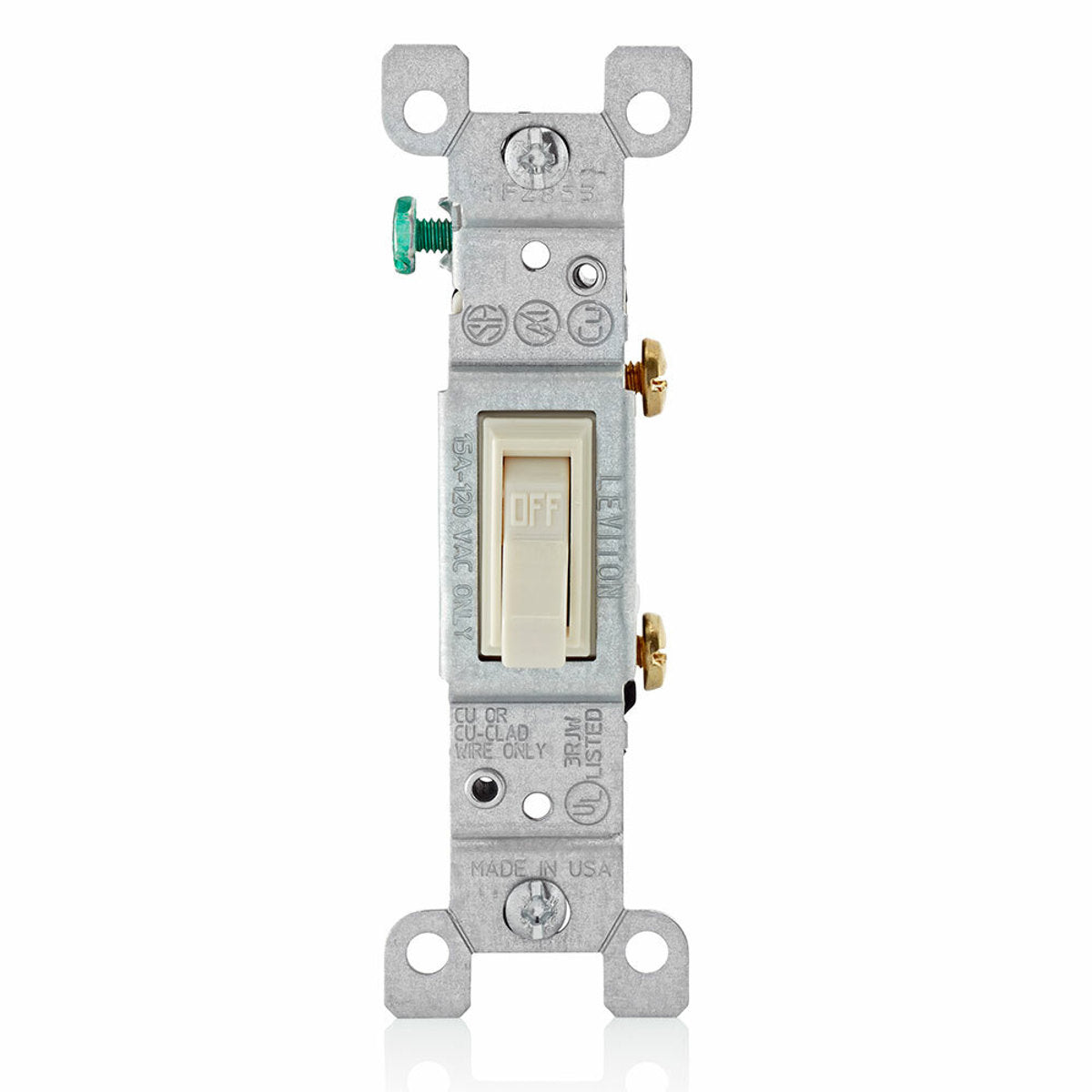

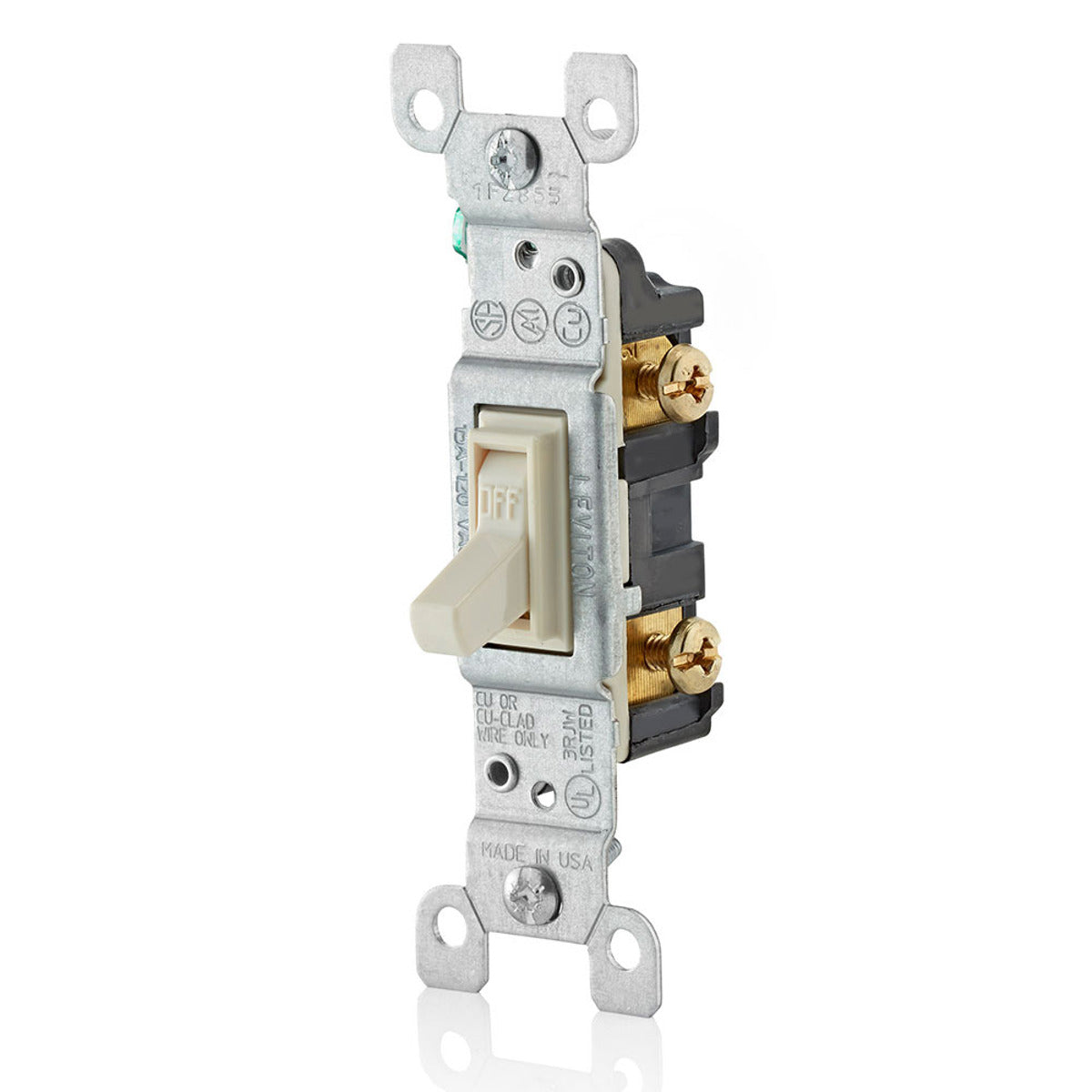

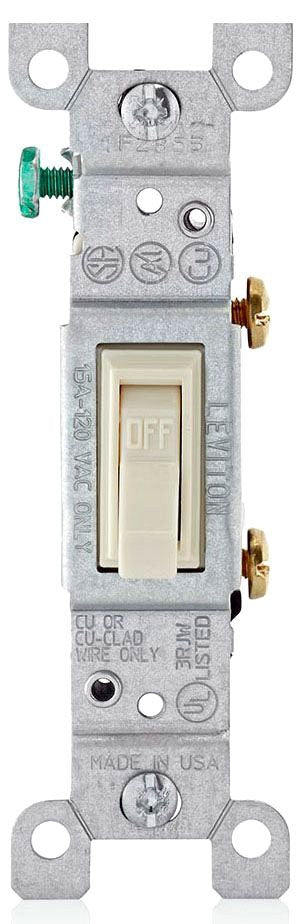

The LEVITON 1451-2T is an AC quiet toggle switch with a framed design. Rated at 15 Ampere and 120 VAC, it is suitable for residential applications. Constructed from thermoplastic material, this single pole switch offers push-in and side wiring options.
- AC Quiet Switch
- Current Rating 15 Ampere
- Voltage Rating 120 VAC
Product Highlights
This toggle switch is ideal for residential use, offering easy installation and reliable performance.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 1451-2T
-
Country of Origin: United States
Technical Specifications
-
Type: Single-Pole AC Quiet Switch
-
Current Rating: 15 A
-
Voltage Rating: 120 VAC
-
Power Rating: 1/2 HP at 120 V
-
Operation Type: Single Pole
-
Material: Thermoplastic
-
Wiring: Push-In, Side
-

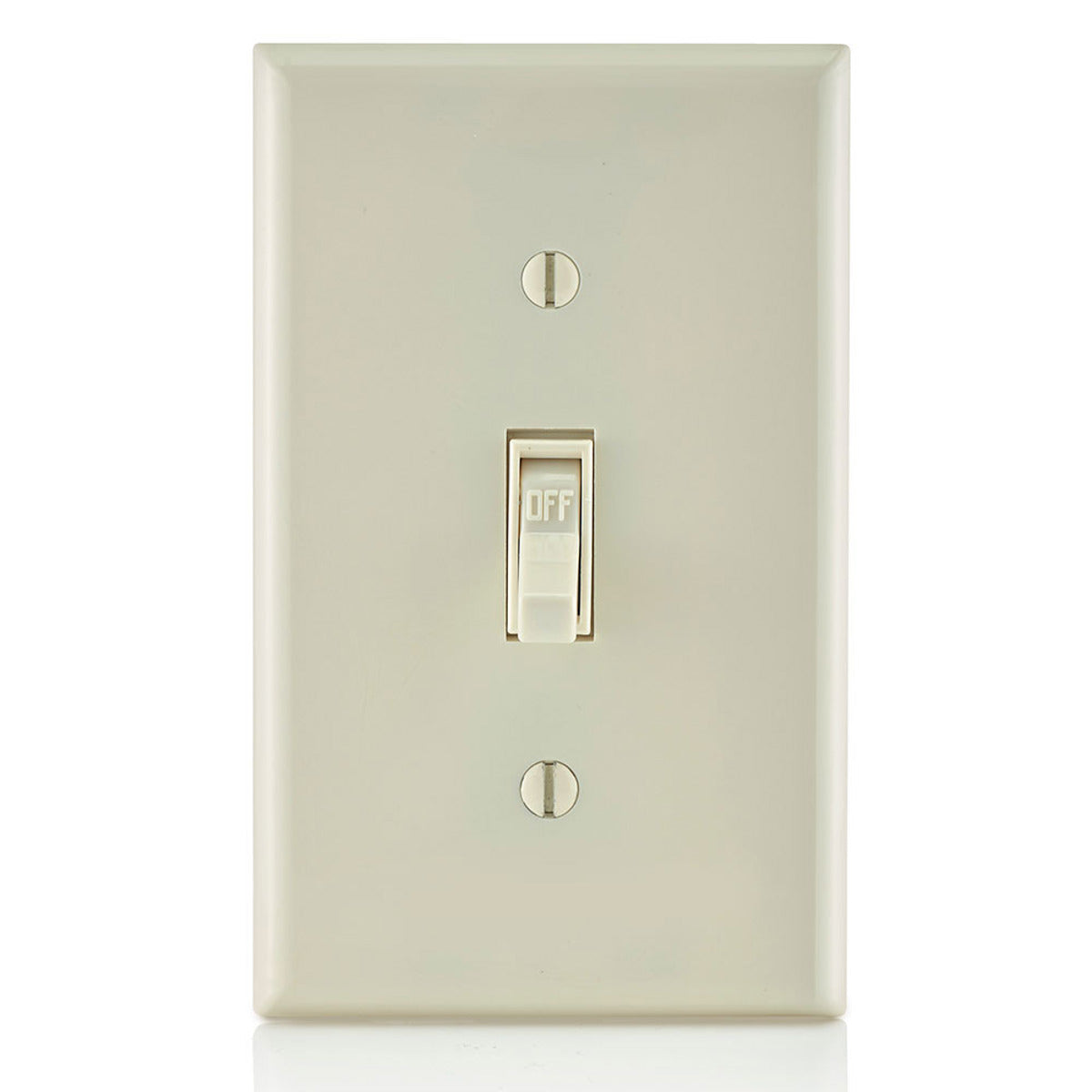

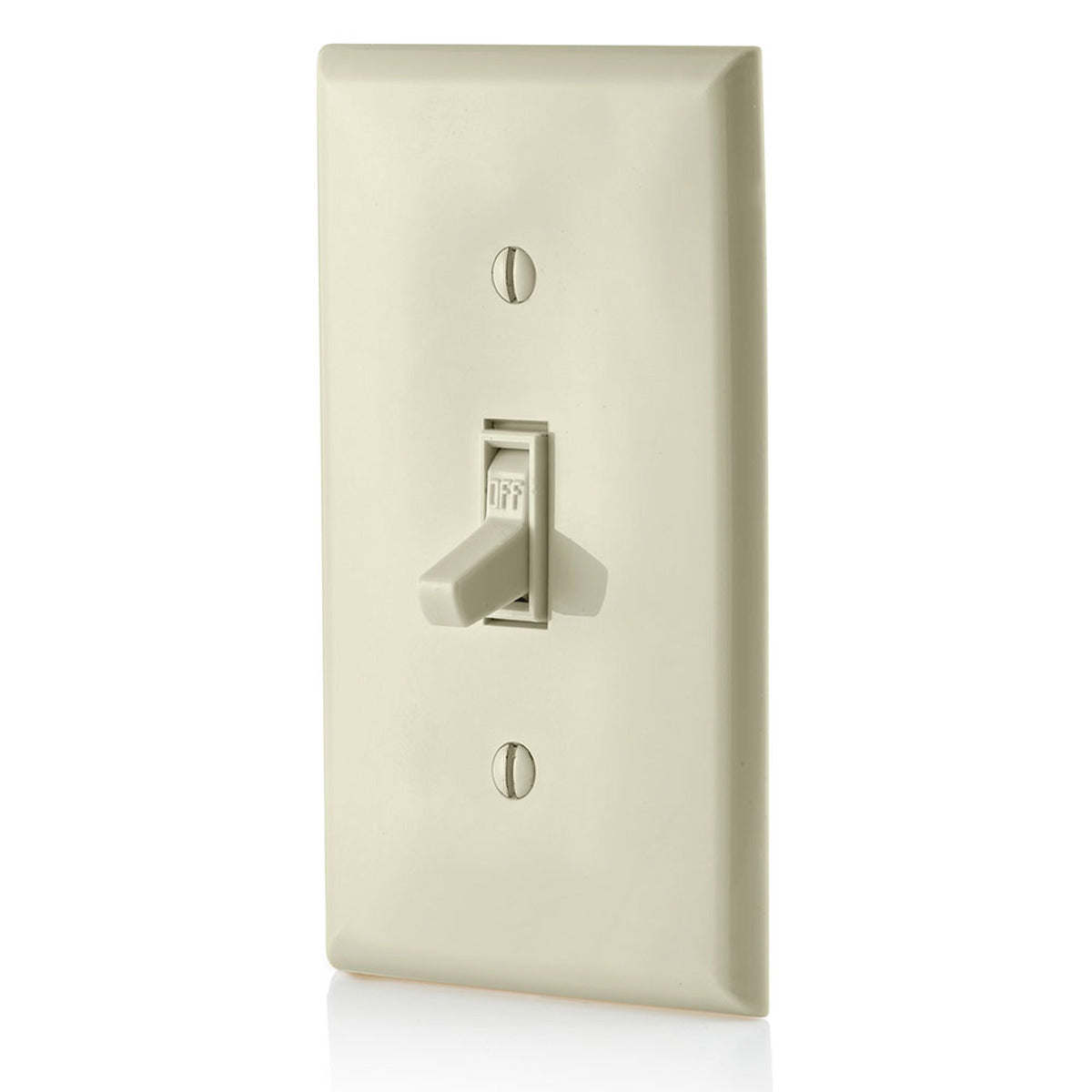

Wall Plate Included: No
-
Application: Residential
-
Approval: UL, CSA, NOM 057
-
Operating Temperature: -40 to +65 DEG C
-
Grounding Type: Grounding
-
Strap Material: Steel
-
Includes: Ground Screw
-
Contact Configuration: SP
-
Poles: 1
-
Actuator: Cam
-
Mounting: Wallplate
-
Terminal: Spst
-
Number of Poles: 1 P
-
Switch Type: Toggle
-
Grade: Residential Grade
-
Grounding: Grounding
-
Housing Material: Thermoplastic
-
Terminal Type: Push-In
-
Wattage Rating: 0.5 hp
-
Connection Type: Push-In and Side Wired
-
Action: SP
-
Amperage Rating: 15A
-
Rated Voltage: 120V
-
Switch Style: Cam
-
No. of Poles: 1
-
Actuator Material: Thermoplastic
-
Body Material: Thermoplastic
-
Feature: Framed
-
HP Rating: 1/2HP-120V
-
Standards and Certifications: UL/CSA
-
Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
-
Termination: Quickwire Push-In & Side
-
Torque Range: 14 18 in.-lbs
-
Voltage: 120 VAC
-
Mounting Type: Wall Mount
-
Operating Voltage: 120 Volts
-
Operation Mode: Toggle
-
Number of Positions: 1
-
Contact Material: Brass
-
Temperature Rating: -40 to 65 deg C
-
Brand: LEVITON
-
MPN: 1451-2T
-
Contact: SP
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Contact Rating: 1/2 (120V);2 (240V)
-
Special Features: Grounding; Terminal Screws Accept up to No. 12 AWG Copper or Copper-Clad Wire; L
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Alternative Part Number: 9276437
-
Amperage Rating UOM: A
-
Country: USA|Canada
-
Country Of Origin: US
-
IDEA Index ID: 9276437
-
Number Of Poles: 1
-
Power Rating UOM: hp
-
Voltage Rating UOM: VAC
-
IGCC: 5200
-
Vendor: 78477
-
Insulation: Thermoplastic
-
Family group: WIRING DEVICES
-
WES Product code: 2734030820
-
Environment: -40 to 65 deg C
-
Mfg Standards/Approvals: CSA Certified (File LR-3413), NOM Certified (057), RoHS Compliant, UL Listed (File E-7458)
