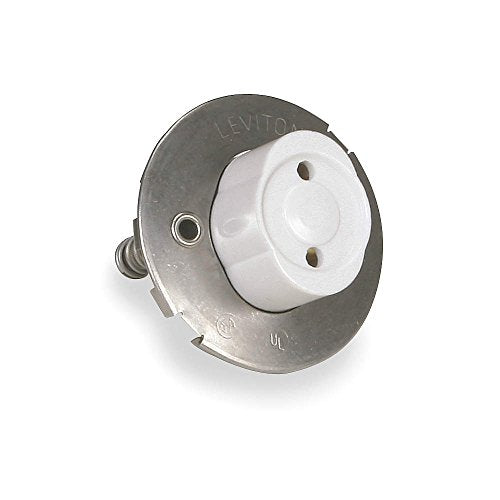

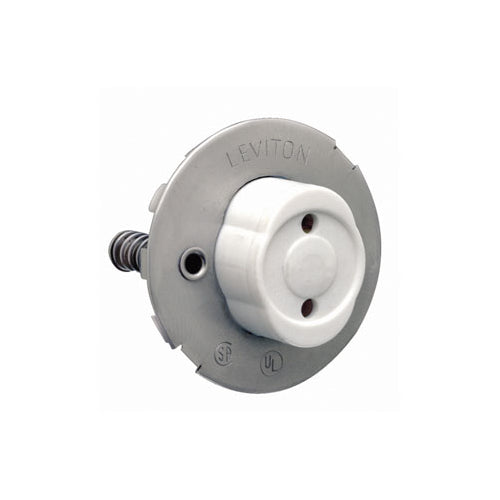

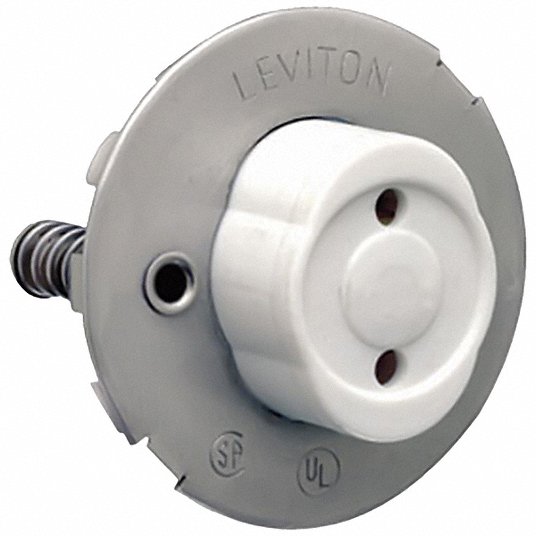

Leviton 13518 Medium Base, Bi-Pin, Standard Fluorescent Lampholder

Brand: LEVITON
SKU: 13518
Availability: In Stock

Ships same day if ordered by 12 pm

$32.23
$32.23
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Leviton 13518 is a medium base, bi-pin, standard fluorescent lampholder. This lampholder is designed for commercial use and features a snap-in design with a plunger contact. It supports quickwire 18AWG solid or stranded tinned connections. Rated for 600V and 660W, this lampholder is UL Listed and CSA Certified.

  • Commercial application
  • Fluorescent lamp type
  • Rated at maximum load capacity of 660-Watts and voltage rating of 600-Volts

Product Highlights

The Leviton 13518 lampholder is ideal for commercial applications requiring a reliable and easy-to-install fluorescent lighting solution.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 13518
  • Country of Origin: Mexico
Technical Specifications
CSA
LR-5863
Base
Medium
GTIN
00078477168561
Type
Plunger End Standard
Brand
Leviton
Length
1.64 Inch
Voltage
600 Volt
Wattage
660 Watt
Diameter
1.64 Inch
Material
Thermoset
Standard
UL Listed (E5833);CSA Certified (LR-5863)
Lamp Type
Fluorescent
Sub Brand
FLUORESCENT LAMPHOLDERS
Bulb Shape
T8/T12
Light Type
Fluorescent
Product UPC
07847716856
12-Digit UPC
078477168561
Applications
For Commercial use
Base Material
Thermoplastic
Body Material
Thermoset
Mounting Type
Snap-In
Contact Material
Copper-Alloy
Termination Type
Quickwire 18AWG Solid
Country of Origin
Mexico
Operating Temperature
0 degrees C
Catalog Number
13518
Manufacturer
Leviton
Made in USA
No
Application
Commercial Applications
UPC
078477168561
Item Type
Standard Fluorescent Lampholder
Length UOM
Inch
Voltage Rating
600 VAC
UNSPSC
39110000
Energy Star Flag
No
Panel Thickness
.035 - .050
Terminal Connection
Quickwire 18 AWG Solid/Stranded Tinned
RoHS Flag
Contact manufacturer
Country Of Origin
MX
Item Name
Fluorescent Lampholder
Contact Type
Plunger
Bulb Base
G13 Medium
Bulb Base Group
Bi-Pin
Standards
UL E5833 Listed, CSA LR5863 Certified, NOM 057 Certified
For Use With
T8 and T12 Lamps
Maximum Load Capacity
660 Watt
Color/Finish
White
Dimmable
No
Lamp Wattage
660 W
Lamp Base Type
Medium Bi-Pin
Connection Type
Wire Lead
Rated Voltage
600V
Lampholder Watts
660W
Lampholder Base
Medium (E26) Base
Lampholder Type
Linear
Operator Type
Plunger
Relative Humidity
Dry locations use only per UL 496 standard
Storage Temperature Range
Ambient (around 25\tC)
Rated Wattage
660W
Termination
Quickwire 18AWG Solid
Lamp Contacts
Bi-Pin
Manufacturer Part Number
13518
Wire Gauge
18 AWG
Features
Plunger Contact; Quickwire 18AWG Solid Termination
Product Type
Lamp Holder
Compatible with Brand
Universal
Connection
Quickwire
Alternative Part Number
7357544
IDEA Index ID
7357544
Lamp Wattage UOM
W
Voltage Rating UOM
VAC
Country
USA
ECCN
EAR99
Bulb Type
Fluorescent Lamp
