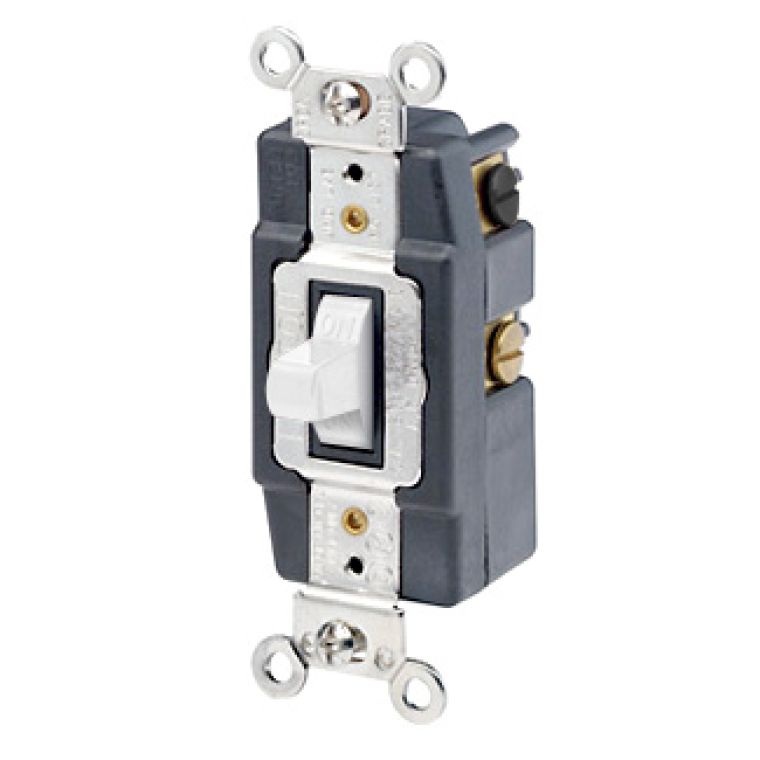

Leviton 1288W Maintained Contact Toggle Switch 30 Amp 120/277 Volt

Product Description

The LEVITON 1288W is a 30 Amp, 120/277 Volt, toggle double-throw center-OFF maintained contact double-pole AC quiet switch. This industrial-grade, self-grounding switch features back and side wiring options. Suitable for various industrial applications requiring a robust and reliable switching solution. The switch is built to withstand demanding environments and frequent use.

• Maintained Contact CTR OFF
• Double-Pole Double-Throw
• Extra Heavy-Duty Industrial Specification Grade

Product Highlights

30A, 120/277V maintained contact toggle switch with industrial-grade construction and back/side wiring.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 1288W
• Country of Origin: Mexico

Technical Specifications

• Amperage: 30 A
• Voltage: 120/277 VAC
• HP Rating: 2HP-120V 2HP-240V-277V
• Grounding: Self-Grounding
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C
• Base Material: Thermoplastic
• Contact Material: Silver Alloy
• Cover Material: Thermoplastic
• Ground Clips: Brass
• Grounding Screw: Brass 8-32
• Strap Material: Steel
• Terminal Screws: Brass 8-32
• Toggle: Polycarbonate
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back or Side Wire
• Device Type: Toggle Switch
• Feature: Maintained Contact CTR OFF
• Function: Double-Pole Double-Throw
• Grade: Extra Heavy-Duty Industrial Specification Grade
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• RoHS: Compliant
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Brand Name: Leviton
• Brand Part Number: 1288-W
• Poles: 2
• Volts AC: 120, 277
• Material: Thermoplastic
