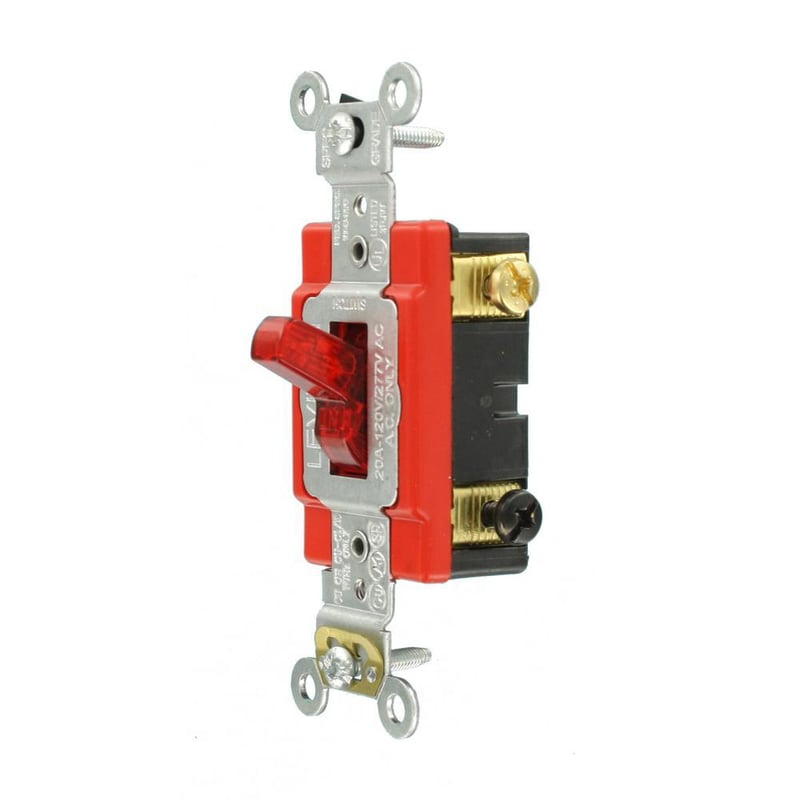

LEVITON 1223-PLR AC Quiet Switch 20 Amp Toggle Switch with Pilot Light

Product Description

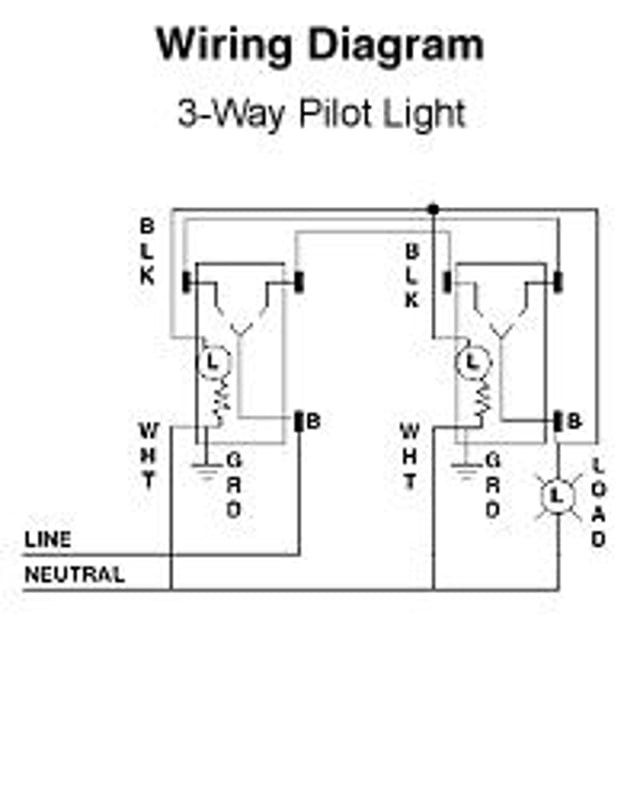

The Leviton 1223-PLR is a 20 amp, 120 volt AC quiet toggle switch designed for reliable performance. It includes a pilot light that provides a visual indicator when the switch is on. This switch is suitable for three-way configurations and is available in a red color for easy identification in wiring applications.

• 20 amp, 120 volt rating
• Self-grounding and suitable for back and side wiring
• Includes illuminated pilot light for visual status

Product Highlights

This toggle switch is perfect for commercial and residential applications, ensuring user safety and convenience.

Product Information

Standard Information

• Brand: Leviton
• MPN: 1223-PLR

Technical Specifications

• Voltage Rating: 120 Volt
• Amperage Rating: 20 Amp
• Number of Poles: 3 Way
• Operating Temperature: -40 to +65 degrees Celsius
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Mounting: Box
• Color: Red
• Height: 46 inches
• Width: 1.31 inches
