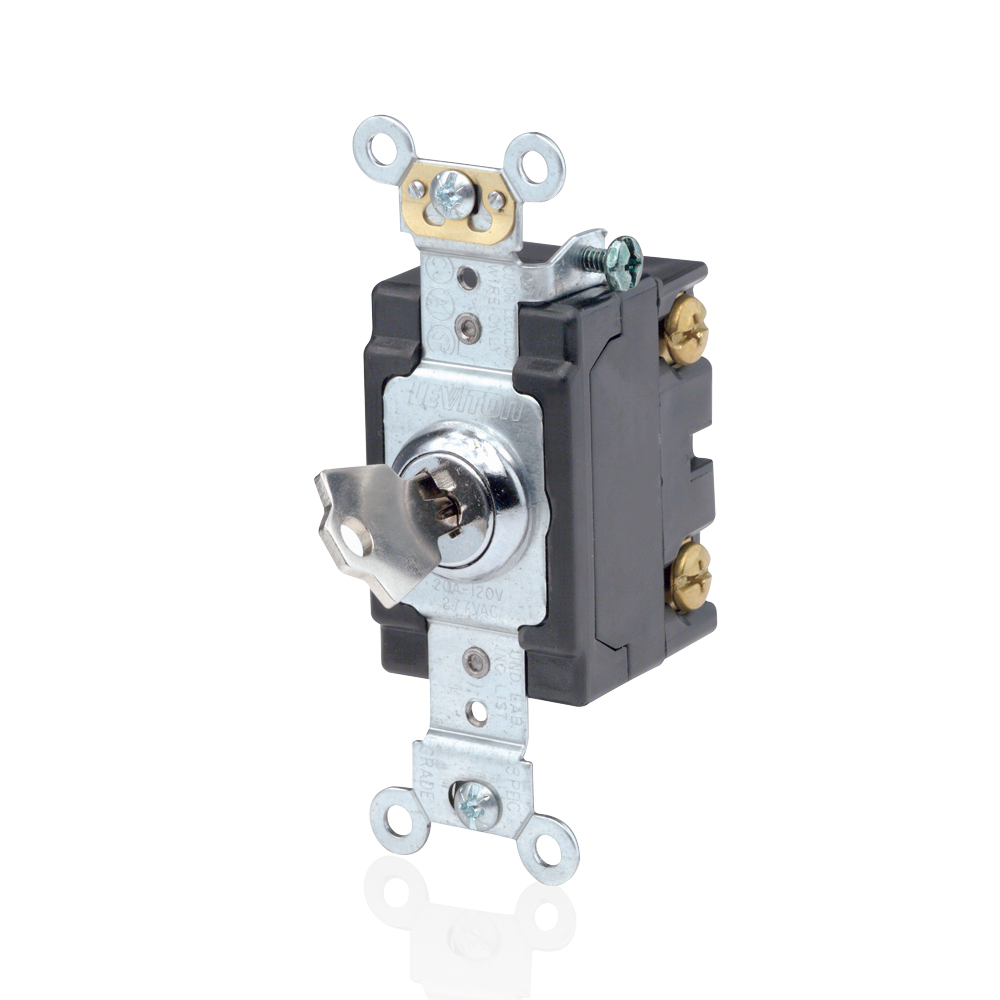

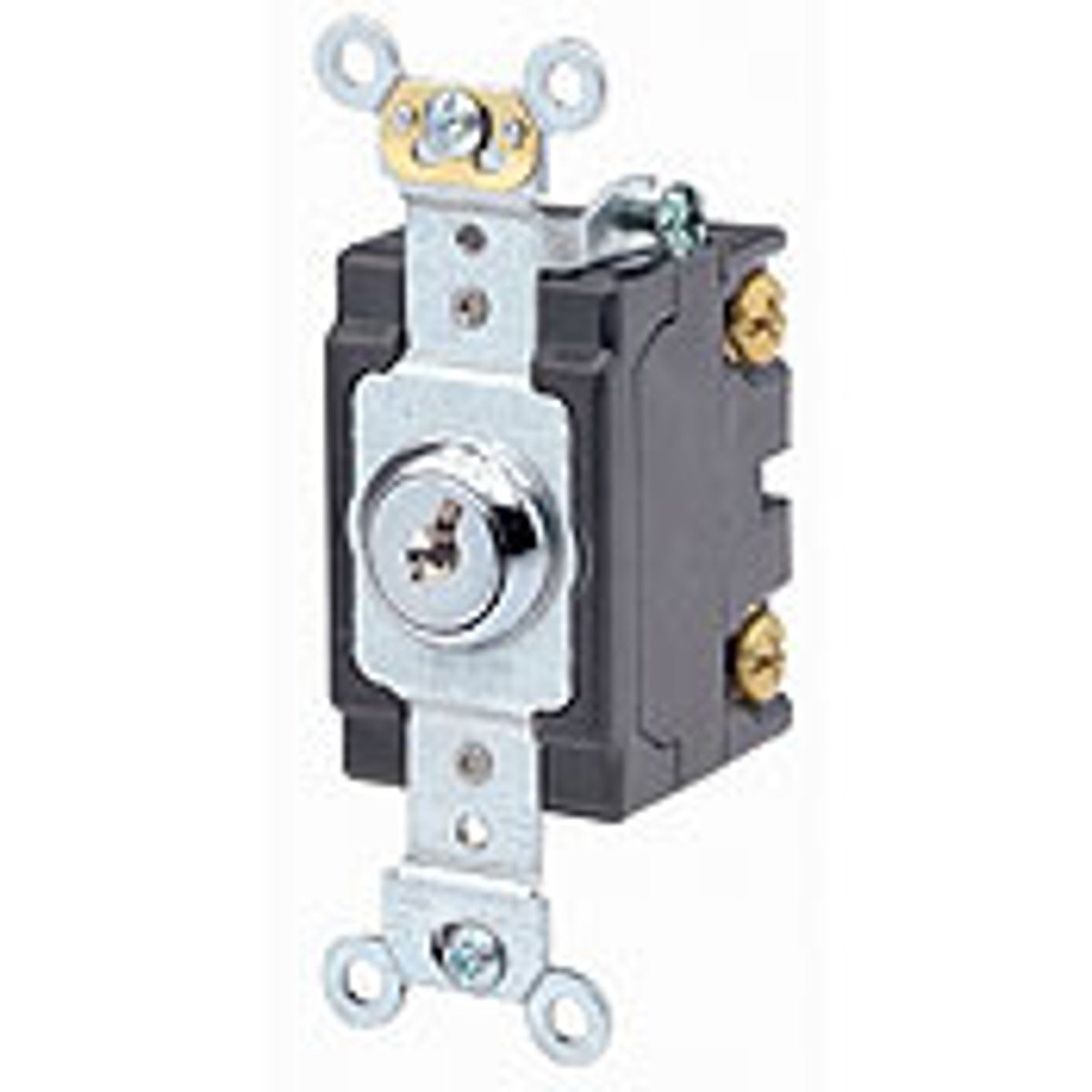

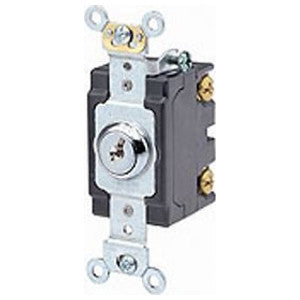

Leviton 1223-2KL Key Locking Switch 20A 120/277 VOLT 3-WAY

Product Description

The Leviton 1223-2KL is a key locking switch designed for 120/277 VAC applications. It is a 20 Amp toggle switch suitable for use in commercial settings. This switch supports a three-way configuration and is constructed from durable thermoplastic material.

• Rated for 20 Amps at 120/277 VAC
• Features self-grounding design
• Back and side wired for easy installation

Product Highlights

This toggle switch is ideal for applications requiring secure access control. Its keyed locking mechanism ensures that only authorized personnel can operate devices connected to it.

Product Information

Standard Information

• Catalog Number: 1223-2KL
• Brand: Leviton

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Dimensions: 46 H x 1.31 W x 2.87 D inches
• Operating Temperature: -40 to +65 degrees C
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Connection Type: Back Wired; Side Wired
• Mounting Type: Box
