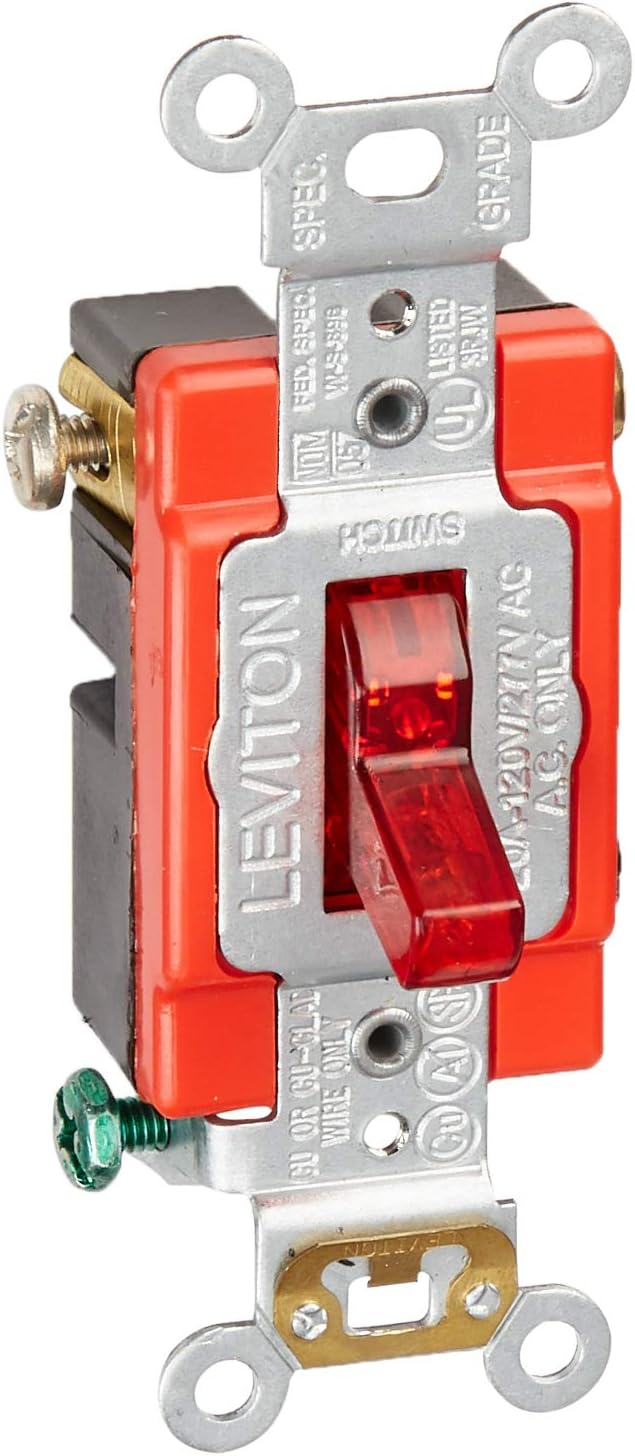

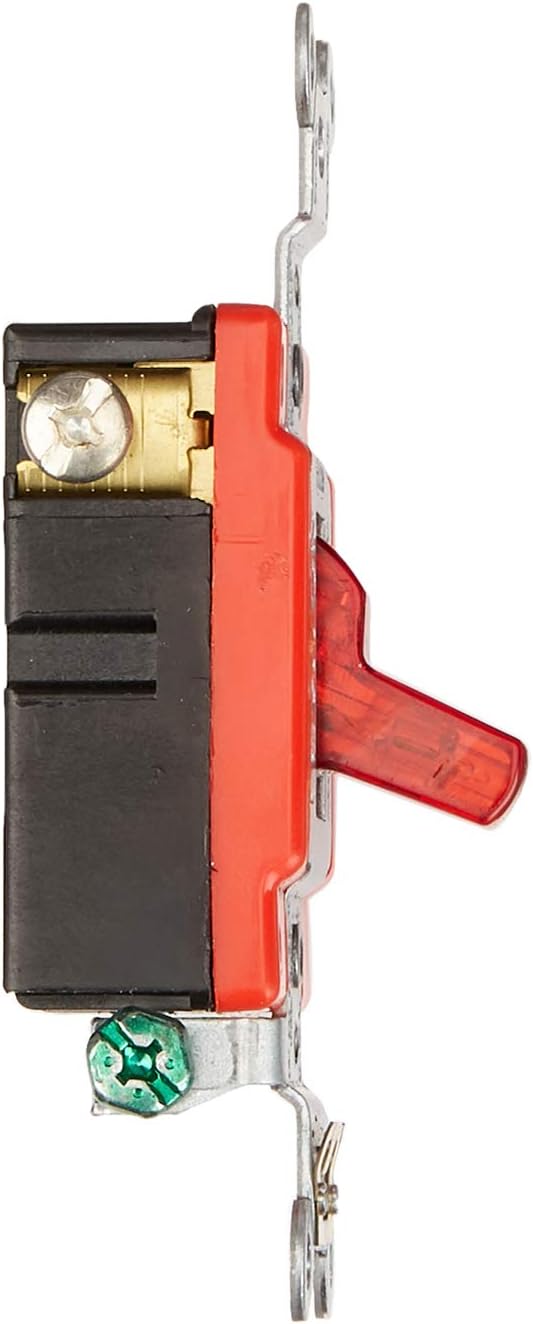

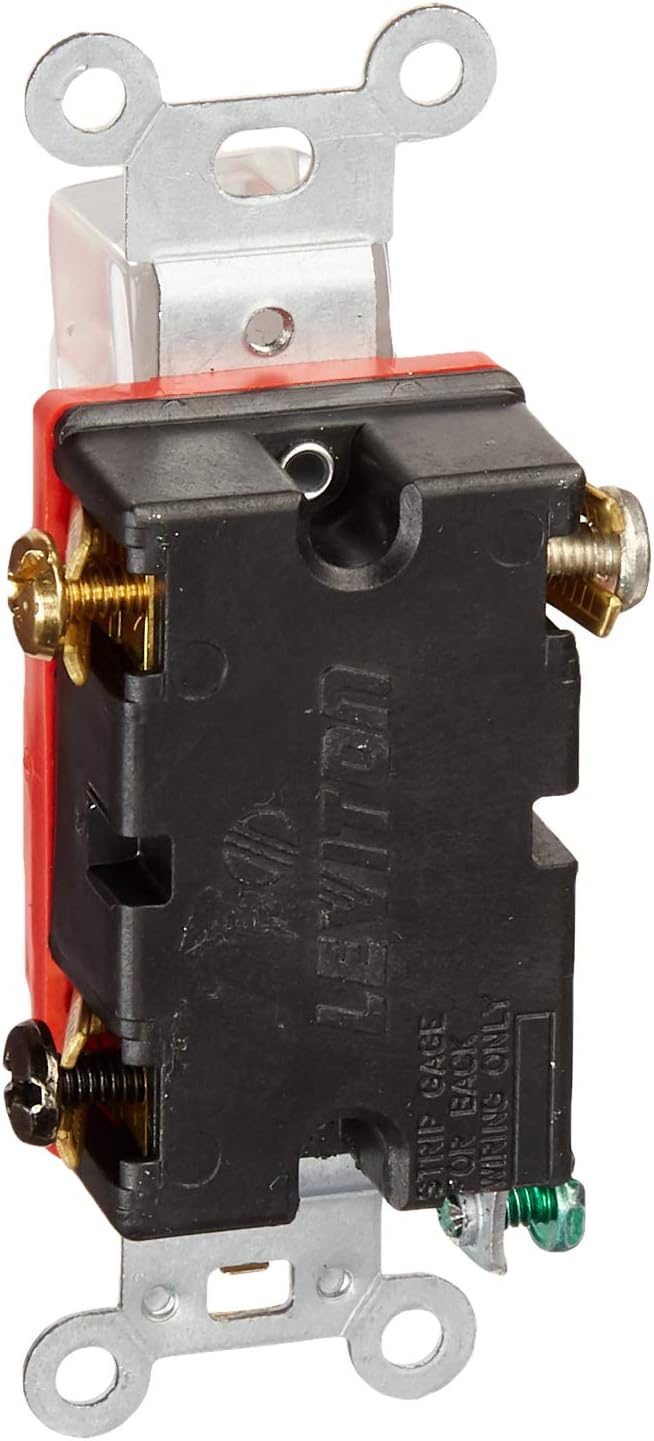

Leviton 1221-PLR Toggle Pilot Light 20-Amp 120 Volt Self Grounding

Product Description

The Leviton 1221-PLR is a toggle switch designed for quiet operation in single-pole applications. This switch operates at 120 volts and has a current rating of 20 amps. It features a built-in illuminated pilot light that indicates when the switch is in use, with a durable thermoplastic body for heavy-duty applications.

• Designed for single-pole use in both commercial and residential settings.
• Illuminated pilot light provides clear visual status of load.
• Self-grounding function enhances safety in use.

Product Highlights

This switch is ideal for various applications needing reliable control and indication. Its robust design makes it suitable for demanding environments, ensuring longevity and performance.

Product Information

Standard Information

• Brand: Leviton
• MPN: 1221-PLR

Technical Specifications

• Voltage Rating: 120 volts
• Amperage Rating: 20 amps
• Contact Configuration: Single pole
• Power Rating: 1 hp
• Operating Cycles: 50000 cycles minimum
• Environmental Conditions: -40 to 65 degrees Celsius
• Enclosure Type: NEMA WD-1/WD-6
• Material: Thermoplastic
• Mounting Type: Surface
• Terminal Type: Back/Side wired
