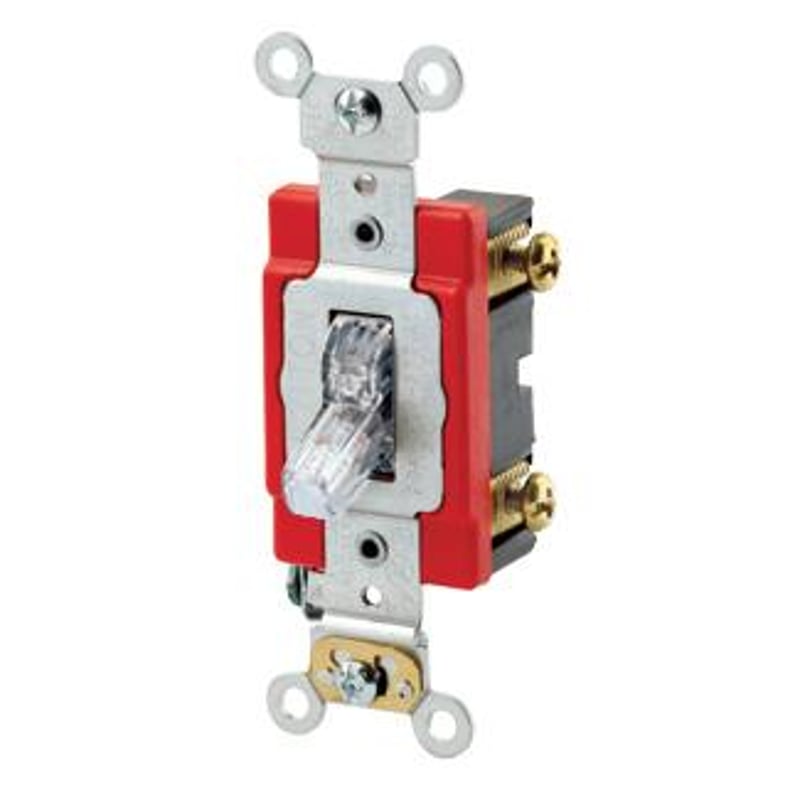

Leviton 1221-7PC AC Quiet Toggle Switch 20 Amp 277 Volt

Product Description

The Leviton 1221-7PC is a 20 Amp, single pole, AC quiet toggle switch designed for commercial applications. Operating at a voltage of two hundred seventy-seven volts, this switch features a pilot light for easy identification of power status. It is equipped with a neutral connection and meets heavy-duty specifications for reliability.

• Compatible with various wiring configurations.
• Self-grounding for enhanced safety.
• Environmentally rated with UL standards.

Product Highlights

Ideal for commercial use, this toggle switch is built to endure regular operations while providing safety features that comply with industry standards.

Product Information

Standard Information

• Brand: Leviton
• Part Number: 1221-7PC

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 277 V
• Number of Poles: 1 Pole
• Actuator Type: Toggle Switch
• Mounting Type: Box
• Environmental Conditions: Rated V-2 per UL94
• Operating Temperature: -40 to +65 DEG C
• Specifications Compliance: UL, ANSI, CSA
