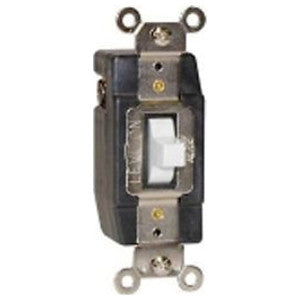

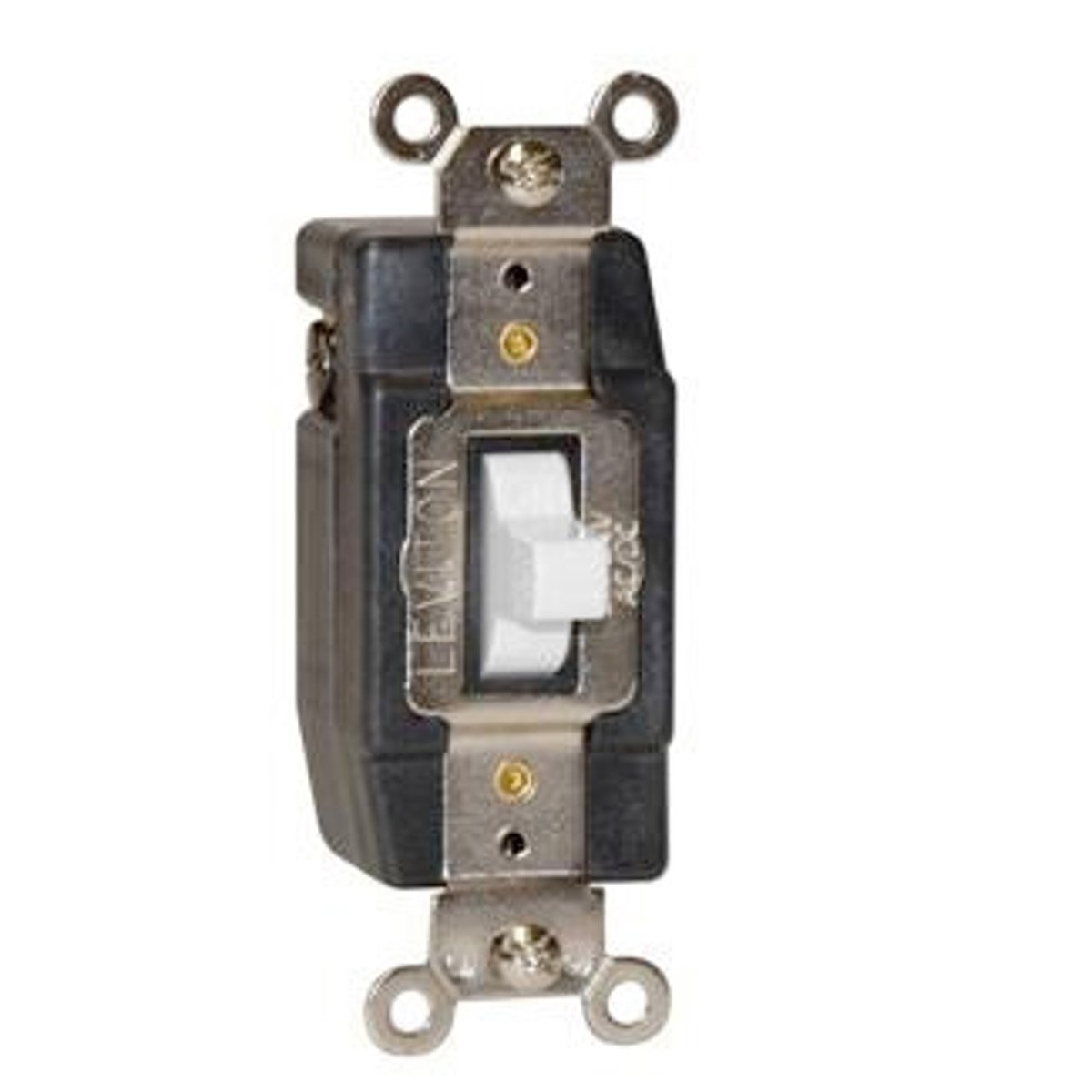

Leviton 1081-W LEV 3A 24V MOM CONT SWITCH

Product Description

The Leviton 1081-W is a 24 Volt AC/DC toggle switch designed for momentary contact applications. This industrial-grade switch is suitable for various commercial uses. It features a toggle actuator and a single-pole design, providing reliable performance in demanding environments.

• Rated for 3 Amps at 24 Volts AC/DC
• Back and side wired for flexible installation
• Self-grounding configuration for enhanced safety

Product Highlights

This switch is ideal for applications such as control panels and low voltage energy systems. It allows for easy integration into various setups while ensuring reliable operation under different conditions.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton Mfg Co

Technical Specifications

• Voltage: 24 Volt
• Current Rating: 3 Amp
• Type: Toggle Switch
• Action: Momentary Contact
• Configuration: SPDT
• Dimensions: 46 H x 1.37 W x 1.95 D inches
• Color: White
• Material: Thermoplastic
• Enclosure Type: Polyester
• Mounting Type: Box
• Connection Type: Back Wired, Side Wired
• Country of Origin: Mexico
• Operating Temperature: -40 to 65 degrees C
