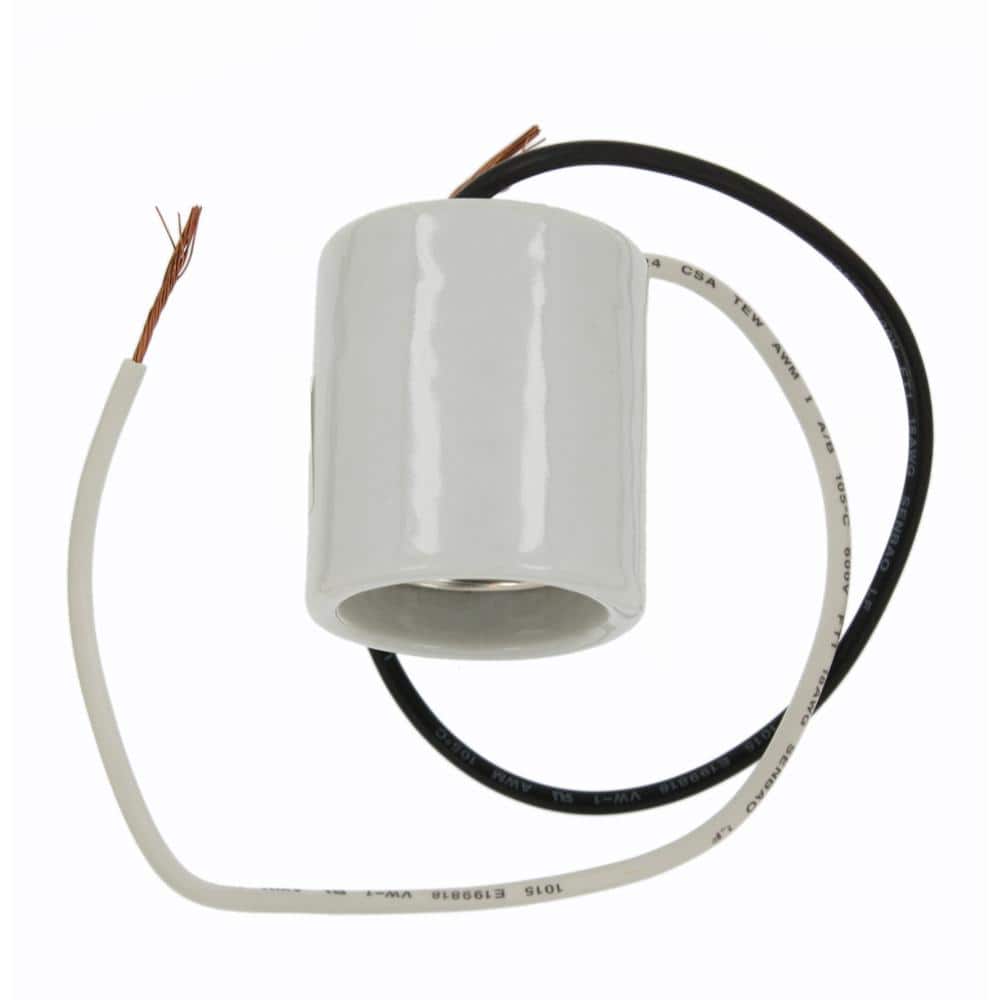

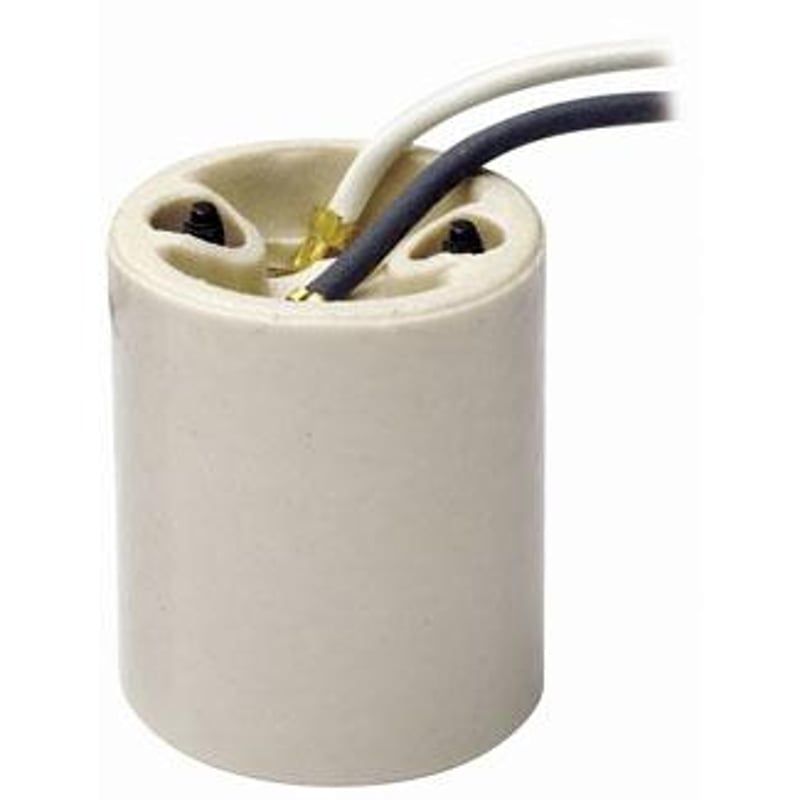

Leviton 10085 medium base one-piece keyless incandescent lampholder

Product Description

The Leviton 10085 is a medium base, one-piece, keyless, incandescent lampholder made of glazed porcelain. It features mounting screws and a single circuit. This lampholder is suitable for commercial applications. It supports a wattage of 660W and a voltage of 250V.

• Medium Base
• One-Piece Construction
• Keyless

Product Highlights

The Leviton 10085 lampholder is ideal for commercial applications requiring a durable and reliable lighting solution.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 10085
• Country of Origin: China

Technical Specifications

• Color: White
• Wattage: 660 watts
• Material: Porcelain
• Base Type: Medium
• Type of Bulb: Incandescent
• Assembled Diameter: 1.5 Inches
• Batteries Included?: No
• Batteries Required?: No
• Installation Method: Screw In
• UNSPSC: 39111803
• Mounting: Bushing
• Standard: UL Listed (E3810 E13396);CSA Certified (LR-1863);NOM Certified (057)
• Connection: Back Wired
• Application: Commercial
• Voltage Rating: 250V
• Brand Name: LEVITON
• Finish: Glazed
• Lamp Base Type: Medium
• Lamp Type: Incandescent
• Lamp Wattage: 660
• Lamp Wattage UOM: W
• Mounting Type: Bushing/Threaded
• Circuit: Single Circuit
• Termination: 9-Inch 18-AWM TEW Wire Leads
• Access: Back Wired
• Body Material: Glazed Porcelain
• Construction: One-Piece
• Lamp Socket Base: Medium
• Lampholder Type: Keyless
• Light Type: Incandescent
• Screw Shell Material: Aluminum
• Standards and Certifications: UL/CSA/NOM
• Shell Material: Aluminum
• Wire Strip Length: 3/4 Inch
• CSA Certified: File LR-1863
• NOM Certified: 057
• UL Listed: File E3810
• Number Of Circuits: 1
• Operator Type: Keyless
• Terminal Type: 18 AWG 9 Inch AWN/TEW Wire Lead
• Maximum Load Capacity: 660 Watt
• Bulb Base: Medium
• Bulb Base Group: Screw-In
• Dimmable: No
• RoHS Compliant: Yes
• UL Recognized: Component
