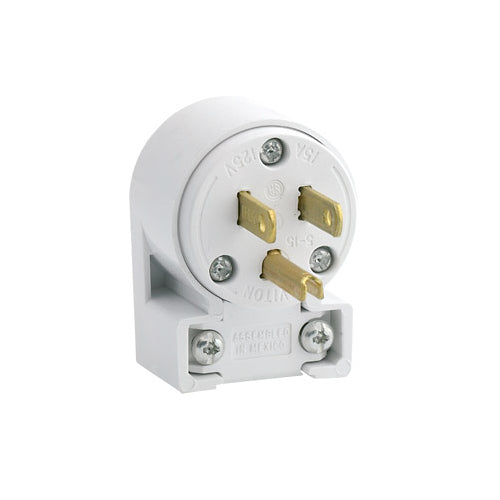

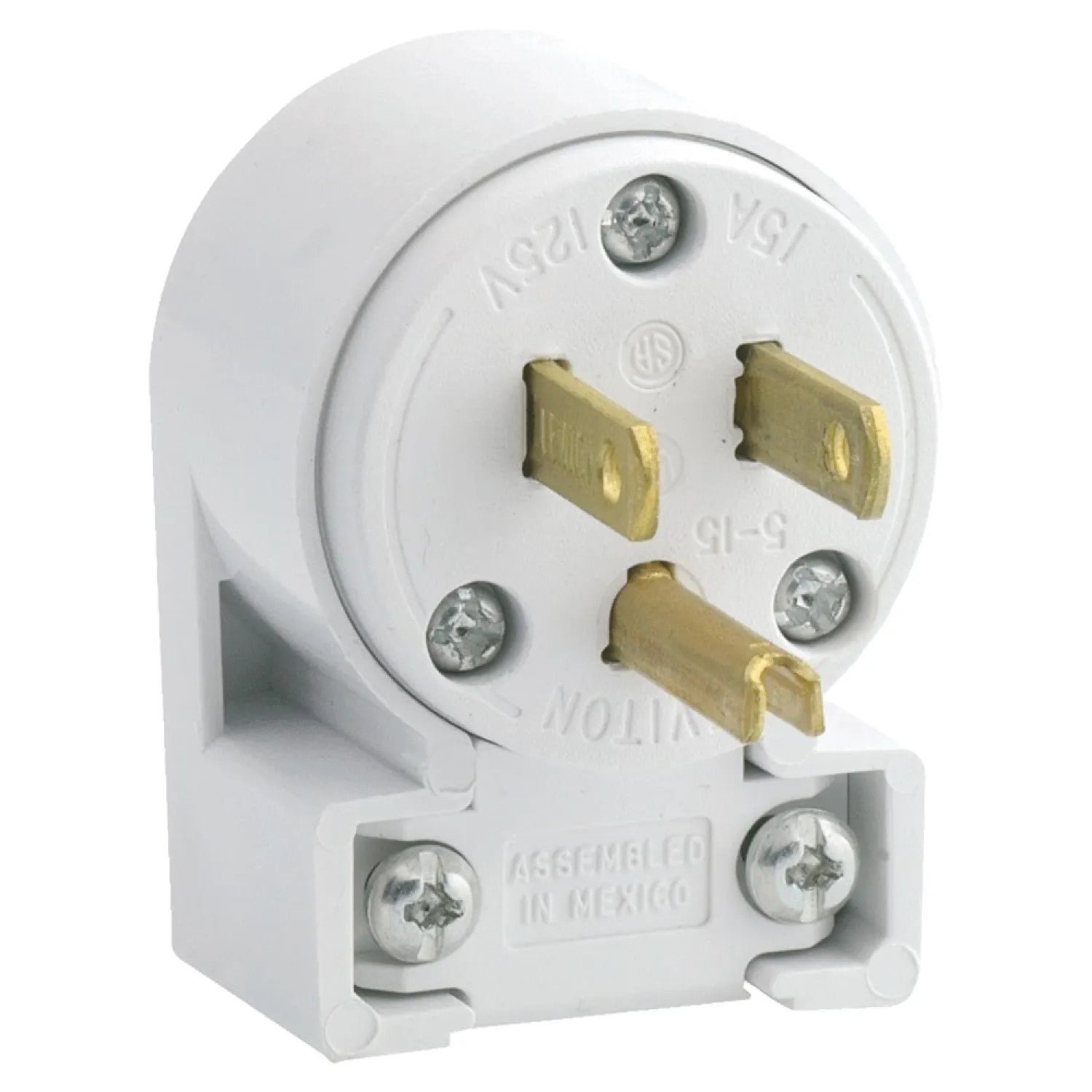

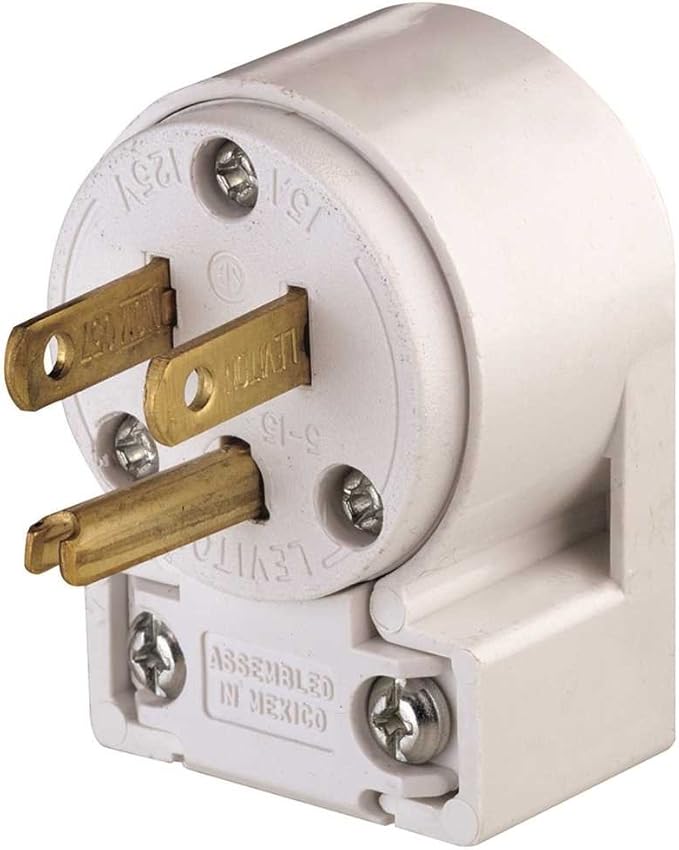

Leviton 000-515AN-000 Angle Plug 15 Amp 125 Volt

Product Description

The Leviton 000-515AN-000 is a 15 Amp, 125 Volt angle plug designed for reliable performance. This NEMA 5-15P, 2-Pole, 3-Wire grounding plug features commercial grade construction. The plug is certified for current interrupting at full rated current and withstands dielectric voltage up to 2000V as per UL498. It is suitable for a wide range of applications due to its robust design and operational temperature range.

• 15 Amp and 125 Volt rating
• Withstands 2000V per UL498
• Designed for standard NEMA 5-15P configurations

Product Highlights

The angle design allows for easy connection in tight spaces. It is suitable for commercial applications and residential use where durability is essential.

Product Information

Standard Information

• Brand: Leviton
• MPN: 000-515AN-000

Technical Specifications

• Amperage: 15 A
• Voltage: 125 VAC
• Grounding: Grounding
• Pole: 2
• Wire: 3
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Operating Temperature: -40 degrees Celsius to 60 degrees Celsius
