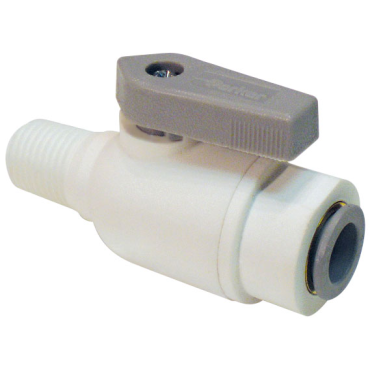

Legris LFPP4VMC6 LIQUIfit Ball Valve

Product Description

The Legris LFPP4VMC6 is a LIQUIfit ball valve designed for reliable connections in various applications. This product features an EPDM D-seal to ensure leak-free operation, alongside a full flow self-cleaning ball mechanism. Its body is made from glass reinforced polypropylene, providing durability in demanding conditions. Users can easily connect it to one-quarter inch tubing and utilize its three-eighth inch NPTF thread.

• Balls made from high temperature, scale-resistant polysulfone
• Temperature range from thirty-five to two hundred degrees Fahrenheit
• Complies with RoHS standards

Product Highlights

This ball valve is intended for use where a secure and efficient flow control is needed. Ideal for plumbing, fluid handling, and HVAC systems, it supports both tubing and NPT connections.

Product Information

Standard Information

• Brand: Legris
• Part Number: 101702948

Technical Specifications

• End Size: 1/4 Tube
• Thread Size: 3/8 in (NPTF)
• Thread Type: NPTF
• Body Material: Polypropylene
• Overall Length: 2.4 in
• Weight: 0.51 LB
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: 35 °F
• Fitting Description: Valve Male Connector
• End Types: Tubing & NPT
• Tube O.D.: 1/4 in
