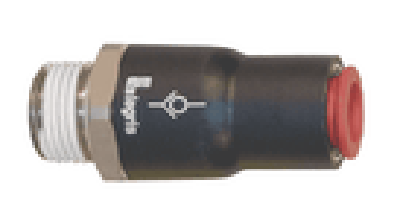

Legris 79956014 Check Valve

Product Description

The Legris check valve, model 79956014, is designed for reliable inline operation. It allows air to flow in one direction while preventing backflow. The body features a clear arrow indicating the direction of air flow. With a minimum pressure of 7 psi, the valve opens for air passage, and it shuts off when pressure drops below 3.6 psi.

• One-piece construction design
• Push-to-connect tube fitting
• Compact and lightweight

Product Highlights

This check valve is suitable for various pneumatic applications where air flow control is essential.

Product Information

Standard Information

• Brand: Legris
• MPN: 79956014

Technical Specifications

• End Type: Male Threaded Check Valve (Meter Out)
• Operating Pressure Range: 15 psi to 145 psi
• Thread Type: NPT
• Male Thread Size: 1/4 inches
• Tube Size: 0.375 inches
• Pressure Max: 145 psi
• Seal Material: Buna-N
• Material: Composite, Nickel-Plated Brass
• Direction of Flow: Meter-Out
• Weight: 0.039 LB
• EAN or UPC: 820099545967
