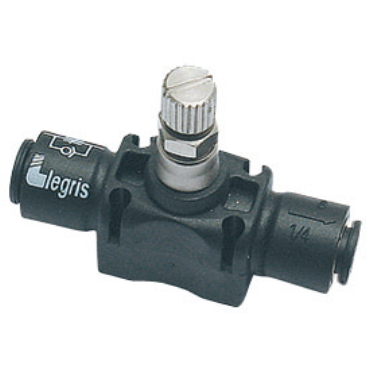

Legris 77706200 In-Line Flow Control Valve

Product Description

The Legris 77706200 is an in-line flow control valve designed for unidirectional flow management. This valve allows intake air to flow freely while exhausting air is metered through an adjustable screw. A directional arrow on the valve body shows the proper flow direction. The valve includes two joining clips for easy installation.

• Unidirectional flow control
• External screw adjustment for precise metering
• Includes two joining clips for installation

Product Highlights

This valve is suitable for various applications in fluid control systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 77706200

Technical Specifications

• Inch/Metric: Inch
• Direction of Flow: One-Way
• Pressure [Min]: 15 psi
• Adjustment Type: External Knob/Screw
• Overall Length: 3.350 inches
• Tube OD: 1/2 inches
• Configuration: In-Line
• Material: Composite
• Pressure [Max]: 145 psi
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Connection Type: Push-To-Connect In-Line
• Weight: 0.347 lb
• EAN or UPC: 820099518763
