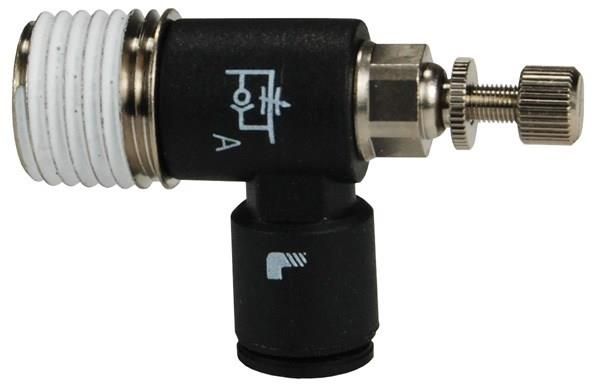

Legris 76655614 Miniature Meter-Out Flow Control

Product Description

Legris 76655614 is a miniature meter-out flow control valve designed for precise control of air flow in pneumatic systems. This valve is mounted directly to cylinders, allowing for efficient exhaust air regulation through an external adjustment screw. It effectively manages the speed of a cylinder by controlling the outflow of air.

• Composite 90 Degree Male Thread to Tube Flow Regulator
• Designed for Meter-Out operation
• Features external screw adjustment

Product Highlights

Compact flow control solution for pneumatic systems utilizing a one-piece composite design.

Product Information

Standard Information

• Brand: Legris
• MPN: 76655614

Technical Specifications

• Material: Composite
• Tube OD: 1/4 in
• Connection Type: Male Thread to Tube
• Pressure Max: 145 psi
• Pressure Min: 15 psi
• Temperature Range Min: 30 °F
• Temperature Range Max: 160 °F
• Overall Length: 0.770 in
• Overall Height Max: 1.280 in
• Cylinder Diameter: 0.47 in
• Orifice Size: 4 mm
• Adjustment Type: External Knob/Screw
