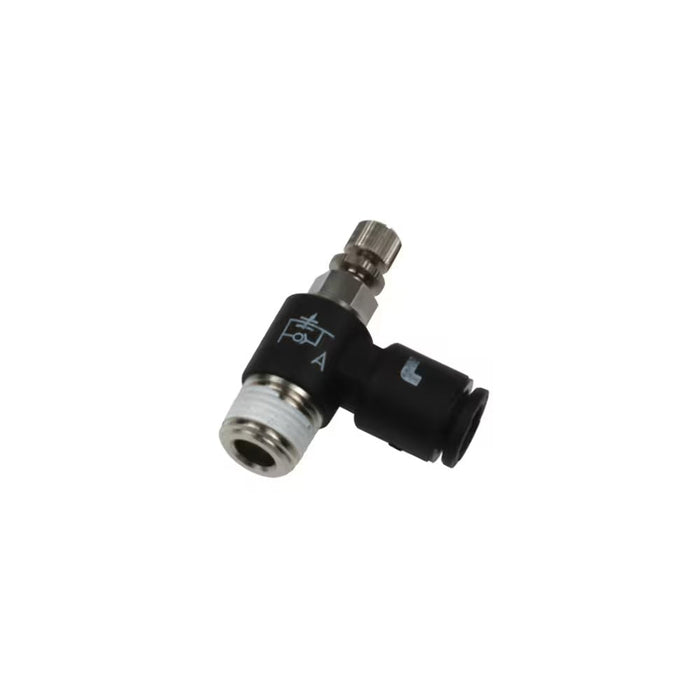

Legris 76655311 Miniature Meter-Out Flow Control

Product Description

Legris 76655311 is a miniature meter-out flow control. This component connects directly to cylinders. The design allows air to flow in freely while the exhaust air is regulated through an adjustment screw. This provides control over the speed of the cylinder by managing the exhaust rate.

• One-piece construction for robust use
• Pre-applied thread sealant on tapered threads
• Compact, right-angle design enables space-saving installations

Product Highlights

This flow control features a push-to-connect fitting for easy integration and a recessed adjustment screw to prevent unintended changes.

Product Information

Standard Information

• Brand: Legris
• MPN: 76655311

Technical Specifications

• Male Thread Size: 1/8
• Tube O.D.: 1/8 inches
• Material: Composite
• Temperature Range (Min): 30 °F
• Temperature Range (Max): 160 °F
• Pressure (Min): 15 psi
• Pressure (Max): 145 psi
• Adjustment Type: External Knob/Screw
• Direction of Flow: Meter-Out
• Configuration: 90°
