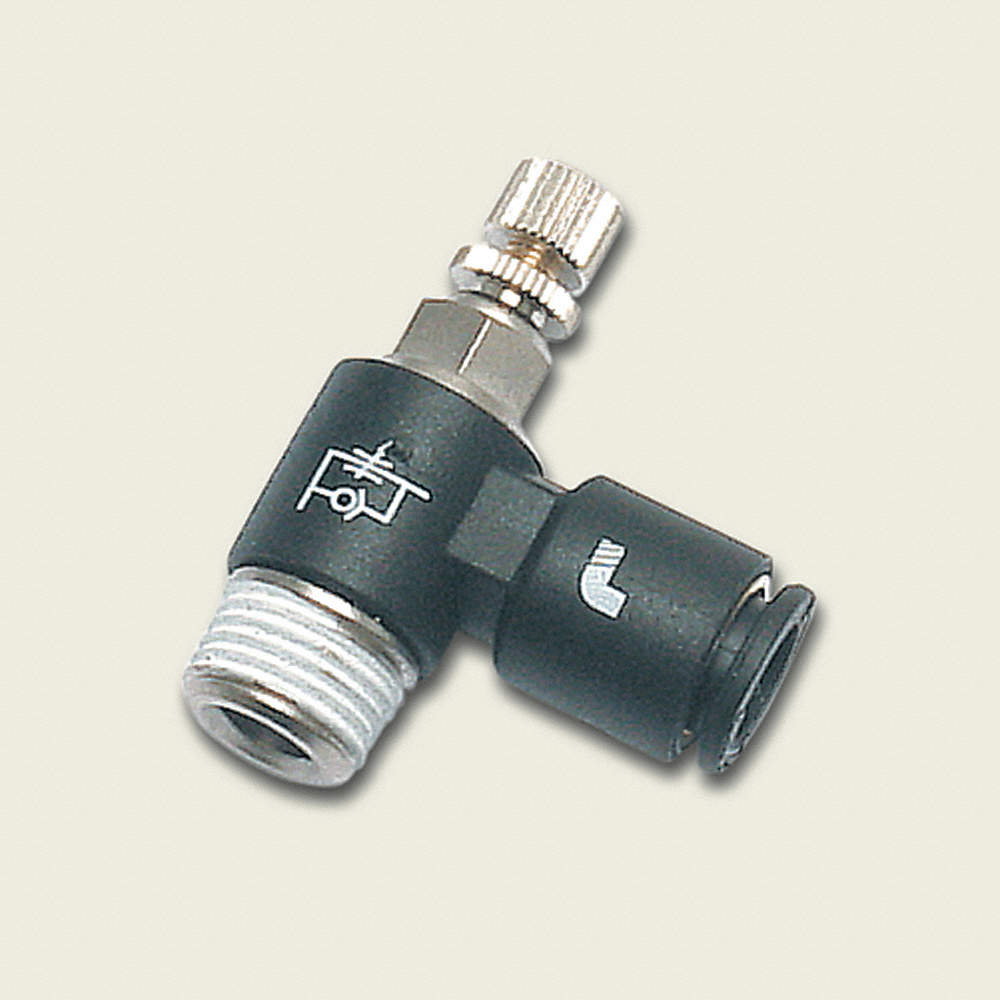

Legris 76650817 Miniature Meter-Out Flow Control

Product Description

Legris presents the 76650817, a miniature meter-out flow control designed for precise regulation of exhaust air. These flow control valves are specifically made for direct attachment to cylinders. The design ensures that intake air moves freely, while exhaust air is carefully metered out through an adjustable screw. This feature allows for effective speed control of the cylinder by managing exhaust air flow.

• Compact, right-angle installation
• Special adjustment screw for flow regulation
• One-piece construction for durability

Product Highlights

This flow control regulates air exhaust and features a secure, recessed adjustment for ease of use.

Product Information

Standard Information

• Brand: Legris
• MPN: 76650817

Technical Specifications

• Connection Type: Male Thread to Tube
• Pressure [Max]: 145 psi
• Pressure [Min]: 14.5 psi
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 158 °F
• Tube OD: 5/16 in, 8 mm
• Adjustment Type: External Knob/Screw
• Direction of Flow: Meter-Out
• Male Thread Type: BSPT
• Male Thread Size: 3/8
• Material: Composite
• Configuration: 90°
