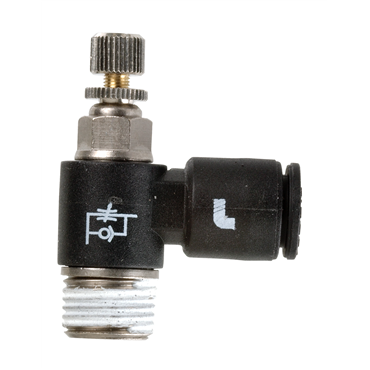

Legris 76650813 Miniature Meter-Out Flow Control

Product Description

Legris 76650813 is a miniature meter-out flow control valve designed for precise airflow regulation. It connects directly to cylinders, allowing intake air to flow freely while metering exhaust air through an adjustment screw. This mechanism controls the cylinder's speed by regulating exhaust air, providing straightforward, controlled performance.

• Composite 90 Degree Male Thread to Tube Flow Regulator
• Features external screw adjustment
• Compatible with 1/4 BSPT thread and 8 mm tube OD

Product Highlights

Compact design, easy installation, and reliable performance make it suitable for various pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 76650813

Technical Specifications

• Pressure [Min]: 15 psi
• Pressure [Max]: 145 psi
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Connection Type: Male Thread to Tube
• Male Thread Type: BSPT
• Male Thread Size: R1/4
• Tube OD: 8 mm, 5/16 in
• Material: Composite
• Configuration: 90°
• Adjustment Type: External Knob/Screw
• Weight: 0.058 LB
• EAN or UPC: 820099329079
