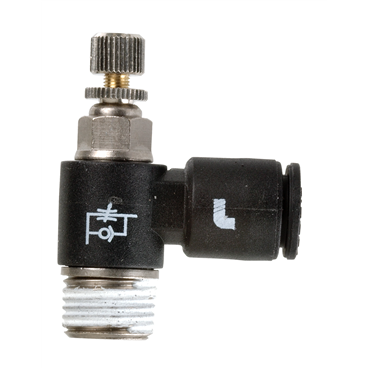

Legris 76650613 Miniature Meter-Out Flow Control

Product Description

Legris miniature meter-out flow control is designed to manage the speed of cylinder operations effectively. This flow control valve mounts directly to cylinders allowing intake air to flow freely. Exhaust air is regulated through a specialized adjustment screw.

• Compact right-angle installation
• Complete with push-to-connect fitting
• 360-degree rotation for easy assembly

Product Highlights

Optimal for controlling exhaust air for cylinder speed management.

Product Information

Standard Information

• Brand: Legris
• Part Number: 76650613

Technical Specifications

• Connection Type: Male Thread to Tube
• Temperature Range Min: 30 °F
• Temperature Range Max: 160 °F
• Height Max: 30.000 mm
• Height Min: 27.500 mm
• Male Thread Size: R1/4
• Male Thread Type: BSPT
• Pressure Max: 145 psi
• Pressure Min: 15 psi
• Weight: 0.049 LB
• Material: Composite
• Direction of Flow: Meter-Out
• Configuration: 90°
• Hex Size: 8 mm
• Tube OD: 6 mm
