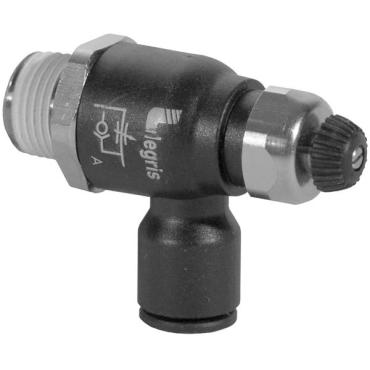

Legris 76650411 Miniature Meter-Out Flow Control

Product Description

Legris 76650411 is a miniature meter-out flow control designed for use with cylinders. This flow control valve allows for smooth air intake with regulated exhaust. The speed of the cylinder is managed through a unique adjustment screw.

• One-piece construction design
• Compact, right-angle installation capability
• Secure connection to prevent unwanted adjustments

Product Highlights

This flow control valve provides reliable performance and is easy to install and adjust.

Product Information

Standard Information

• Brand: Legris
• MPN: 76650411

Technical Specifications

• Configuration: 90 degrees
• Inch/Metric: Inch
• Cylinder Diameter: 0.45 inches
• Overall Length: 0.710 inches
• Temperature Range Max: 160 °F
• Pressure Min: 15 psi
• Pressure Max: 145 psi
• Connection Type: Male Thread to Tube
• Male Thread Size: 1/8 NPT
• Material: Composite
• Orifice Size: 2 mm
• Adjustments Type: External Knob/Screw
• Weight: 0.028 LB
• EAN or UPC: 820099328850
