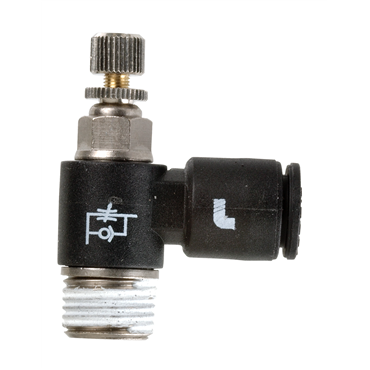

Legris 76605620 Miniature Meter-Out Flow Control

Product Description

Legris 76605620 is a miniature meter-out flow control valve designed for efficient control of cylinder speeds. This valve allows intake air to flow freely while regulating the exhaust air through a specialized adjustment screw, enhancing operational precision.

• Compact design for tight spaces
• Easy installation with push-to-connect fitting
• 360° rotation for convenient assembly

Product Highlights

The Legris flow control valve features a one-piece construction that ensures durability and reliability in various pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 76605620

Technical Specifications

• Direction of Flow: Meter-Out
• Male Thread Type: UNF
• Tube OD: 1/4 in
• Adjustment Type: External Knob/Screw
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Overall Height [Min]: 0.930 in
• Overall Height [Max]: 1.020 in
• Pressure [Min]: 15 psi
• Pressure [Max]: 145 psi
• Orifice Size: 2 mm
• Material: Composite
• Configuration: 90°
• Cylinder Dia.: 0.35 in
• Weight: 0.015 LB
• EAN or UPC: 820099328522
