LEGRIS 76600619 CONTROL & CIRCUIT BOARDS
LEGRIS 76600619 CONTROL & CIRCUIT BOARDS

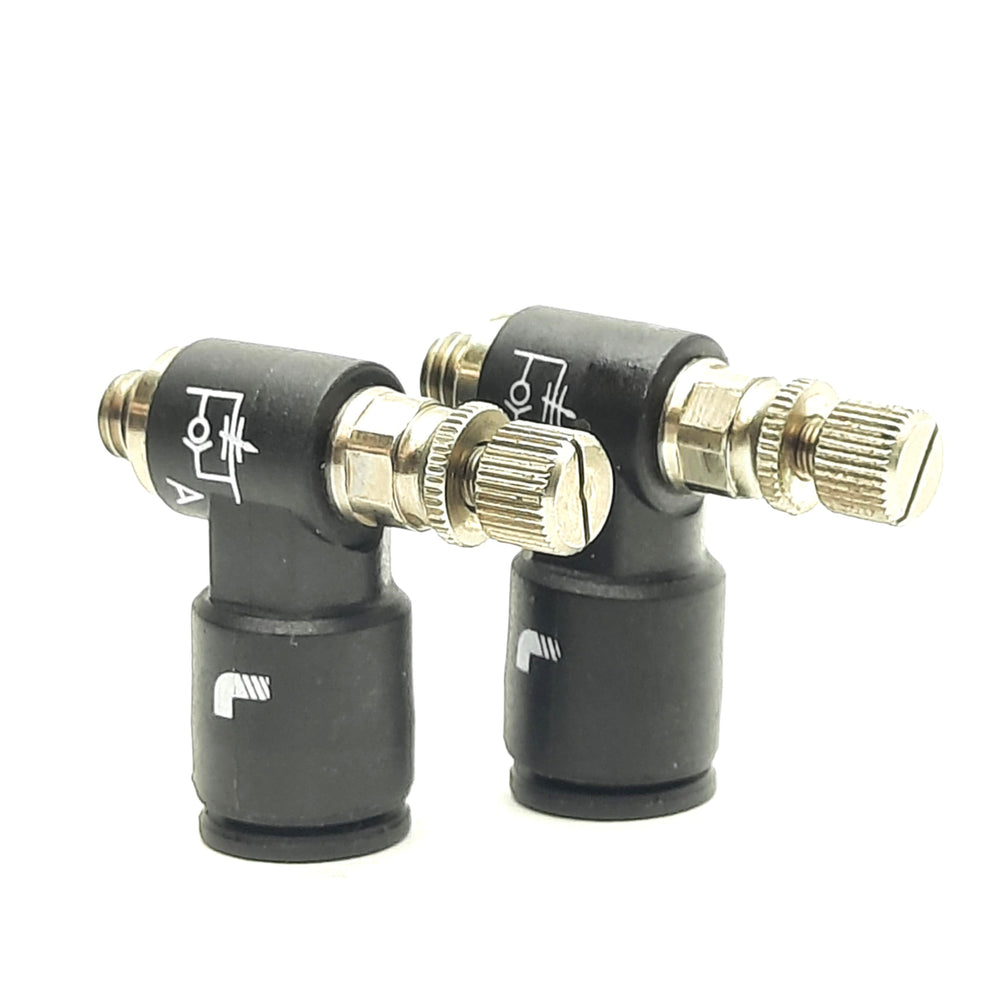

Legris 76600619 Miniature Meter-Out Flow Control

Brand: LEGRIS
SKU: 76600619
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Legris 76600619 is a miniature meter-out flow control valve designed for direct mounting on cylinders. It allows for unrestricted intake air flow while carefully metering exhaust air with a precision adjustment screw. This mechanism controls the operation speed of the cylinder by regulating the exhaust air.

  • One-piece design ensures durability
  • Features tapered threads with pre-applied thread sealant
  • Compact 90-degree configuration

Product Highlights

This flow control valve integrates a push-to-connect fitting, allowing for easy installation and a secure connection.

Product Information

Standard Information

  • Brand: Legris
  • Part Number: 76600619
Technical Specifications
Tube O.D.
6 mm
Temperature Range [Min]
30 °F
Overall Height [Min]
1.060 inches
Pressure [Max]
145 psi
Temperature Range [Max]
160 °F
Direction of Flow
Meter-Out
Overall Height [Max]
1.160 inches
Connection Type
Male Thread to Tube
Material
Composite
Adjustment Type
External Knob/Screw
