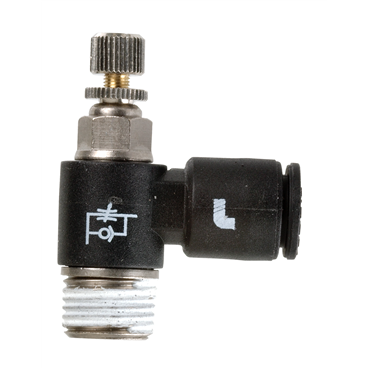

Legris 76600610 Miniature Meter-Out Flow Control

Product Description

Legris 76600610 is a miniature meter-out flow control designed for efficient flow regulation in pneumatic systems. This valve connects directly to cylinders and allows for precise control of exhaust air. It is ideal for applications requiring compact installation and reliable performance.

• Compact right-angle design
• External screw adjustment for easy setting
• Push-to-connect fitting for quick installation

Product Highlights

Utilizes a one-piece construction for durability. The tapered threads come with pre-applied sealant to prevent leaks. Its design also allows for 360-degree rotation for easy assembly.

Product Information

Standard Information

• Brand: Legris
• MPN: 76600610

Technical Specifications

• Overall Length: 3/4 inches
• Configuration: 90 degrees
• Material: Composite
• Cylinder Diameter: 0.45 inches
• Overall Height (Min): 1.060 inches
• Direction of Flow: Meter-Out
• Adjustment Type: External Knob/Screw
• Tube O.D.: 6 mm
• Connection Type: Male Thread to Tube
• Orifice Size: 4 mm
• Overall Height (Max): 1.160 inches
• Male Thread Type: BSPP
• Male Thread Size: 1/8
• Pressure (Max): 145 psi
• Temperature Range (Min): 30 °F
• Temperature Range (Max): 160 °F
• Weight: 0.026 LB
• EAN or UPC: 820099328195
