Legris 76600419 Miniature Meter-Out Flow Control

Product Description

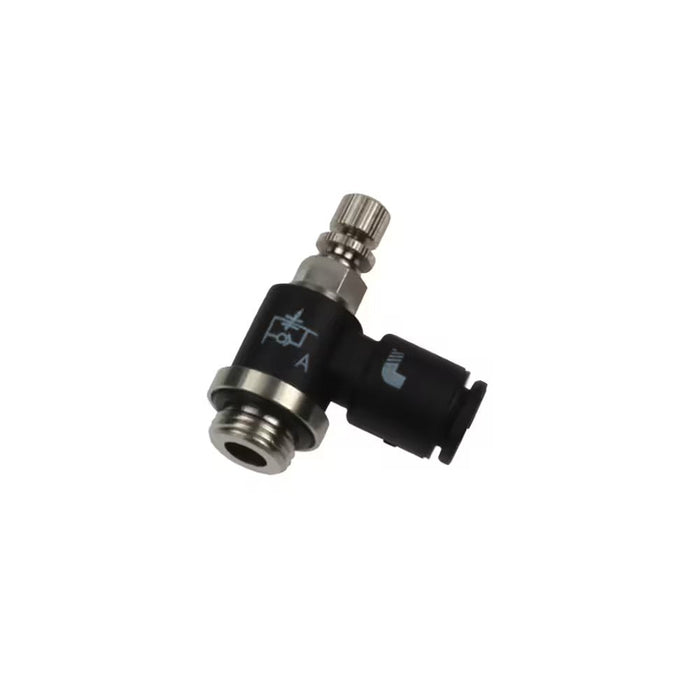

Legris 76600419 is a miniature meter-out flow control valve designed to mount directly to cylinders. It allows for precise control of exhaust air, helping to manage the speed of cylinders. The intake air flows freely, while exhaust air is carefully regulated by an adjustment screw.

• Compact right-angle installation
• External adjustment screw for easy flow regulation
• One-piece construction for reliability

Product Highlights

This flow control valve features a secure connection and rotates easily for installation.

Product Information

Standard Information

• Brand: Legris
• MPN: 76600419

Technical Specifications

• Direction of Flow: Meter-Out
• Tube OD: 0.15625 inches, 4 mm
• Pressure [Min]: 15 psi
• Configuration: 90 degrees
• Male Thread Type: Metric
• Cylinder Diameter: 0.35 inches
• Temperature Range [Max]: 160 °F
• Male Thread Size: M5
• Pressure [Max]: 145 psi
• Connection Type: Male Thread to Tube
• Material: Composite
• Orifice Size: 2 mm
• Overall Length: 0.670 inches
• Overall Height [Max]: 1.020 inches
• Overall Height [Min]: 0.930 inches
• Weight: 0.018 LB
• EAN or UPC: 820099328027
