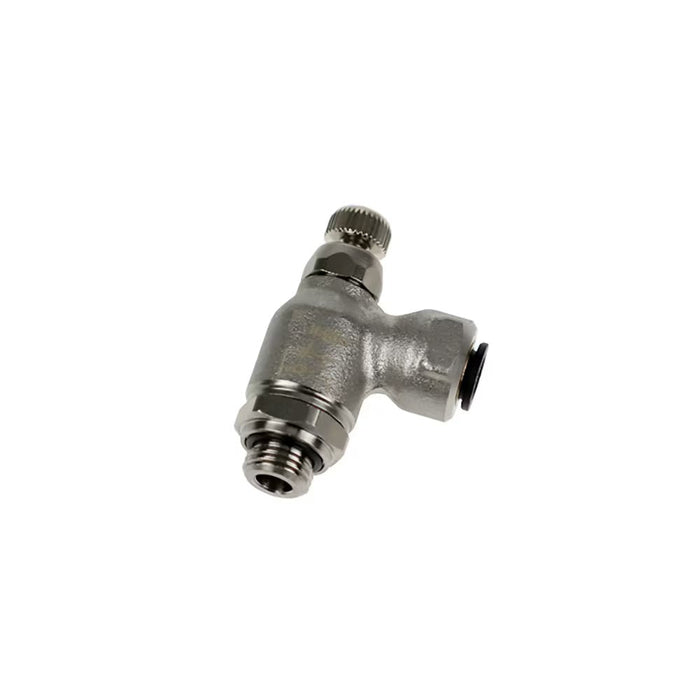

Legris 7100 10 17 Compact Meter-Out Flow Control

Product Description

The Legris 71001017 is a compact meter-out flow control regulator designed for precise control of exhaust air in pneumatic systems. It features a durable brass construction and connects easily to cylinders, allowing for efficient airflow management.

• Compact design for right-angle installation
• External screw adjustment for easy flow regulation
• Compatible with 10 mm tube OD

Product Highlights

This flow control valve ensures a controlled exhaust, enhancing the performance of pneumatic equipment.

Product Information

Standard Information

• Brand: Legris
• MPN: 71001017

Technical Specifications

• Configuration: 90 degrees
• Material: Brass
• Male Thread Size: 3/8 BSPP
• Tube OD: 10 mm
• Pressure [Max]: 145 psi
• Pressure [Min]: 15 psi
• Temperature Range [Max]: 160 °F
• Temperature Range [Min]: 30 °F
• Direction of Flow: Meter-Out
• Adjustment Type: External Screw
• Weight: 0.354 LB
• EAN or UPC: 820099322711
