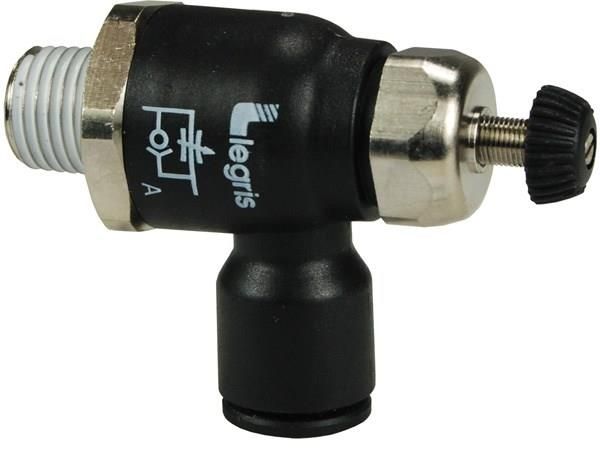

Legris 70655614 Compact Meter-Out Flow Control

Brand: LEGRIS
SKU: 70655614
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Legris compact meter-out flow control model 70655614 is designed for precise control of exhaust air in pneumatic systems. This device is ideal for mounting directly to cylinders, allowing air to flow freely during intake while metering the exhaust through a specialized adjustment screw. This control mechanism facilitates the regulation of cylinder speed effectively.

  • Composite 90-degree male thread to tube flow regulator
  • Features knob adjustment for easy operation
  • 1/4 NPT thread for compatibility with standard fittings

Product Highlights

This meter-out control valve supports compact installations and enhances system performance with secure assembly and adjustment options.

Product Information

Standard Information

  • Brand: Legris
  • MPN: 70655614
Technical Specifications
Adjustment Type
External Knob/Screw
Inch/Metric
Inch
Overall Length
1.030 inches
Pressure [Min]
15 psi
Tube OD
1/4 inches
Overall Height [Max]
1.720 inches
Connection Type
Male Thread to Tube
Cylinder Diameter
0.64 inches
Overall Height [Min]
1.5 inches
Orifice Size
0.16 inches
Pressure [Max]
145 psi
Material
Composite
Temperature Range [Min]
30 °F
Temperature Range [Max]
160 °F
Direction of Flow
Meter-Out
Male Thread Type
NPT
Male Thread Size
1/4 inches
Weight
0.06 LB
EAN or UPC
820099321790
