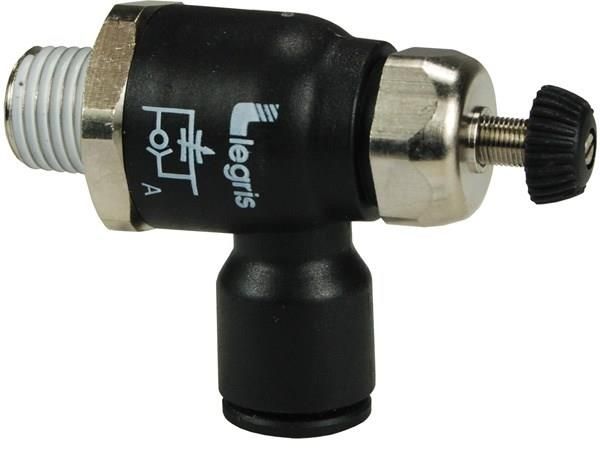

Legris 70655611 Compact Meter-Out Flow Control

Product Description

The Legris 70655611 is a compact meter-out flow control designed for various pneumatic applications. It allows for direct mounting on cylinders, letting intake air flow through freely while exhaust air is regulated using an adjustment screw. This mechanism controls cylinder speed efficiently.

• Made with one-piece construction for durability.
• Tapered threads come with pre-applied sealant for a secure fit.
• Integral push-to-connect fitting for easy installation.

Product Highlights

This flow control features a recessed screw for added safety, preventing accidental adjustments. Its design allows for rotation of up to three hundred sixty degrees for simple assembly.

Product Information

Standard Information

• Brand: Legris
• MPN: 70655611

Technical Specifications

• Adjustment Type: External Knob/Screw
• Configuration: 90 degrees
• Overall Length: 1.030 inches
• Temperature Range: 30 to 160 degrees Fahrenheit
• Tube O.D.: 1/4 inches
• Orifice Size: 0.16 inches
• Overall Height: 1.700 inches maximum, 1.480 inches minimum
• Pressure: 15 psi minimum, 145 psi maximum
• Material: Composite
• Male Thread Type: NPT
• Male Thread Size: 1/8 inches
