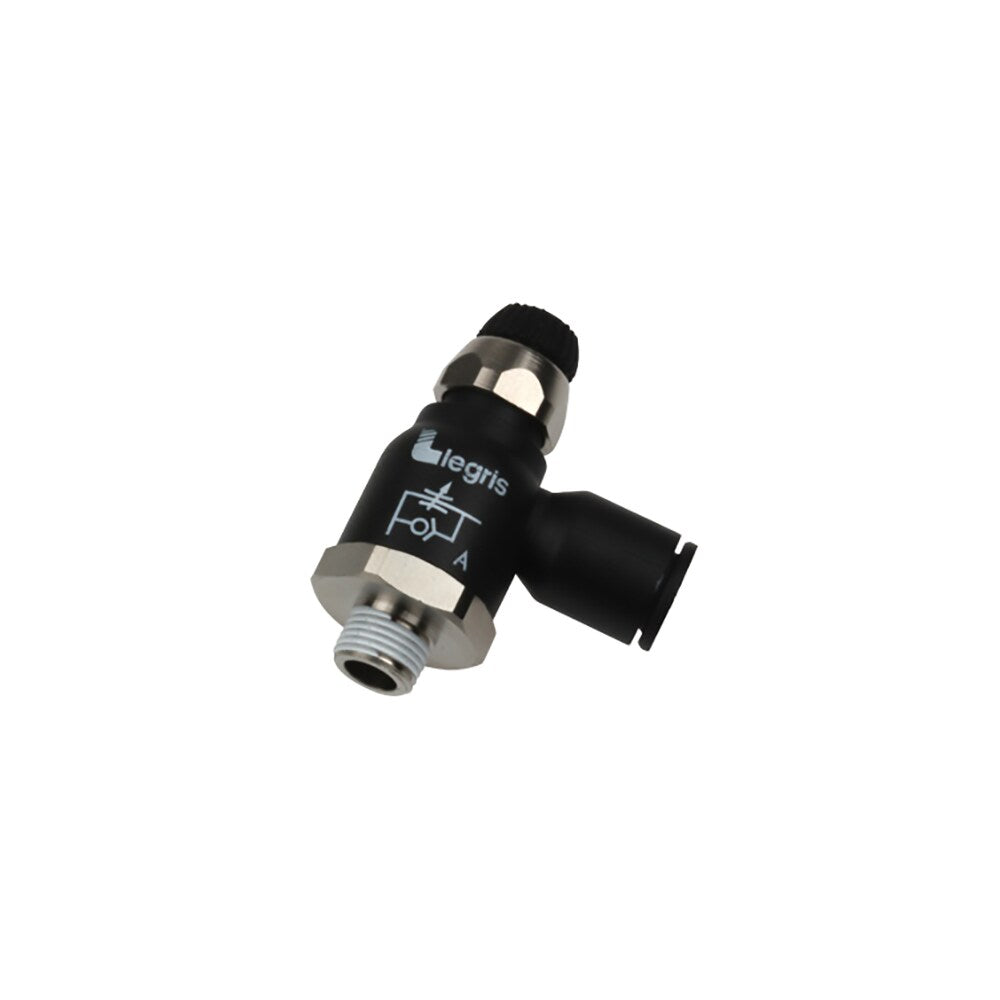

Legris 70651217 Compact Meter-Out Flow Control

Product Description

Legris offers the 70651217 Compact Meter-Out Flow Control. This flow control valve mounts directly to cylinders. It allows intake air to flow freely while the exhaust air is metered out using an adjustment screw. You can control the speed of a cylinder by regulating exhaust air.

• One-piece construction design
• Tapered threads with pre-applied thread sealant
• Allows compact right-angle installation

Product Highlights

This compact flow control valve is suitable for various applications in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 70651217

Technical Specifications

• Pressure (Min): 15 psi
• Pressure (Max): 145 psi
• Material: Composite
• Male Thread Size: 3/8
• Male Thread Type: BSPT
• Tube OD: 12 mm
• Temperature Range (Min): 30 °F
• Temperature Range (Max): 160 °F
• Direction of Flow: Meter-Out
• Adjustment Type: Knob
• Connection Type: Male Thread to Tube
• Configuration: 90°
• Weight: 0.138 LB
• EAN or UPC: 820099321684
