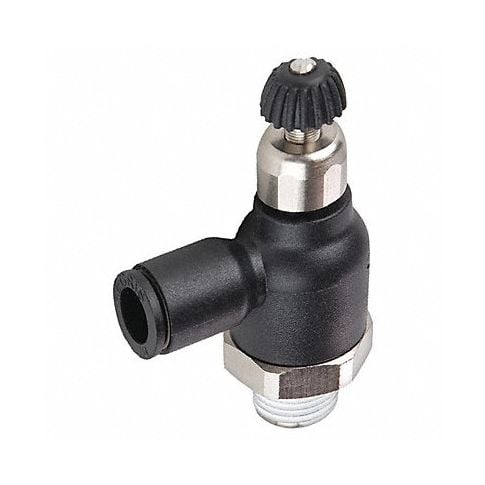

Legris 70651021 Compact Meter-Out Flow Control

Product Description

Legris 70651021 compact meter-out flow control is designed for direct mounting on cylinders. This valve allows intake air to flow freely while controlling the exhaust air through an adjustment screw. The speed of the cylinder is modulated by regulating the exhaust air.

• Composite construction for durability
• Knob adjustment for easy flow control
• 360-degree rotation for convenient installation

Product Highlights

Compact design ideal for space-saving installations in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 70651021

Technical Specifications

• Direction of Flow: Meter-Out
• Material: Composite
• Connection Type: Male Thread to Tube
• Male Thread Type: BSPT
• Male Thread Size: 1/2
• Tube OD: 10 mm
• Adjustment Type: Knob
• Pressure [Max]: 145 psi
• Pressure [Min]: 15 psi
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Configuration: 90°
• Weight: 0.132 LB
• EAN or UPC: 820099321622
