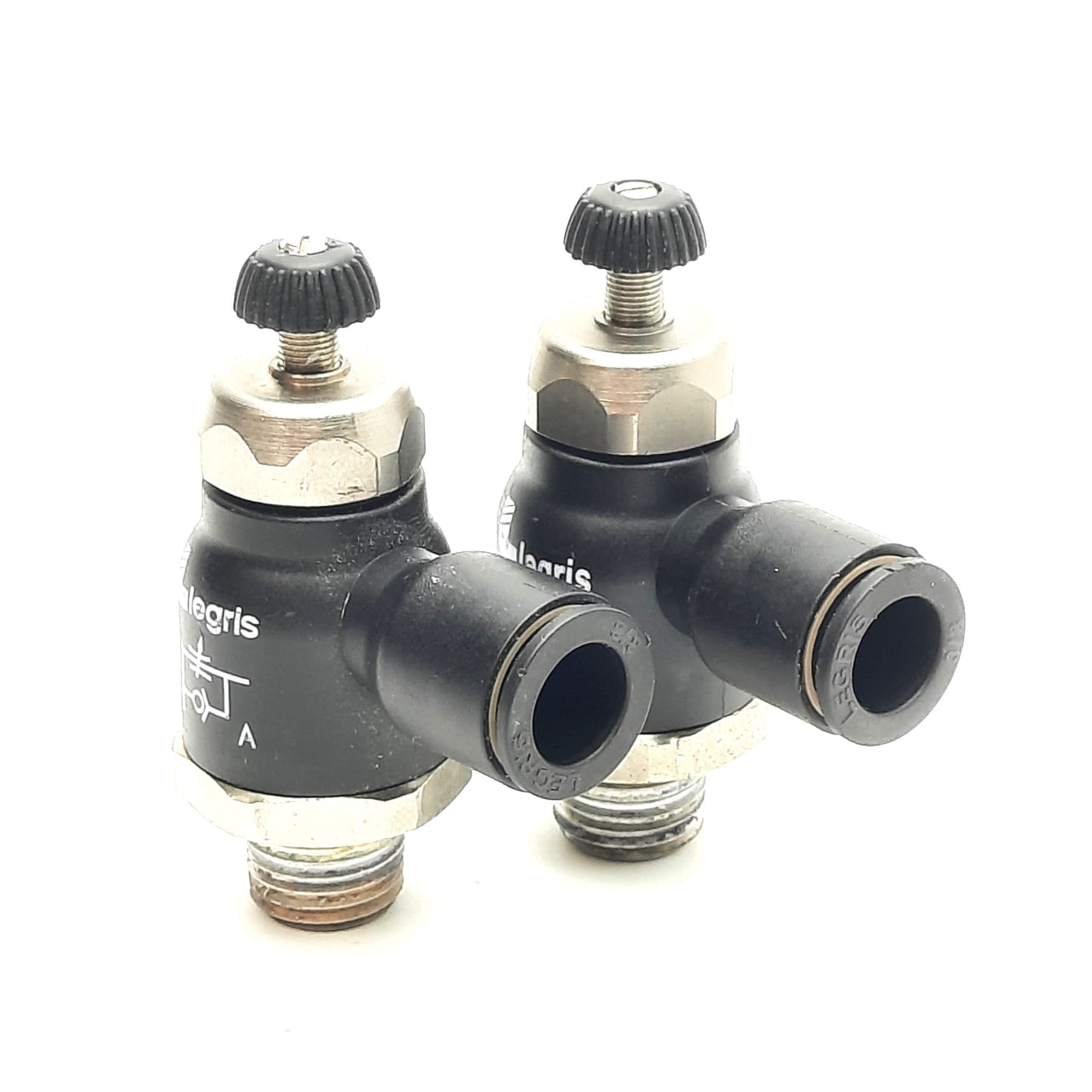

Legris 70651013 Compact Meter-Out Flow Control

Product Description

The Legris 70651013 is a compact meter-out flow control designed for efficient air management in pneumatic systems. This flow regulator mounts directly to cylinders, allowing for easy installation. It controls the exhaust air and regulates the cylinder speed through a knob adjustment mechanism.

• One-piece construction for durability
• 360-degree rotation for flexible installation
• Integrates push-to-connect fitting for ease of use

Product Highlights

This flow control valve features a low-profile design suitable for tight spaces. The tapered threads ensure a secure seal while the recessed screw prevents accidental adjustments.

Product Information

Standard Information

• Brand: Legris
• MPN: 70651013

Technical Specifications

• Direction of Flow: Meter-Out
• Pressure [Min]: 15 psi
• Pressure [Max]: 145 psi
• Tube OD: 10 mm
• Male Thread Type: BSPT
• Male Thread Size: 1/4
• Material: Composite
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Adjustment Type: Knob
• Configuration: 90°
• Weight: 0.125 lb
• EAN or UPC: 820099321547
