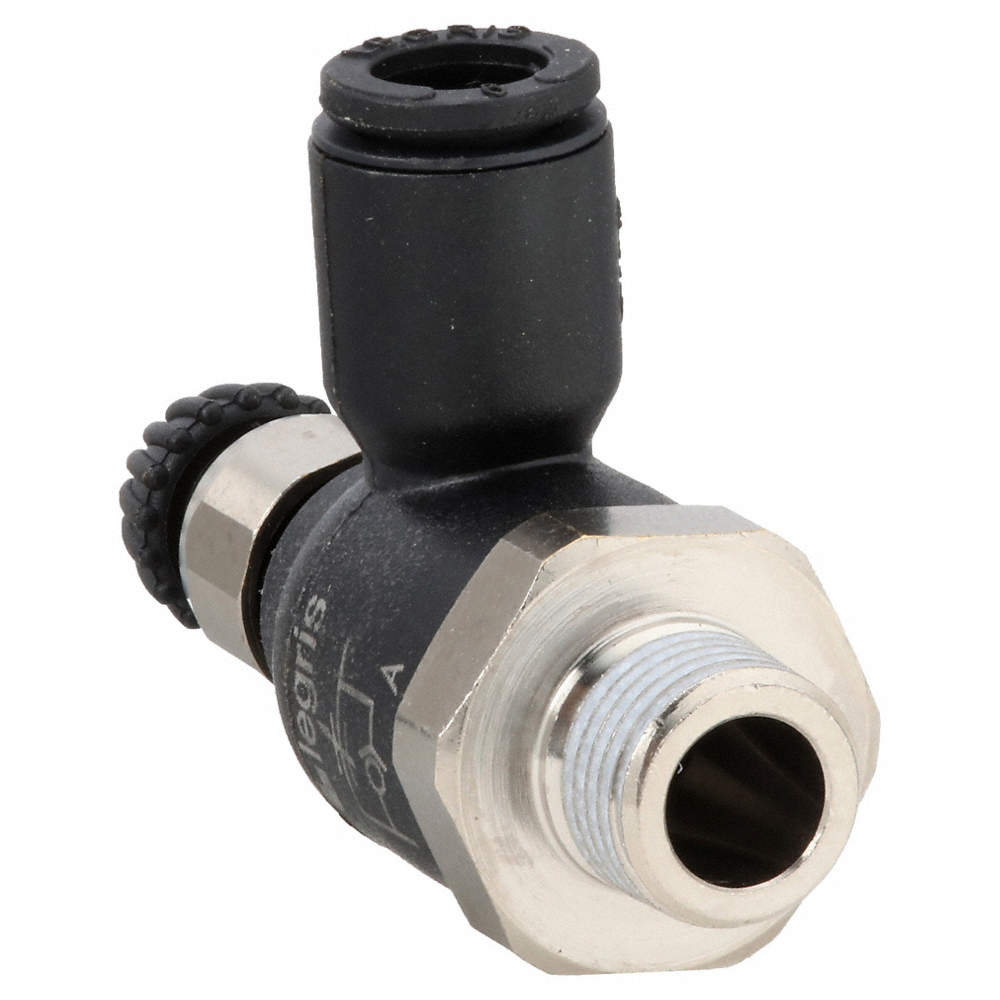

Legris 70650610 Compact Meter-Out Flow Control

Product Description

Legris 70650610 is a compact meter-out flow control used for controlling the speed of pneumatic cylinders. This flow control valve mounts directly on cylinders and allows intake air to flow freely, while exhaust air is metered out through an adjustable screw.

• One-piece construction for durability
• Push-to-connect fitting integrated into design
• 360-degree rotation for easy installation

Product Highlights

This flow control valve is designed for efficiency and precision in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 70650610

Technical Specifications

• Tube OD: 6 mm
• Pressure Max: 145 psi
• Pressure Min: 15 psi
• Material: Composite
• Adjustment Type: External Knob/Screw
• Male Thread Type: BSPT
• Male Thread Size: 1/8
• Temperature Range Max: 160 °F
• Temperature Range Min: 30 °F
• Direction of Flow: Meter-Out
• Configuration: 90°
• Weight: 0.046 LB
• EAN: 820099321417
