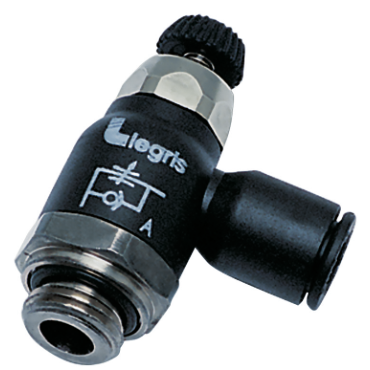

Legris 70601017 Compact Meter-Out Flow Control

Product Description

Legris 70601017 is a Compact Meter-Out Flow Control valve designed for use with pneumatic cylinders. This device allows for precise control of exhaust air flow, which in turn regulates the speed of the cylinder. The one-piece construction ensures durability and a secure connection. With a special adjustment screw, the valve simplifies flow regulation.

• Composite construction for reduced weight
• Push-to-connect fitting for easy installation
• Rotatable design for flexible assembly

Product Highlights

The valve features a 90-degree configuration with a male thread for direct tube connection, making it versatile for various applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 70601017

Technical Specifications

• Overall Height Max: 2.200 inches
• Overall Height Min: 1.870 inches
• Direction of Flow: Meter-Out
• Tube O.D.: 10 mm
• Pressure Max: 145 psi
• Pressure Min: 15 psi
• Adjustment Type: External Knob/Screw
• Connection Type: Male Thread to Tube
