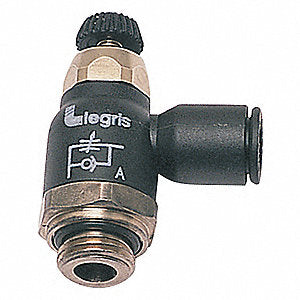

Legris 70600610 Compact Meter-Out Flow Control

Product Description

The Legris 70600610 is a compact meter-out flow control valve designed for direct mounting on cylinders. This product allows intake air to flow freely, while exhaust air is metered out effectively through a specially designed screw. By regulating the exhaust air, you can achieve precise control over the cylinder's speed.

• Compact design enables right-angle installation
• Push-to-connect fitting for easy assembly
• External knob adjustment for fine-tuning flow rates

Product Highlights

This flow control valve features a one-piece construction for enhanced durability. The tapered threads come pre-applied with thread sealant to ensure a tight fit. With a recessed screw design, it helps avoid accidental adjustments, and it can rotate a full three hundred sixty degrees to facilitate assembly.

Product Information

Standard Information

• Brand: Legris
• MPN: 70600610

Technical Specifications

• Male Thread Size: 1/8
• Orifice Size: 0.16 in
• Connection Type: Male Thread to Tube
• Cylinder Diameter: 0.64 in
• Tube OD: 6 mm
• Temperature Range: 30 °F to 160 °F
• Pressure Range: 15 psi to 145 psi
• Overall Height: 1.480 in to 1.700 in
• Overall Length: 1.030 in
• Material: Composite
• Direction of Flow: Meter-Out
