Legris 7060 06 13 Compact Meter-Out Flow Control

Brand: LEGRIS
SKU: 70600613
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

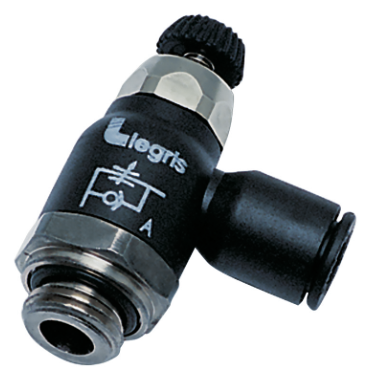

Legris 7060 06 13 Compact Meter-Out Flow Control is an effective solution for managing exhaust air from cylinders. It features a design that allows for direct mounting to cylinders. This product regulates the speed of the cylinder by controlling the exhaust air flow using a dedicated adjustment screw.

  • Compact, one-piece construction with tapered threads.
  • Push-to-connect fitting for easy installation.
  • 360-degree rotation for assembly convenience.

Product Highlights

This meter-out flow control valve is suitable for various applications and offers reliable performance in a compact size.

Product Information

Standard Information

  • Brand: Legris
  • Part Number: 7060 06 13
Technical Specifications
Inch/Metric
Metric
Male Thread Type
BSPP
Pressure (Min)
15 psi
Cylinder Diameter
0.64 in
Overall Length
1.030 in
Tube O.D.
6 mm
Overall Height (Min)
1 1/2 in
Orifice Size
0.16 in
Material
Composite
Direction of Flow
Meter-Out
Connection Type
Male Thread to Tube
Overall Height (Max)
1.720 in
Adjustment Type
External Knob/Screw
Pressure (Max)
145 psi
Temperature Range (Max)
160 °F
Temperature Range (Min)
30 °F
Weight
0.046 LB
EAN or UPC
820099320106
