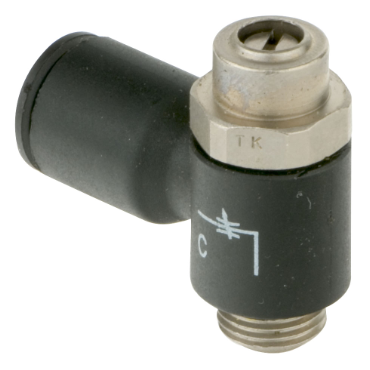

Legris 70120817 Bi-Directional Flow Control Regulator - Compact

Product Description

The Legris 70120817 is a bi-directional flow control regulator designed for precise flow management in various applications. This compact model is constructed from composite material ensuring durability and efficiency. It features a male thread connection and is suitable for tubes with an outer diameter of eight millimeters.

• Compact design for easy installation
• Slotted screw adjustment for flow control
• Compatible with 3/8 BSPP thread

Product Highlights

This regulator is ideal for systems requiring regulated flow in both directions, making it a versatile choice for HVAC and plumbing professionals.

Product Information

Standard Information

• Configuration: 90 degrees
• Material: Composite
• Connection Type: Male Thread to Tube

Technical Specifications

• Adjustment Type: Slotted Screw
• Max Pressure: 145 psi
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Male Thread Size: 3/8
• Male Thread Type: BSPP
• Tube OD: 8 mm
• Weight: 0.092 LB
• EAN or UPC: 820099318417
