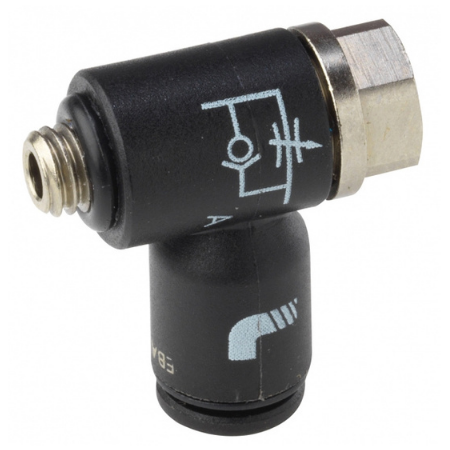

Legris 70120610 Bi-Directional Flow Control Regulator - Compact

Product Description

The Legris 70120610 is a bi-directional flow control regulator designed for compact spaces. It features a male thread to tube connection, making it suitable for multiple applications. The slotted screw adjustment allows for easy regulation of flow rates.

• Composite 90 degree male thread to tube flow regulator
• Slotted screw adjustment for precise flow control
• Bi-directional design for versatile installation

Product Highlights

This flow regulator is made from composite materials ensuring durability and reliability. It can handle a maximum pressure of one hundred forty-five psi and operates efficiently within a temperature range of thirty to one hundred sixty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Legris
• MPN: 70120610

Technical Specifications

• Temperature Range [Max]: 160 °F
• Temperature Range [Min]: 30 °F
• Male Thread Size: 1/8
• Male Thread Type: BSPP
• Connection Type: Male Thread to Tube
• Direction of Flow: Bi-Directional
• Tube OD: 6 mm
• Adjustment Type: Slotted Screw
• Material: Composite
• Pressure [Max]: 145 psi
• Configuration: 90°
• Weight: 0.042 LB
• EAN or UPC: 820099318264
