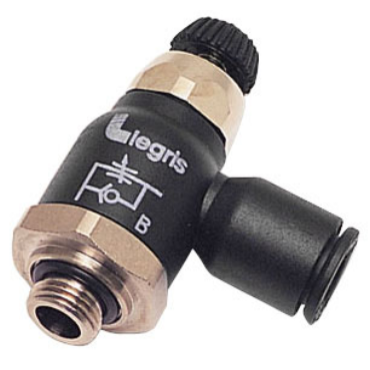

Legris 70110419 Compact Meter-In Flow Control

Product Description

Legris 70110419 Compact Meter-In Flow Control regulates air flow effectively within pneumatic systems. This component directly connects to cylinders for efficient operation. The supply air is adjusted through a precision screw mechanism while exhaust air flows freely. It is designed for single-acting cylinders.

• Composite construction for durability.
• Compact design supports right-angle installation.
• Integrated push-to-connect fitting for quick assembly.

Product Highlights

This flow control valve is ideal for managing air supply in pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 70110419

Technical Specifications

• Material: Composite
• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Max Pressure: 145 psi
• Min Pressure: 15 psi
• Tube OD: 5/32 inch, 4 mm
• Male Thread Size: M5
• Direction of Flow: Meter-In
• Adjustment Type: Slotted Screw
• Configuration: 90°
