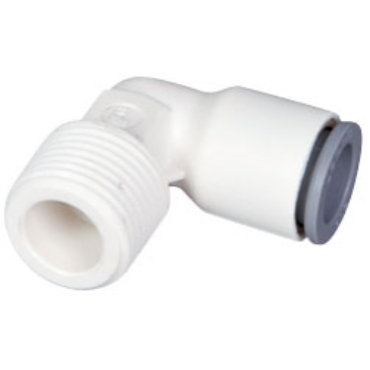

Legris 65795611WP2 LIQUIfit Push to Connect Fitting

Product Description

The Legris 65795611WP2 is a LIQUIfit Push to Connect Fitting designed for efficient fluid handling. It features a 90-degree fixed male elbow configuration, suitable for connecting 1/4 inch tubes to 1/8 inch NPT threaded ends.

• Compatible with tubing and NPT connections
• Constructed with bio-based polymer
• Temperature tolerance ranging from thirty-five degrees Fahrenheit to two hundred degrees Fahrenheit

Product Highlights

This fitting ensures secure and leak-free connections through its gripping ring technology, which prevents pumping effects.

Product Information

Standard Information

• Brand: Legris
• MPN: 65795611WP2

Technical Specifications

• Height: twenty-two millimeters
• Overall Length: eighteen millimeters
• End Types: Tubing & NPT
• No. of Ends: 2
• Temperature Range Max: two hundred degrees Fahrenheit
• Temperature Range Min: thirty-five degrees Fahrenheit
• Fitting Angle: ninety degrees
• Fitting Description: 90-degree Fixed Male Elbow
• Tube O.D.: 1/4 inch
• End Size: 1/4 Tube
• Body Material: Bio-Based Polymer
• Thread Size: 1/8 inch (NPT)
• Weight: 0.004 pounds
• EAN or UPC: 820099925660
