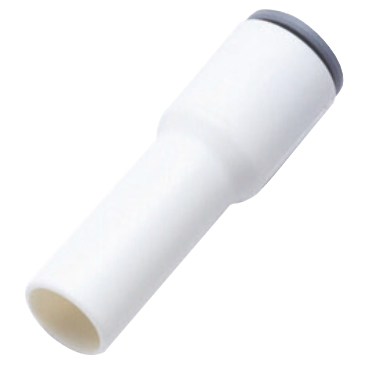

Legris 63665660WP2 LIQUIfit Push to Connect Fitting

Product Description

The Legris LIQUIfit Push to Connect Fitting with MPN 63665660WP2 is designed for quick and reliable connections in fluid systems. This fitting serves as a union reducer, transitioning from three-eighths inch tubing to one-quarter inch tubing efficiently.

• Union reducer for versatile applications
• Constructed from bio-based polymer for sustainability
• Temperature range from thirty-five degrees Fahrenheit to two hundred degrees Fahrenheit

Product Highlights

Ideal for use in various fluid transport systems, this fitting provides a secure seal and easy installation.

Product Information

Standard Information

• Part Number: 101644582
• Brand: Legris

Technical Specifications

• No. of Ends: 2
• Fitting Description: Reducer
• Overall Length: 41 mm
• Body Material: Bio-Based Polymer
• End Size: 1/4 Tube(f)
• End Types: Tubing
• Fitting Angle: Straight
• Temperature Range [Min]: 35 °F
• Temperature Range [Max]: 200 °F
• Tube O.D. 1: 1/4 in
• Tube O.D. 2: 3/8 in
• Size Type: Fractional Sizes
• Weight: 0.081 LB
• EAN or UPC: 820099873114
