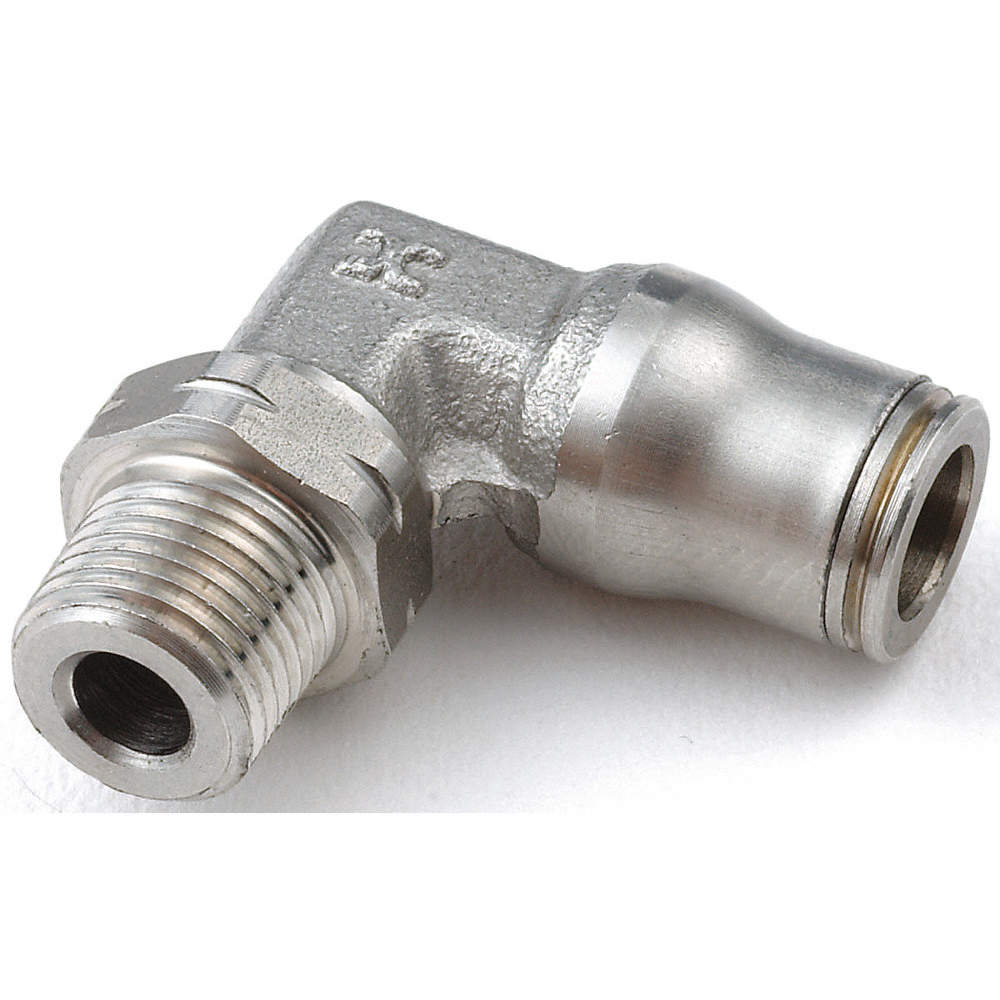

Legris 38890813 Push to Connect Fitting

Product Description

The Legris 38890813 is a push to connect fitting designed for fluid connections, especially in aggressive or corrosive environments. It features a body and threaded components made from 316 stainless steel and elastomer seals made from Viton for enhanced durability. This fitting allows for tight, leak-free connections by simply pushing the tubing into a patented stainless steel gripping ring, making both connection and disconnection simple and tool-free. The fitting is also reusable, and compatible with nylon, polyurethane, Teflon, copper, or stainless steel tubing.

• Male elbow design for effective fluid routing
• Rotates three hundred sixty degrees for ease of assembly
• Max working pressure of two hundred ninety psi

Product Highlights

This fitting is ideal for use in hygienic or sterile areas, providing reliable connections for various applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 38890813

Technical Specifications

• Body Material: 316 Stainless Steel
• Fitting Angle: 90 degrees
• Thread Type: BSPT
• Thread Size: 1/4
• No. of Ends: 2
• Max Working Pressure: 290 psi
• Working Temperature: -4 °F to 245 °F
• Tube O.D.: 5/16 inches, 8.000 mm
