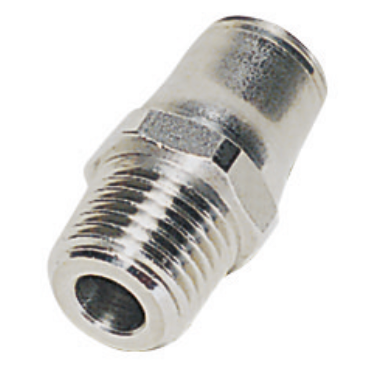

Legris 38051013 Push to Connect Fitting

Product Description

The Legris 38051013 is a push to connect fitting designed for efficient connections. It is built for a maximum working pressure of 290 psi and can operate in temperatures ranging from -4 degrees Fahrenheit to 175 degrees Fahrenheit.

• Max working pressure: 290 psi
• Temperature range: -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Thread sealant pre-applied

Product Highlights

This fitting is ideal for applications requiring reliable connections in various environments.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102095516

Technical Specifications

• Fitting Angle: Straight
• Tube O.D.: 10.000 mm
• End Types: Tubing & BSPT
• End Size: 1/4 BSPT(m), 10 mm Tube(f)
• Thread Size: 1/4
• Material: 316 Stainless Steel
• No. of Ends: 2
• Fitting Description: Male Connector
• Size Type: Metric Tube x BSPT Threads
• Thread Type: BSPT
• Weight: 0.066 LB
• EAN or UPC: 820099289489
