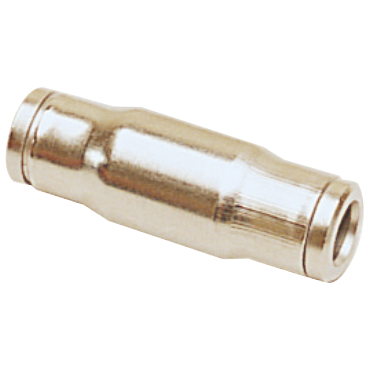

Legris 36060600 Push to Connect Fitting

Product Description

The Legris 36060600 is a push to connect fitting designed for quick and efficient tubing connections. With a maximum working pressure of four hundred thirty-five psi, it is suitable for a variety of applications. This fitting operates effectively within a temperature range of negative four degrees Fahrenheit to three hundred two degrees Fahrenheit.

• Union for six millimeter tube
• Easy installation with push to connect design
• Made from nickel-plated brass, FDA approved

Product Highlights

This fitting is ideal for use in pneumatic applications and offers reliable and stable performance.

Product Information

Standard Information

• Brand: Legris
• MPN: 36060600

Technical Specifications

• Fitting Description: Straight Union
• No. of Ends: 2
• Overall Length: 36.5 mm
• Tube O.D.: 6.000 mm
• Fitting Angle: Straight
• End Size: 6 mm Tube(f)
• Size Type: Metric, Equal
• Body Material: Nickel-Plated Brass - FDA Approved
• End Types: Tubing
• Weight: 0.037 LB
• EAN or UPC: 820099277332
